Touch Screen; Overview - Planmeca ProMax 3D Max with ProTouch Technical Manual

2.2 Touch screen

2.2.1 Overview

Technical manual

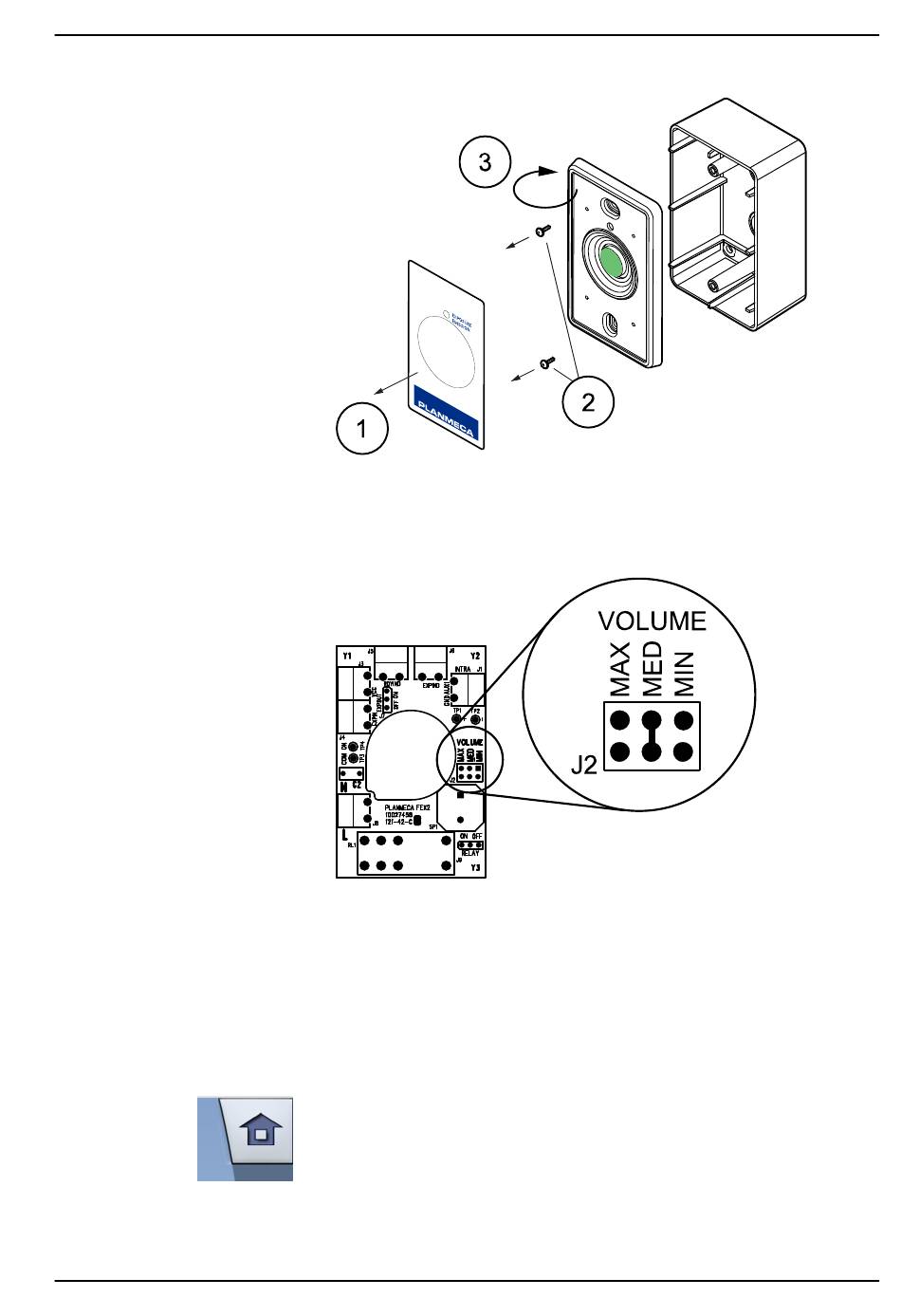

2. Remove the wall exposure switch cover.
2.a. Remove the front sticker (1).
2.b. Unscrew the two cover attachment screws (2).
2.c. Rotate the cover (3) to access the PCB.
3. Set the dip switch (J2) on the PCB to adjust the desired volume level.
MAX Maximum volume level
MED Medium volume level
MIN Minimum volume level
4. Attach the wall exposure switch cover.
NOTE
Do not use sharp objects to operate the touch screen.
To return to the main view from another screen, select the home button at
the top corner of the screen.
