5 Panoramic and 3D calibrations
Special calibration tools for X-ray units with 120 kV tube head
Planmeca Device tool
102
Planmeca ProMax 3D Max
•

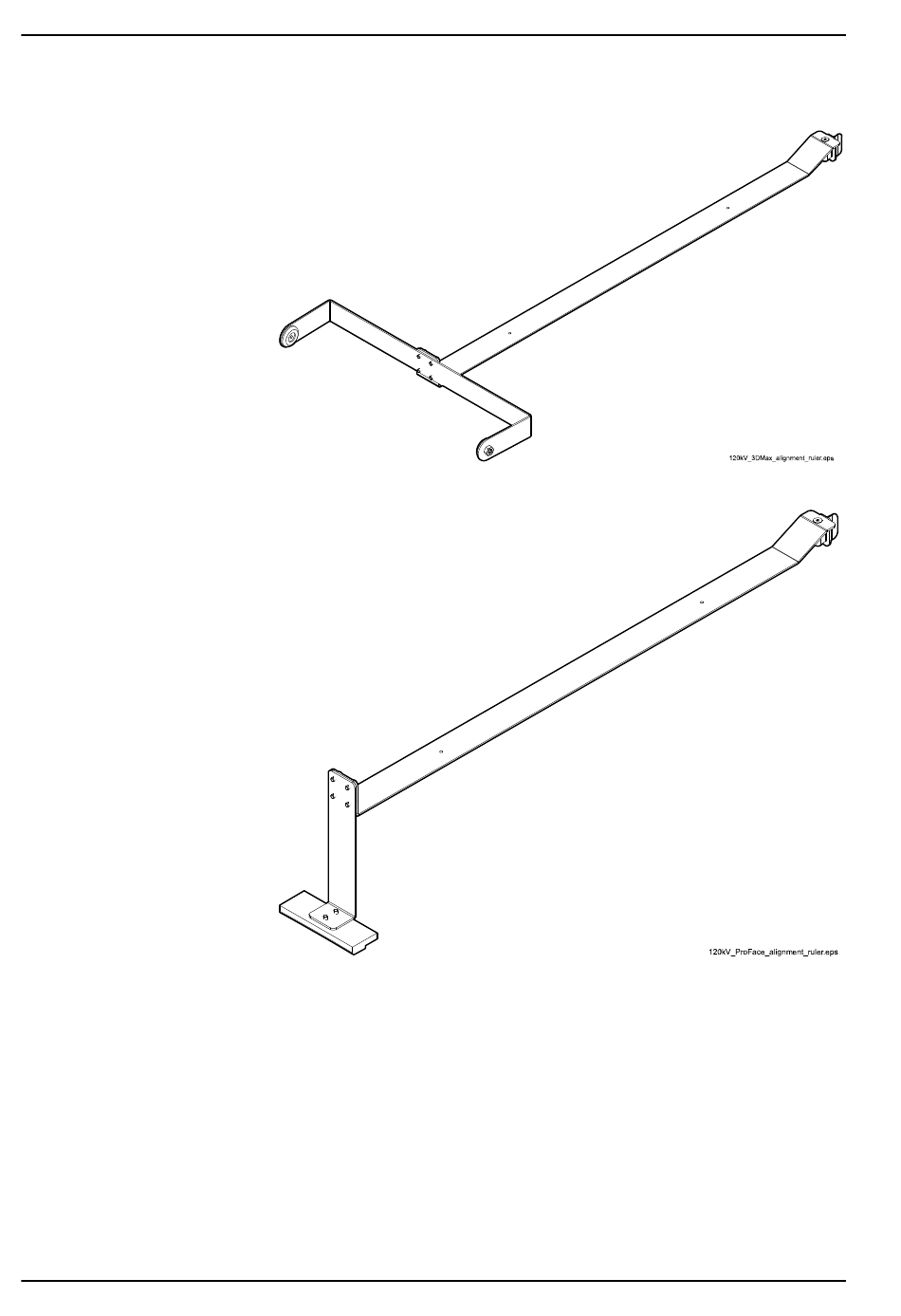

Max alignment ruler (part number 10039425)
•
Max ProFace alignment ruler (part number 10039426)
NOTE
The alignment rulers are optional for Planmeca ProMax 3D Max units from
Planmeca ProMax software revision 3.8.0.0.R onwards.
The Planmeca Device tool is needed for calibration tasks. The Planmeca
Device Tool manual (publication number 10031558) should be used in
conjunction with this manual.
Technical manual
