2.7 Input connections

Technical manual

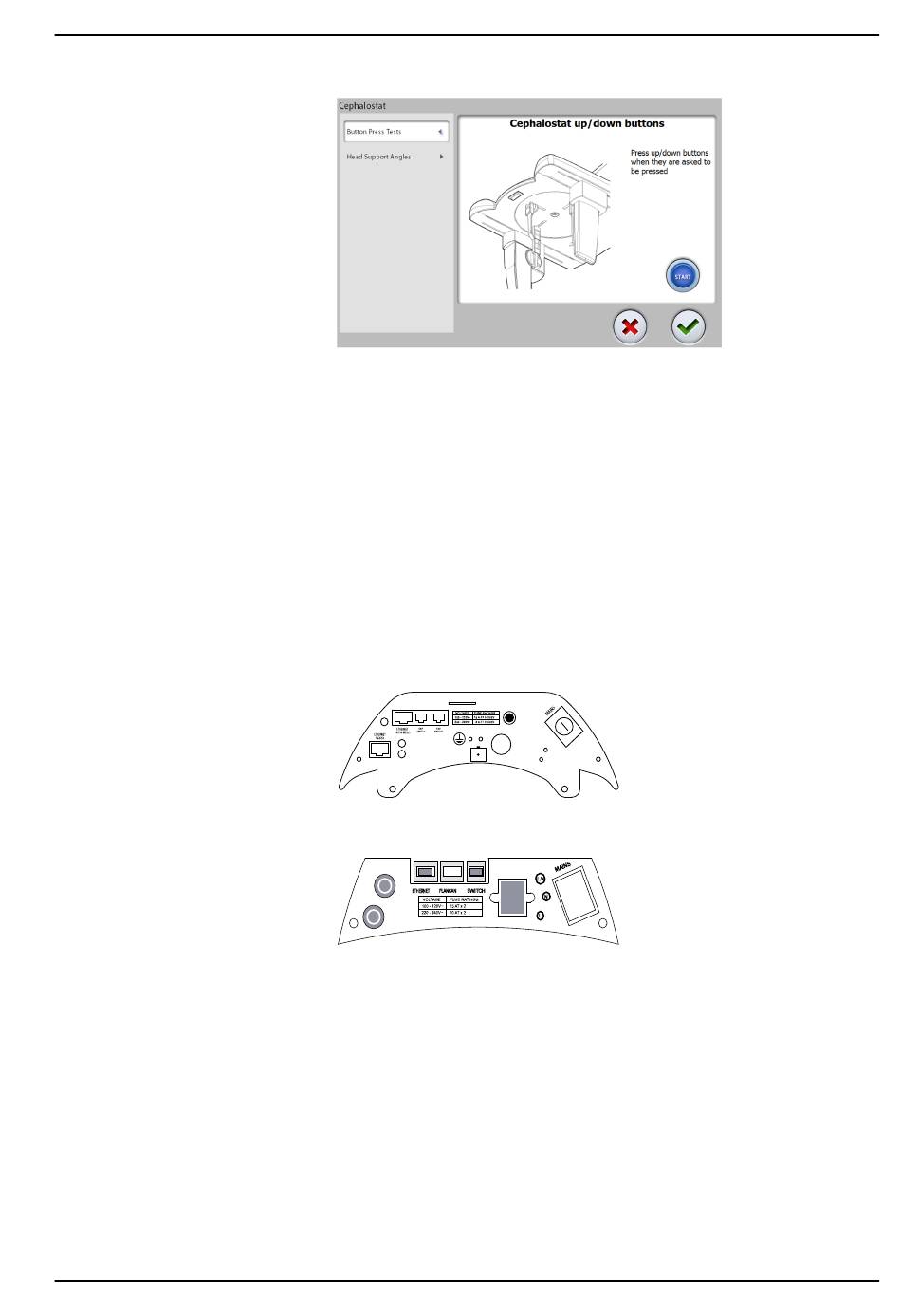

7. Select the Cephalostat (3536).
7.a. Select the Button Press Tests and touch the Start button.
The test checks the button contacts, press the up/down buttons
when asked.
7.b. Select the Head Support Angles.
Turn the head support to 180 degrees position and touch the
Verify Angle button.
7.c. Touch the green check mark button when ready.
The Planmeca ProMax X-ray unit can be equipped with two different type of
input module (on the underside of the stationary column top).
• "Input connections (INP2)" on page 74 (input module type in the figure
below)
• "Input connections (Ed2/Ed3)" on page 74 (input module type in the
figure below)
2 User interface
Planmeca ProMax 3D Max 73
