5 Panoramic and 3D calibrations
5.3.9.2 Adjusting layer light position
Steps
144 Planmeca ProMax 3D Max
1. Enter the calibration mode.
1.a. Touch the service spanner on the Main display.
1.b. Touch Technical and enter password (1701).
1.c. Touch Calibrations (3200).
2. Select Layer Calibration (3220).

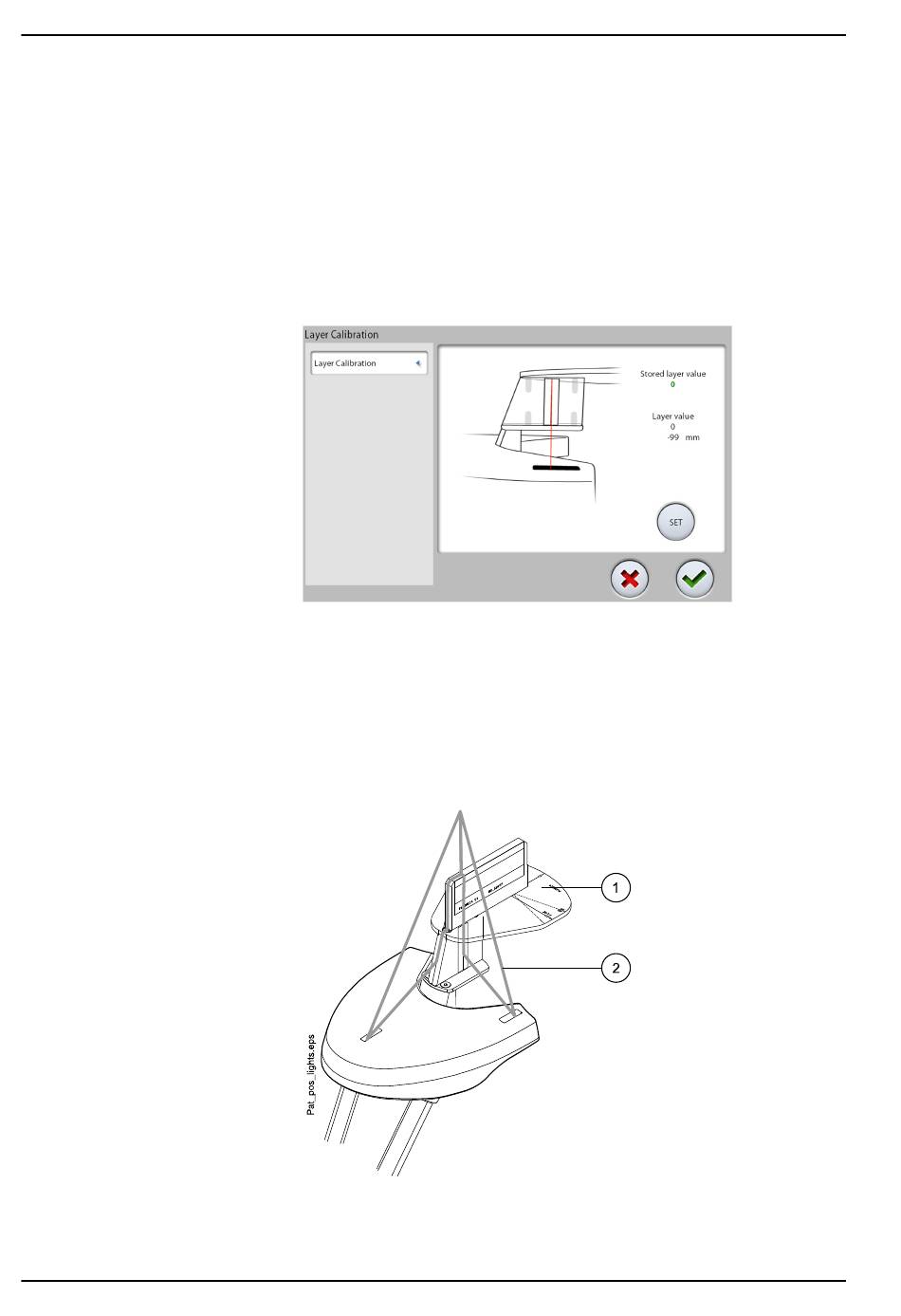

The layer calibration display appears.
3. Move the thumb wheel of the layer light slightly to switch the three
patient positioning lights on.
The layer light thumb wheel is located on the underside of the patient
support table.
4. Move the layer light beam so that it is on the black reference line on the
side of the ball phantom.
Accept the new layer light zero position by touching SET button and exit
the calibration mode by touching the green check mark button.
1 Ball phantom
2 Layer light beam
