Planmeca ProMax 3D Max with ProTouch Technical Manual page 20

1 General and technical data
1.5.11.14 Target material of the X-ray tube
1.5.11.15 Reference axis to which the target angle and the focal spot characteristics of
the X-ray tube refer
1.5.11.16 Target angle with respect to the reference axis
1.5.11.17 Filtration in terms of quality equivalent filtration of the X-ray tube

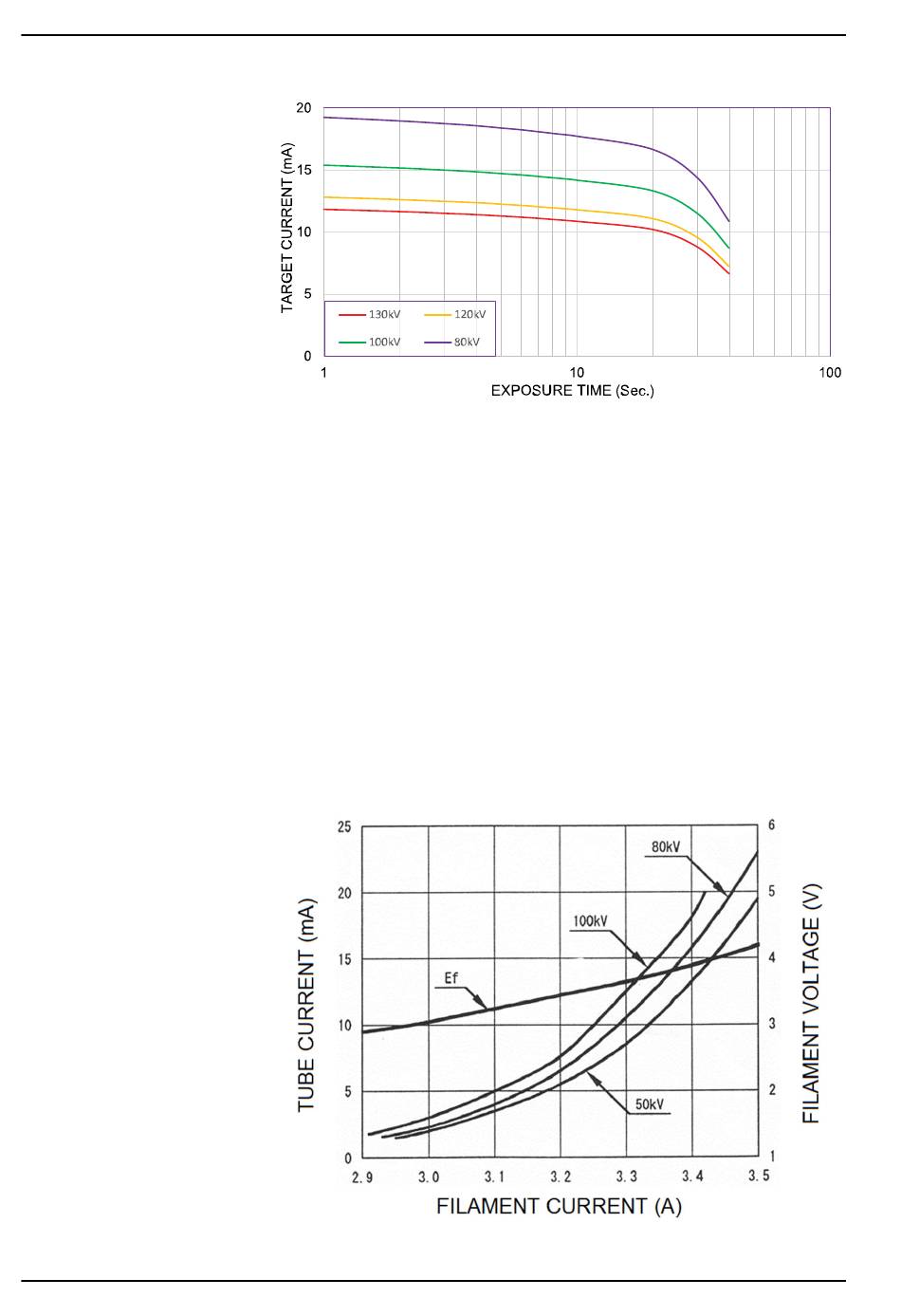

1.5.11.18 Emission and filament characteristics of the X-ray tube
14 Planmeca ProMax 3D Max
• SXR 130-10-0.5 SC:
Tungsten anode
90° with respect to the anode-cathode axis
12°
Inherent filtration at least 0.8 Al/50 kV according to IEC 522/1976
• D-067SB:
Technical manual
