7 Column adjustments

7.3 Setting column maximum height

184 Planmeca ProMax 3D Max
5. If needed, calibrate the lift motor sensor.

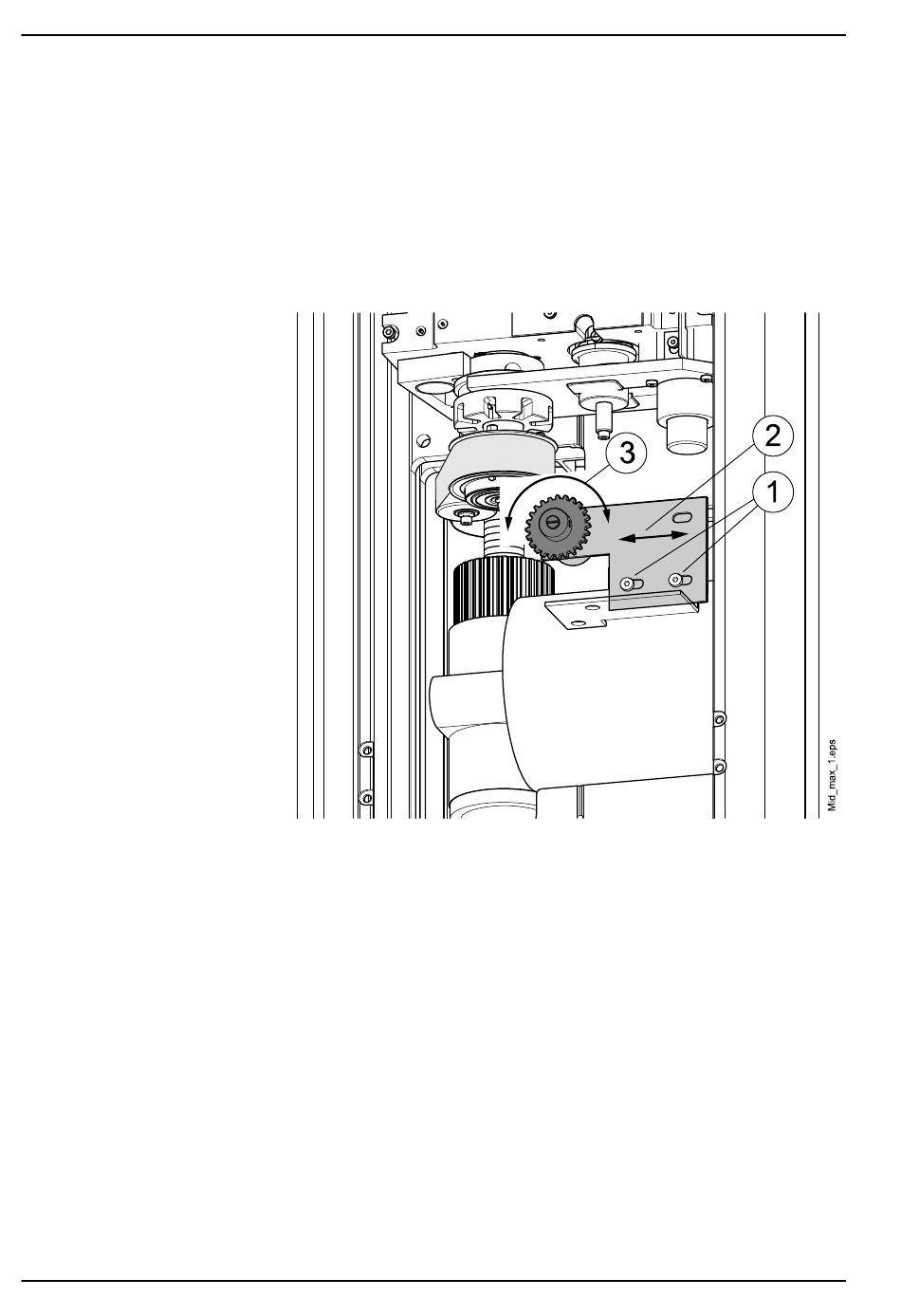

1. Loosen two attachment screws (1) of the cog wheel assembly.
2. Move the assembly (2) away from the worm screw so that you can
rotate the cog wheel (3) freely.
3. Rotate the cog wheel (3) until the value in the Sensor value field
turns green (close to zero) in the Lift Calibration display.
4. Move the assembly back to its position and tighten the attachment
screws. When moving the assembly back to its position make sure
that the cog wheel is not too close to the worm screw.
6. Exit the calibration mode by touching the green check mark button. Do
NOT touch the SET button.
7. Attach the stationary column top cover.
1. Enter the calibration mode:
1. Touch the service spanner on the Main display.
2. Touch Technical and enter password (1701).
3. Touch Calibrations (3200) and select Lift Calibration (3230). The Lift
Calibration display appears.
