5.4.3.3 Adjusting alignment in x-direction
Technical manual

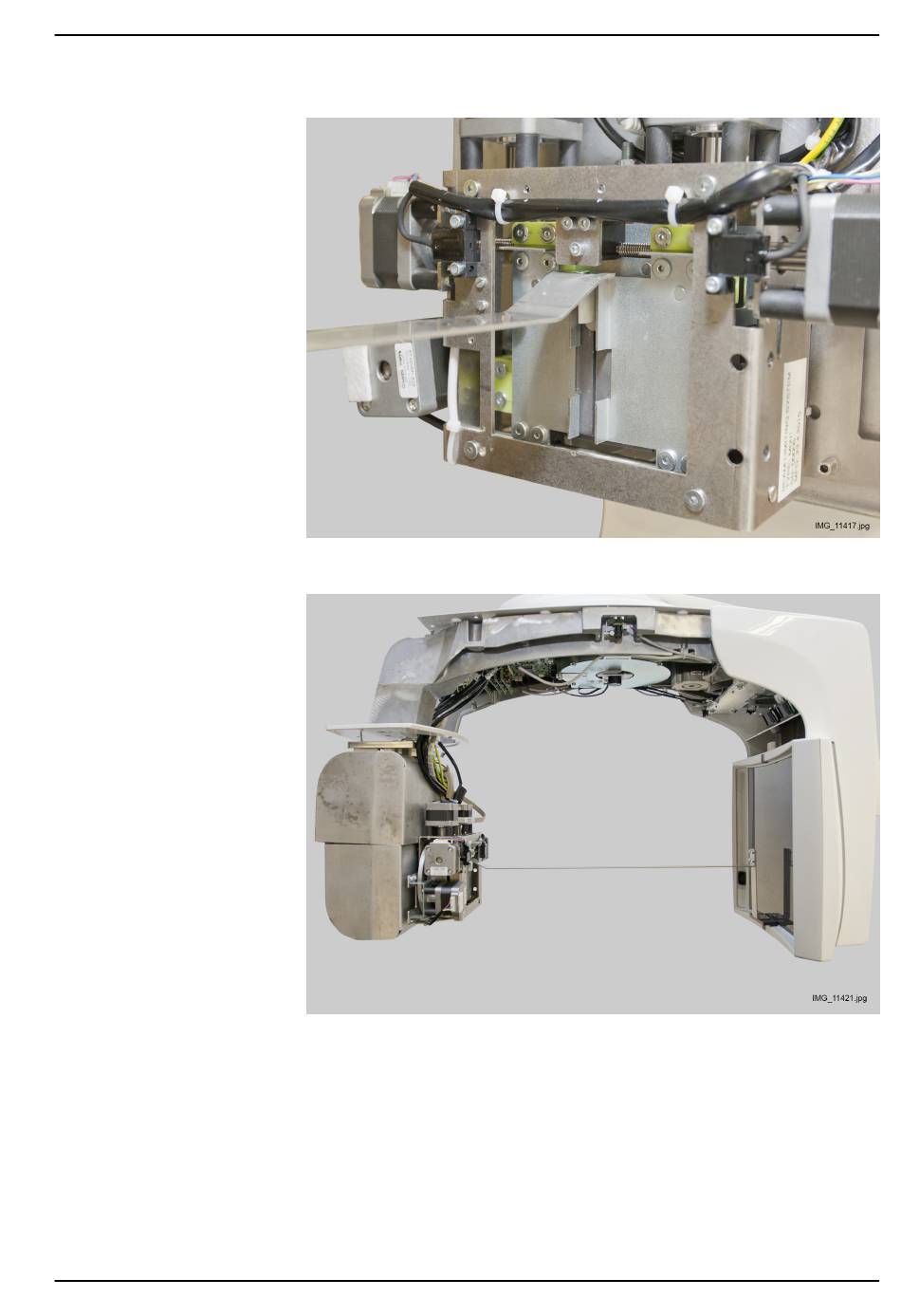

2. Position the tongue of the alignment ruler into the collimator opening
as shown in the figure below.
3. Place the other end of the alignment ruler against the sensor as
shown in the figure below.
7. Continue adjusting the patient positioning mechanism from section
"Adjusting alignment in x-direction" on page 157.
1. Lock the arms in position by using two Transportation pins (part number
00654028) as follows.
1. Slide one transportation pin through the hole in the shoulder joint so
that it goes into the positioning hole in the column.
5 Panoramic and 3D calibrations
Planmeca ProMax 3D Max 157
