8 Parts replacement and repair
8.1.5.2 Removing tube head back cover
8.1.5.3 Removing tube head front cover
198
Planmeca ProMax 3D Max

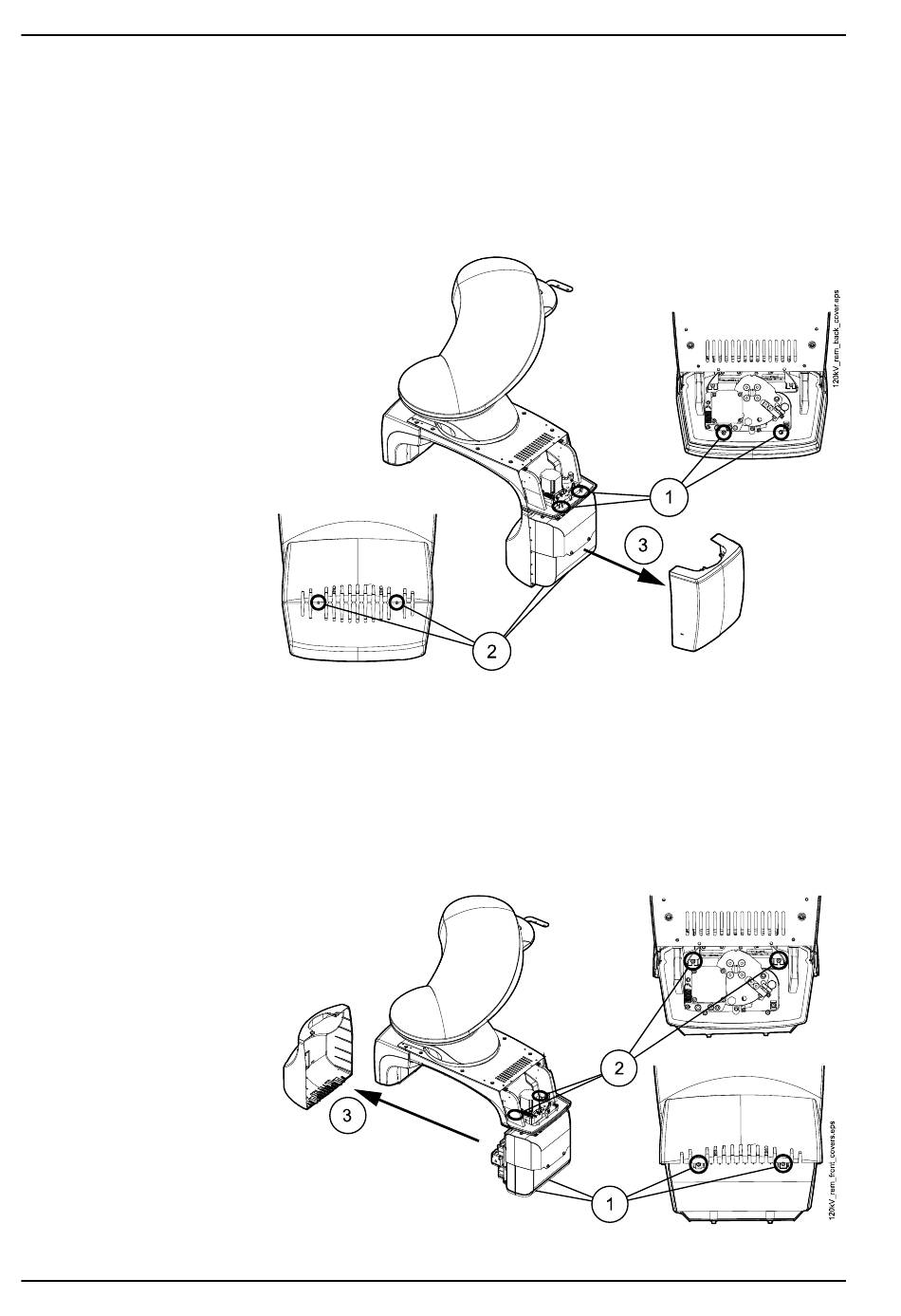

1. Loosen the two attachment screws (1) on the top of the back cover, see
the figure below.
Do not remove the screws.
2. Loosen the two attachment screws (2) on the bottom of the back cover.
Do not remove the screws.
3. Remove the back cover (3) from the tube head.
1. Loosen the two attachment screws (1) on the top of the front cover, see
the figure below.
Do not remove the screws.
2. Loosen the two attachment screws (2) on the bottom of the front cover.
Do not remove the screws.
3. Remove the front cover (3) from the tube head.
