Planmeca ProMax 3D Max with ProTouch Technical Manual page 193

1. Down
Technical manual
3. If needed, calibrate the patient support position sensor.

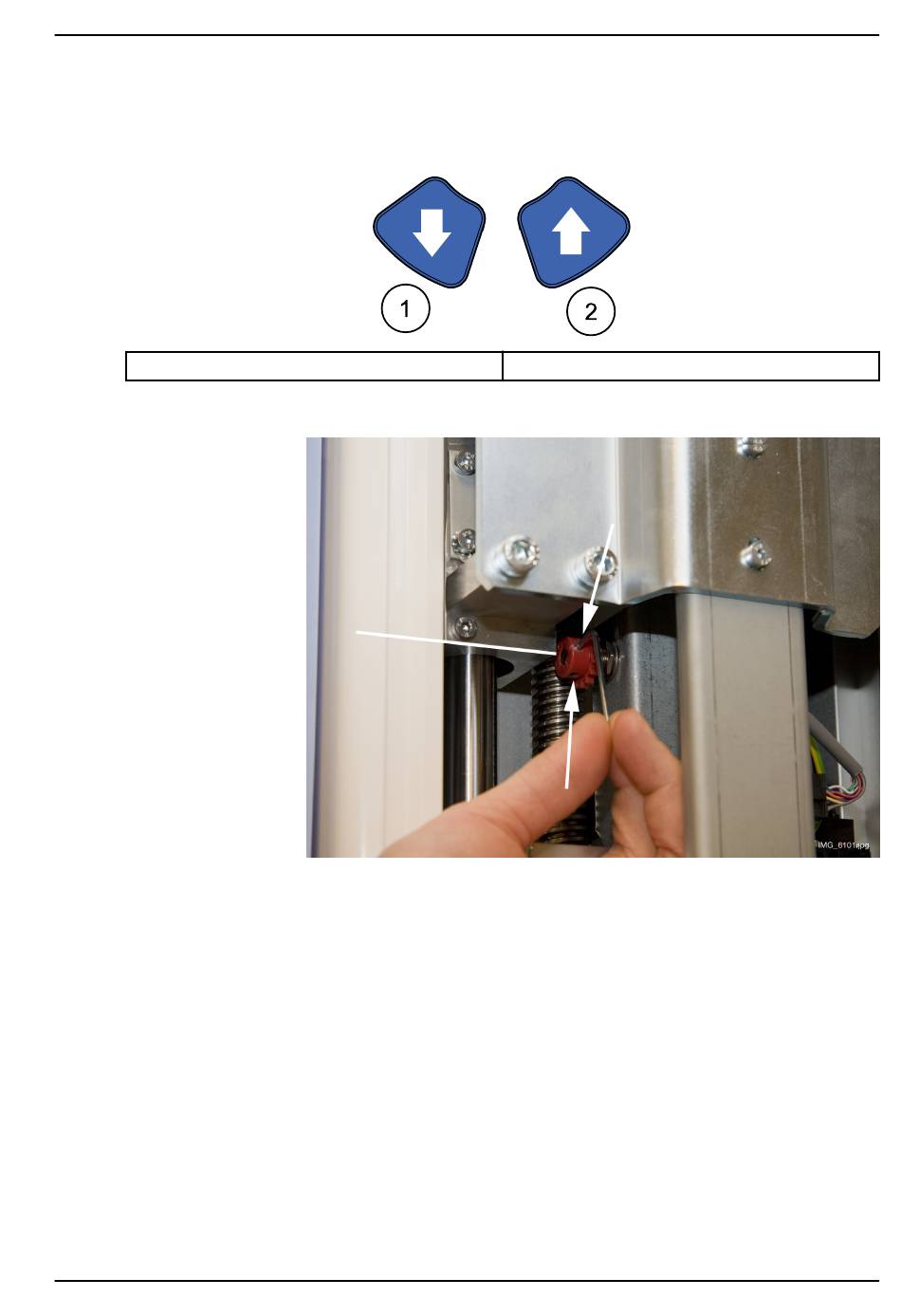

1. Drive the patient support with the height adjusting buttons so that the
carriage block lower edge (white line in the figure below) is in line
with sensor center point.
2. Loosen the two screws (white arrows in the figure below) at the side
of the cog wheel of the sensor with 2 mm Allen key.
2. Up
Planmeca ProMax 3D Max
7 Column adjustments
187
