Technical manual
1.b. Touch Technical and enter password (1701).
1.c. Touch Calibrations (3200) > Collimator Calibrations (3260).
2. Select 3D Collimator Calibration (3262).

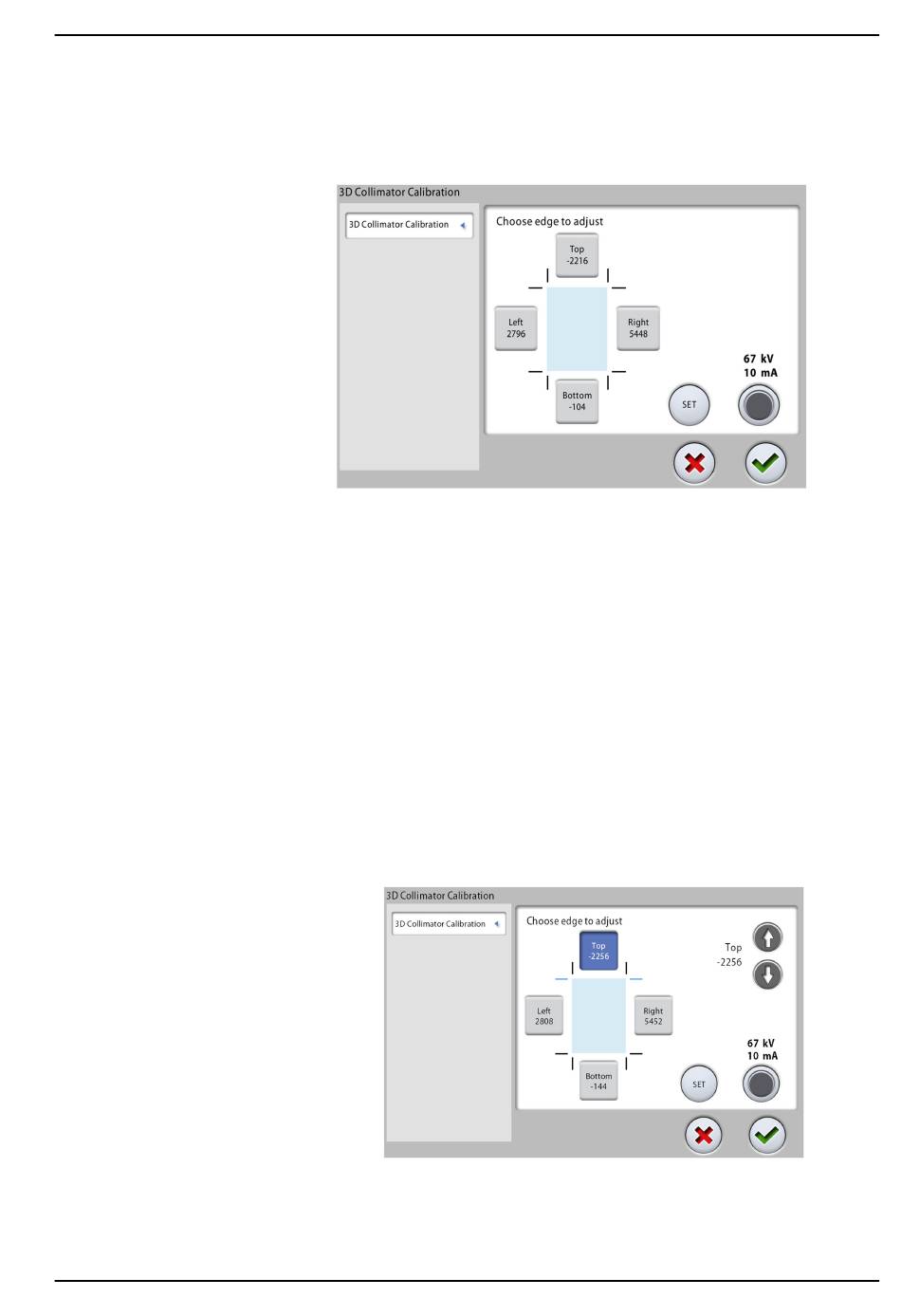

The display shown below appears.
3. Temporarily adjust all four collimator blades more narrow, so that all
borderlines of the test image will be visible in the Device tool display.
Follow the sub-steps below.
3.a. Write down the existing values of all four collimator blade settings.
3.b. One by one, touch each edge (Top, Left, Right and Bottom) button
and use the arrow buttons to adjust each blade more narrow.
Move each blade towards the center 15 touches (=60 units) as
follows:
• Activate Top button: touch 15 times (= +60 units) Down arrow
button
• Activate Left button: touch 15 times (= +60 units) Right arrow
button
• Activate Right button: touch 15 times (= -60 units) Left arrow
button
• Activate Bottom button: touch 15 times (= -60 units) Up arrow
button
