5.4.3.4 Adjusting alignment in y-direction
Technical manual
• If the alignment in X-direction is on acceptable level, continue from
the section "Adjusting alignment in y-direction" on page 163.
1. Release the C-arm locking by lifting the C-arm alignment pin.

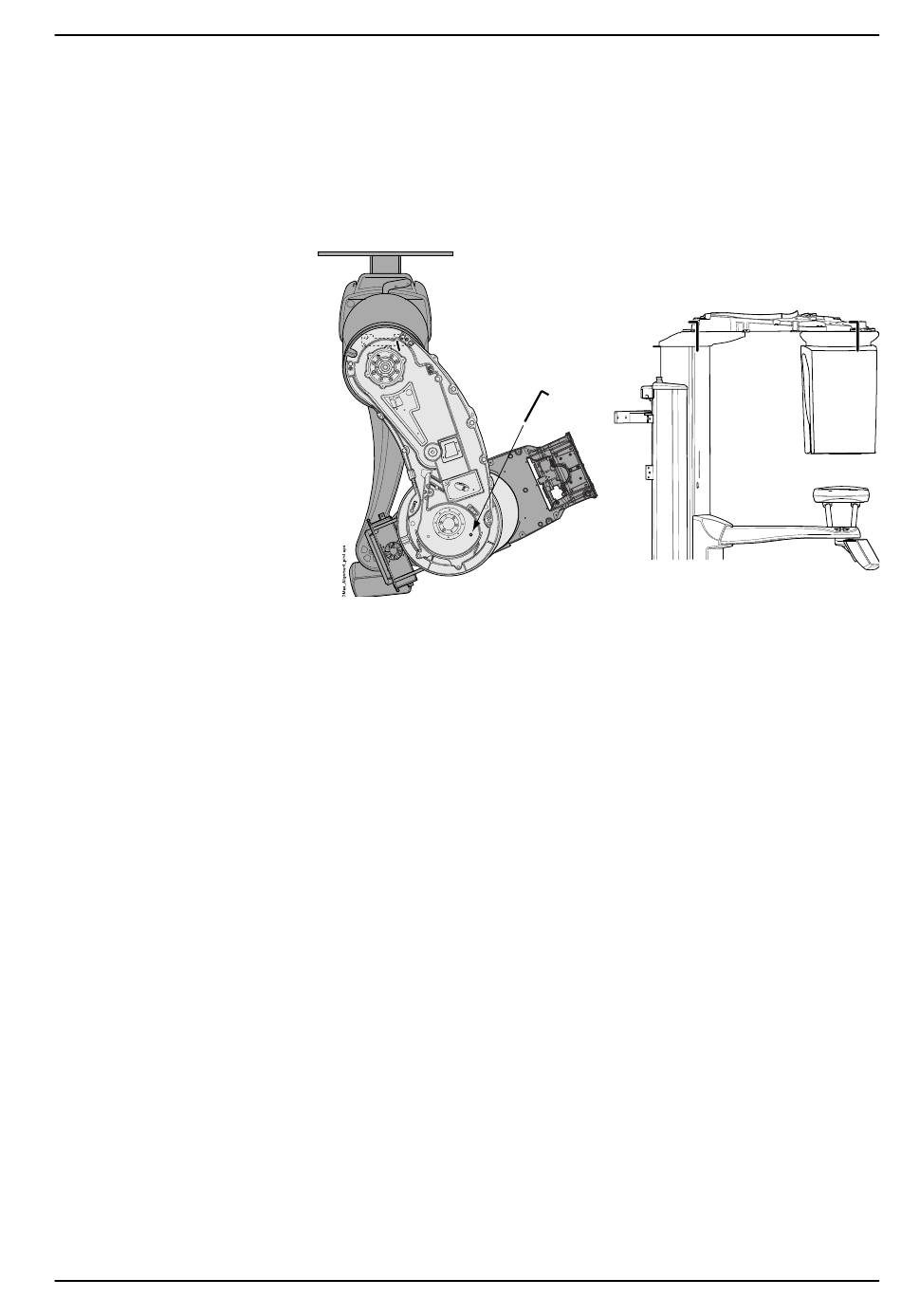

2. Manually position the C-arm as shown in the figure below (C-arm parallel
to the patient support table).
3. Relock the C-arm in position by pushing the transportation pin back in
the hole.
