5.3.3 Calibrating angle sensors

Before you begin
Steps
Technical manual

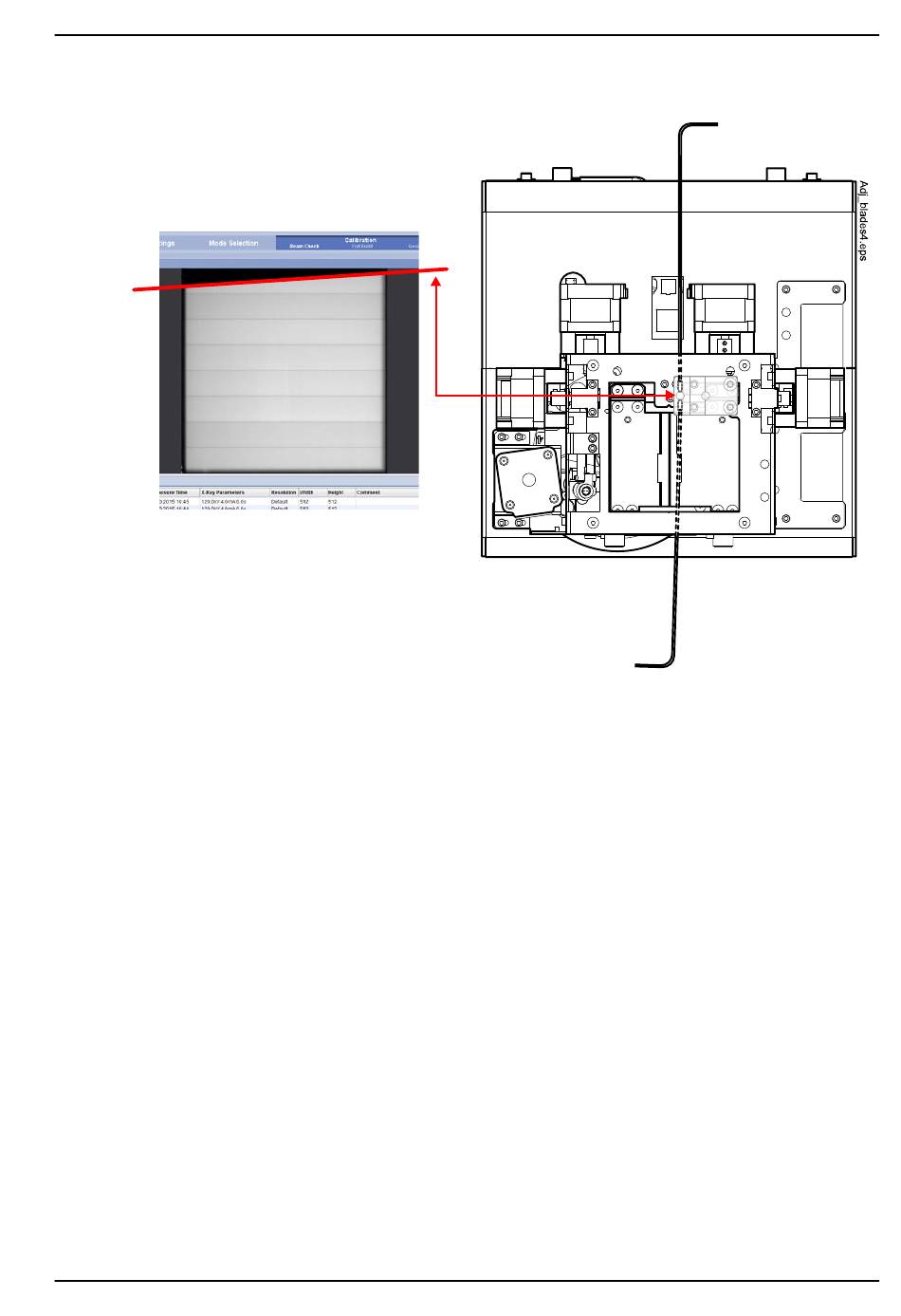

• If the upper side borderline in the test image is tilted, adjust
the upper side collimator blade angle (see the figure below).
10.c. Click the Capture button in the Device Tool to take a new beam
check test image and verify the changes.
10.d. Readjust the collimator blade angles if needed.
11. Exit the 3D Collimator Calibration (3262) screen by touching the red
cross button.
All the collimator settings should remain the original values, but it is good
to verify the values once again, by entering the 3D Collimator Calibration
(3262) menu.
Restore the original values, written down in Step 3, if needed.
12. Attach the removed covers.
Make sure that the correct tube head type and cephalostat type are set in
the X-ray unit's configuration (Technical Settings > 3100 Unit Configuration).
For more information, see section "Configuring unit settings" on page 51.
1. Enter the calibration mode.
1.a. Touch the service spanner on the Main display.
1.b. Touch Technical and enter password (1701).
5 Panoramic and 3D calibrations
Planmeca ProMax 3D Max 115
