8.2.2 Removing patient position control PCB

8.3 Replacing / upgrading software

8.4 Replacing power cable

About this task
Technical manual

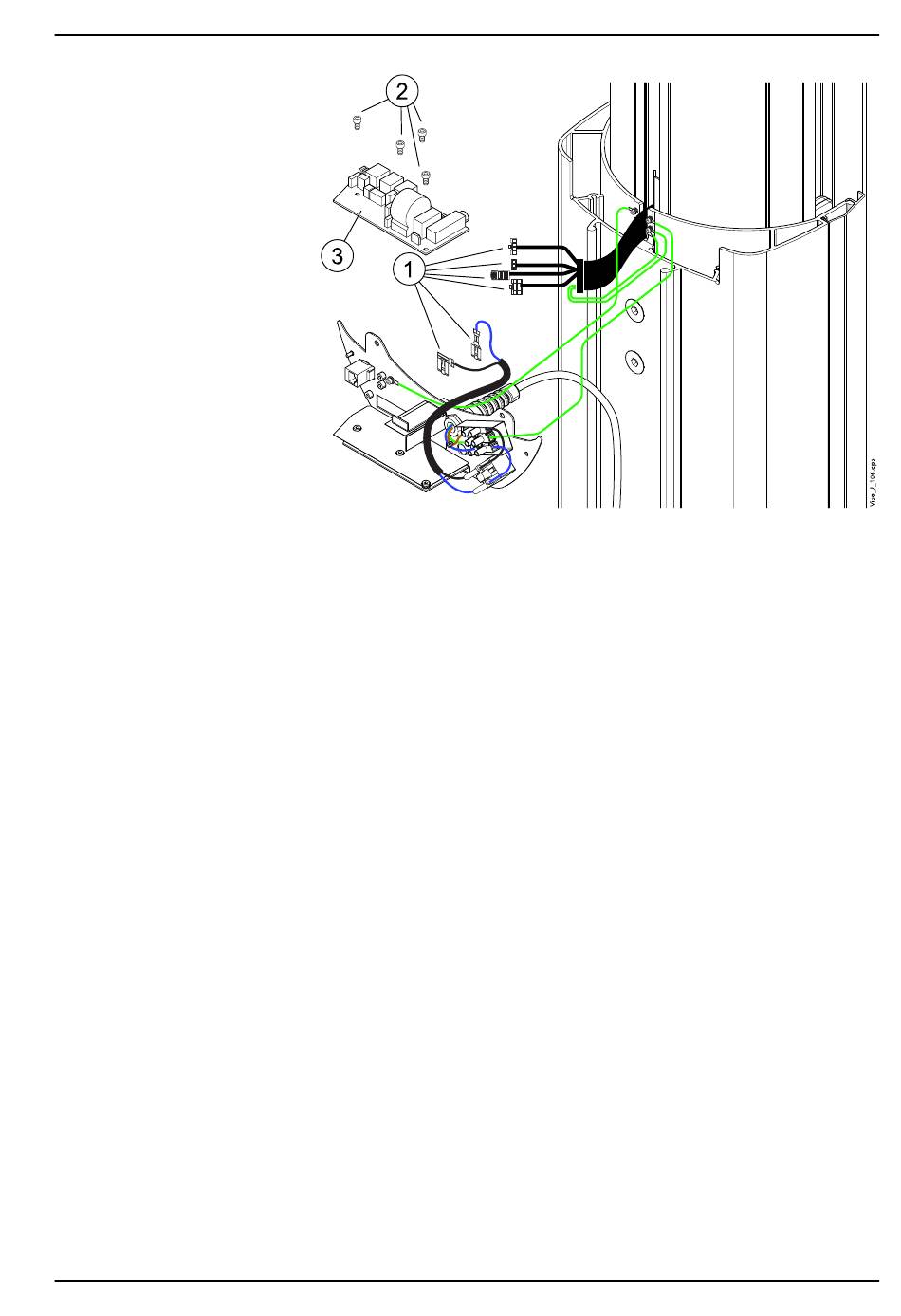

4. Disconnect all the cables that are connected to the Input PCB (1).
The cables are marked and sized to correspond with their ports. Pay
attention when reconnecting to ensure that the connections are correct.
5. Unscrew the four M4x16 DIN 912 screws with a 3mm Allen key from the
Input PCB (2) and remove the PCB (3).
6. Install the new PCB in reverse order.
NOTE
Pay close attention to the cabling setup, for more information on the
cabling setup, see section "Input connections (INP2)" on page 74.
The input PCB (INP2) layout/wiring diagram is presented in the section
"Ed3 new Input2 wiring diagram" on page 217.
For more information on patient support arm procedures, see Chapter
"Patient support arm" on page 175.
The software is loaded using the Planmeca Device tool software. Refer to
the Planmeca Device Tool manual, publication number 10031558.
The X-ray unit is delivered either with power supply cord or with permanently
installed power cable. To replace the power supply cord on X-ray units
delivered with power supply cords, disconnect the cord at either end and
replace with a new cord.
For more information on replacing the power cable on X-ray units delivered
with permanently installed power cables, refer to the following instructions.
8 Parts replacement and repair
Planmeca ProMax 3D Max 213
