Before you begin
36 Planmeca ProMax 3D Max

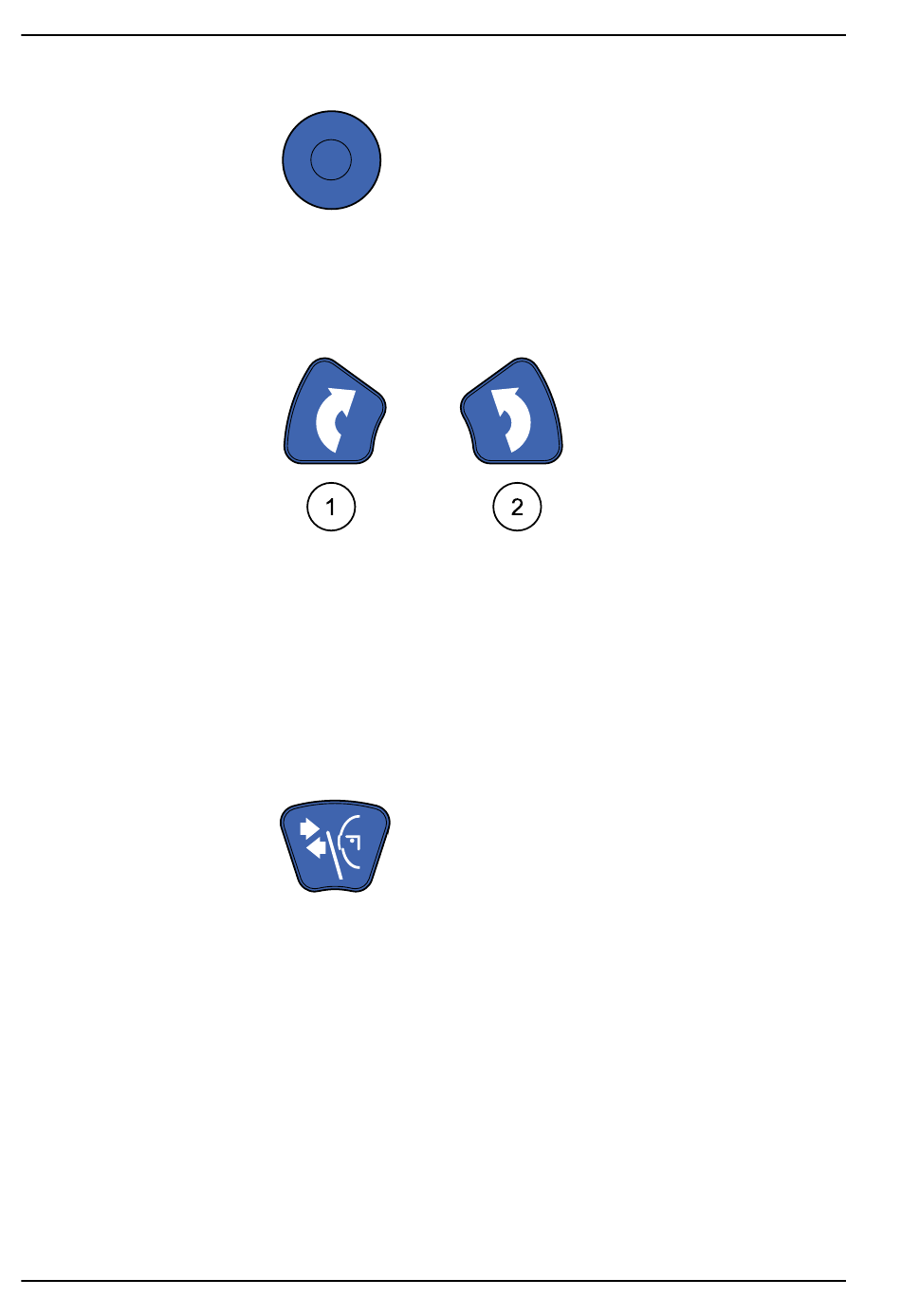

The positioning joystick is used for horizontal adjustment of the image
volume in 3D imaging. It is used when the patient is positioned in the X-ray
unit.
1 Down
2 Up
The image volume up and down buttons are used for vertical adjustment of
the image volume in 3D imaging. The buttons are used when the patient is
positioned in the X- ray unit.
The X-ray unit moves slowly when you press the up / down button. The
height of the patient support table is not changed, i.e. the patient remains in
the same position.
Press the temple support button to open the temple supports in 2D imaging.
The temple supports can be closed by pressing the temple support button
again.
NOTE
The exposure switch volume level adjusting is possible starting from version
121-43-E of the exposure PCB.
