2.1.3 Patient positioning controls

2.1.3.1 X-ray unit up / down
Technical manual

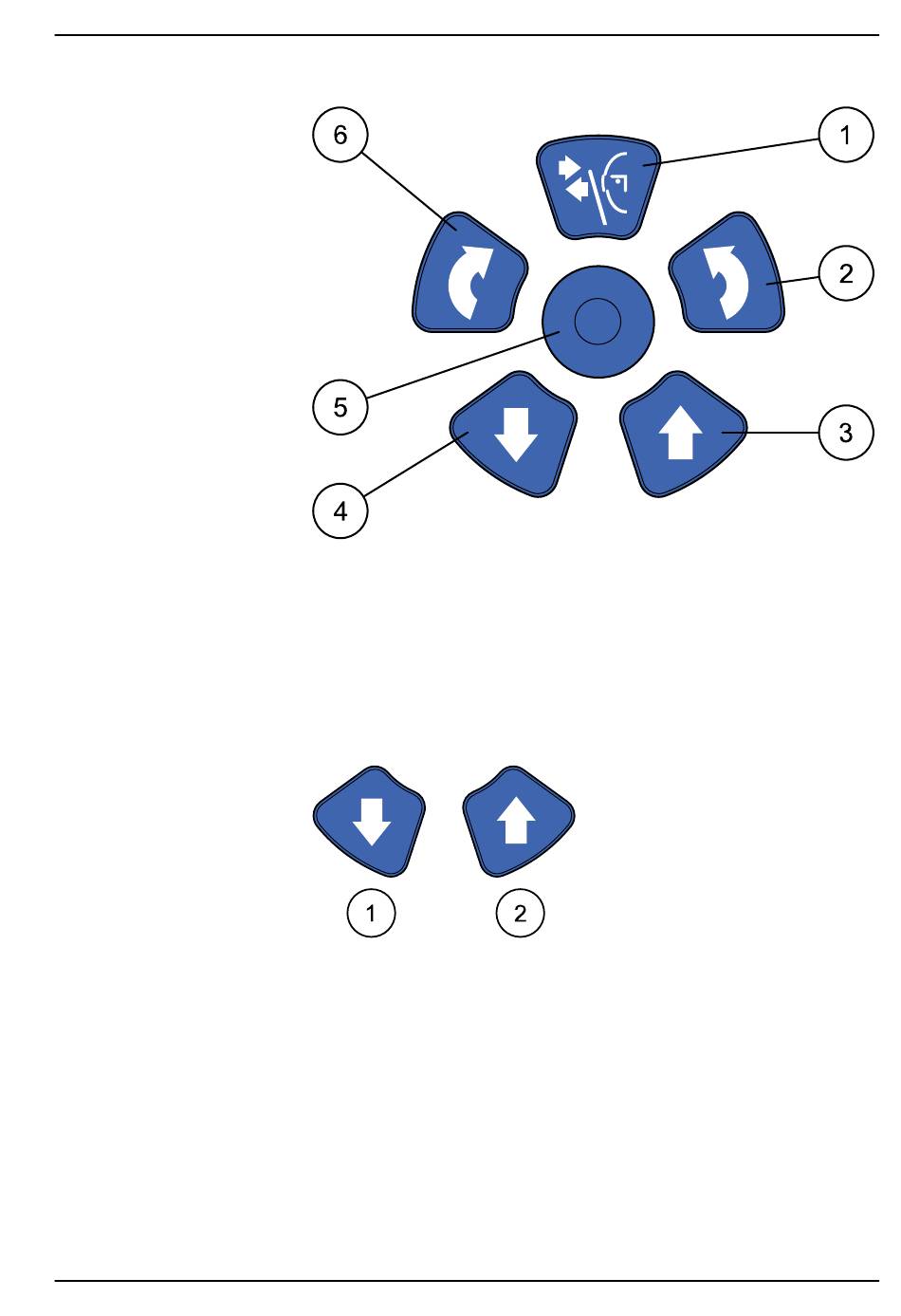

1 Open / close temple supports (2D imaging)
2 Move image volume up (3D imaging)
3 Move X-ray unit up
4 Move X-ray unit down
5 Positioning joystick
6 Move image volume down (3D imaging)
1 Down
2 Up
The X-ray unit up and down buttons are used to adjust the X-ray unit to suit
the height of the patient. The X-ray unit moves slowly at first, then faster.
