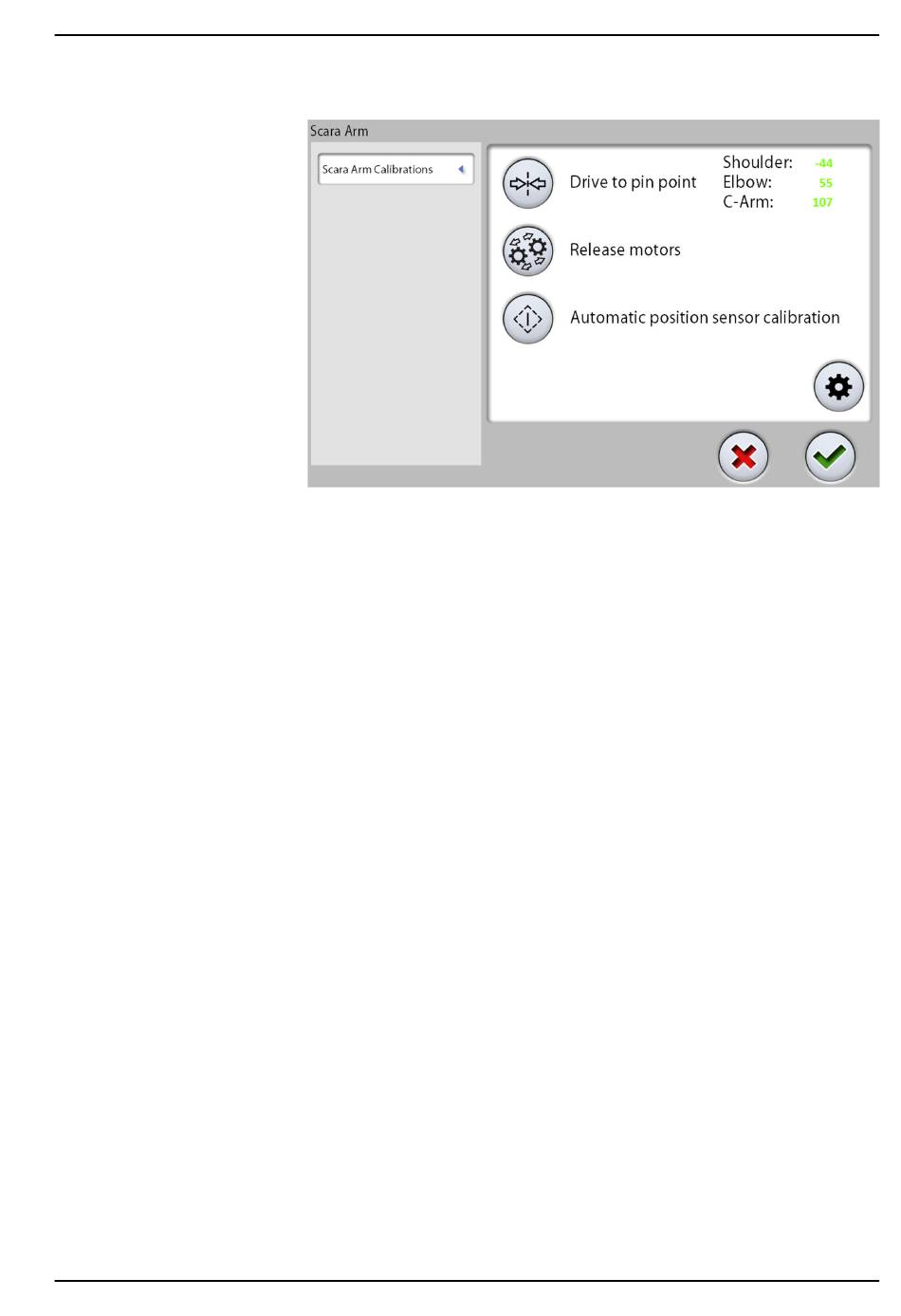

3. Touch Calibration (3200) --> Scara Arm (3250) --> Scara Arm
Calibrations (3251).
3. Touch the Drive to pin point button.
4. Switch off the X-ray unit.
5. Attach the Ball phantom (part number 30012440) into the patient
positioning mechanism adapter.
6. Remove covers:
1. Remove the shoulder arm upper cover, see section "Removing
shoulder arm upper cover" on page 199.
2. Remove the tube head front cover, see section "Removing tube head
front cover" on page 195.
3. Remove the patient support table cover, see section "Removing
patient support table cover" on page 175.
7. Position the 3D Max alignment ruler (part number 10021620), or 3D Max
ProFace aligment ruler (part number 10035695) if the sensor is equipped
with ProFace, between the collimator and sensor as follows.
5 Panoramic and 3D calibrations
Planmeca ProMax 3D Max
153
