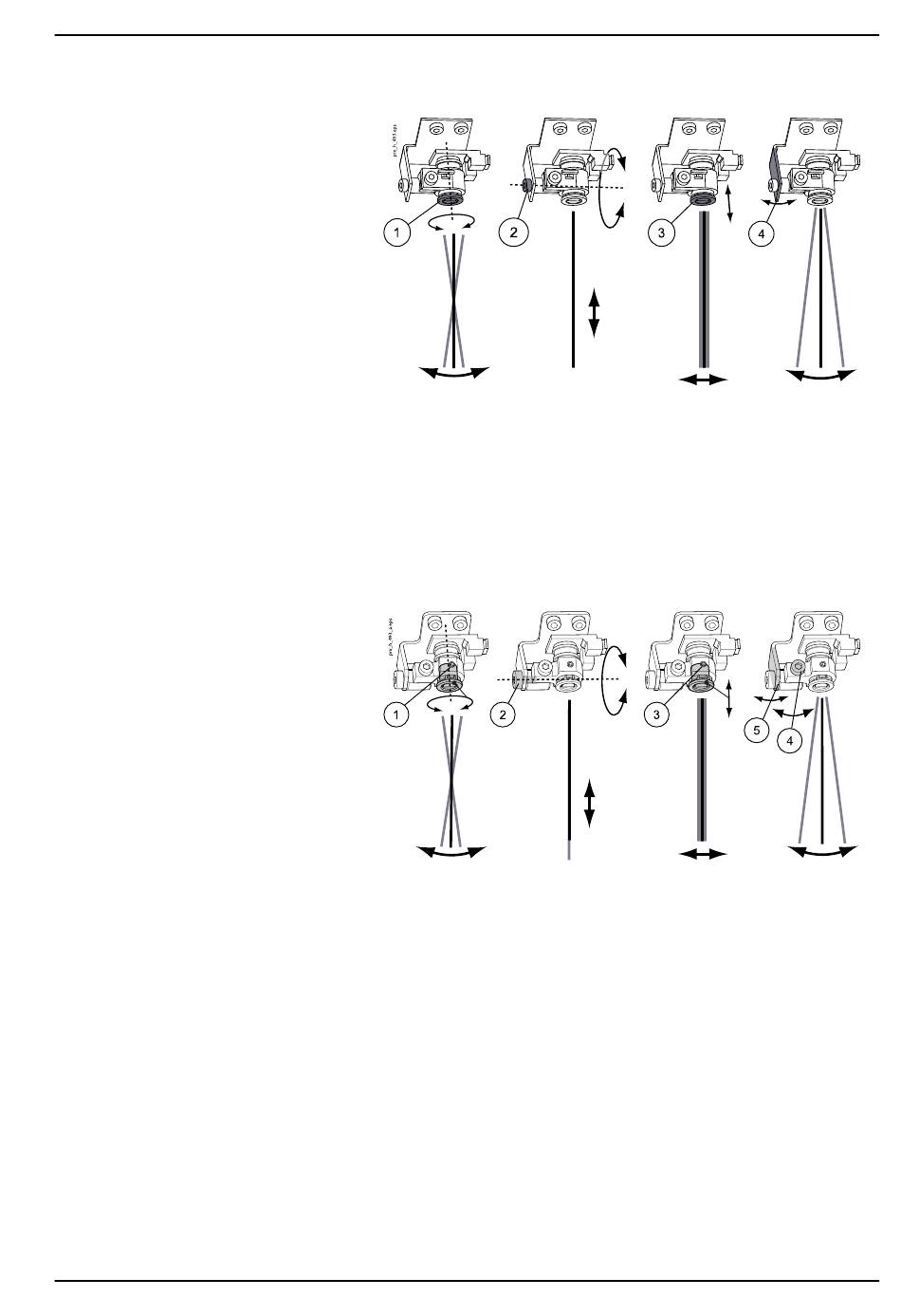

4.b. Adjusting laser lights, if revision 1 laser light assemblies are in
use.
1 To adjust the light beam angle, rotate the lens assembly of the light
(1).
2 To adjust the light beam vertical position, loosen the attachment
screw (2) of the laser light assembly and rotate the assembly.
3 To focus the light beam, adjust the depth of the lens assembly (3).
4 To adjust the light beam horizontal position, bend gently the light
attachment plate (4).
4.c. Adjusting laser lights, if revision 2 laser light assemblies are in
use.
1 To adjust the light beam angle, loosen slightly the lens attachment
screw (1) (1.5 mm Allen key) and rotate the lens assembly of the
light. After adjusting, tight gently the attachment screw.
2 To adjust the light beam vertical position, loosen the attachment
screw (2) of the laser light assembly and rotate the assembly.
3 To focus the light beam, loosen slightly the lens attachment screw
(3) (1.5 mm Allen key) and adjust the depth of the lens assembly.
After adjusting, tight gently the attachment screw.
4 To adjust the light beam horizontal position, loosen the attachment
screw (4) of the laser light assembly and rotate the assembly.
5 To fine tune the light beam horizontal position, bend gently the light
attachment plate (5).
5. Attach the patient support table cover.
