5 Panoramic and 3D calibrations
5.3.5 3D calibrations
5.3.5.1 Checking and adjusting 3D beam
3D beam check
124 Planmeca ProMax 3D Max

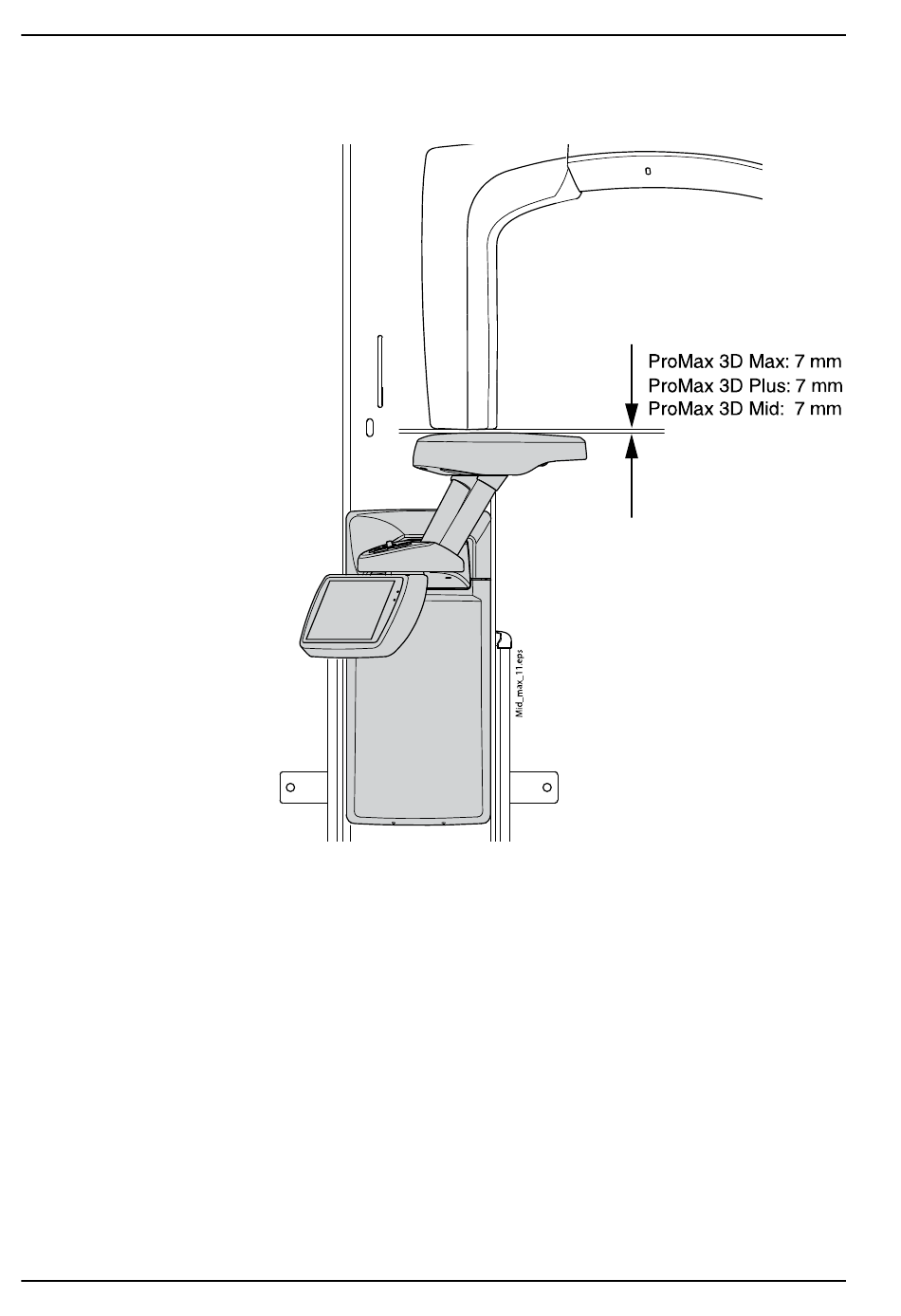

3. Move the sensor head to above the patient support table. The distance
between patient support table and sensor head must be approx. 7 mm
(0.28 in.).
4. If needed, adjust the patient positioning mechanism height:
1. First move the sensor head away from above the patient support
table.
2. Drive the patient positioning mechanism with up/down buttons until
the distance is 7 mm (0.28 in.).
3. Save the new value by touching the SET button.
5. Exit the calibration mode by touching the green check mark button.
Check the 3D beam position by taking a beam check exposure. Refer to the
Planmeca Device Tool manual, publication number 10031558.
