8.1.8.2 Removing telescopic column rear cover plates
Technical manual
Remove the two rear cover plates of the telescopic column as follows.
1. Switch the unit on and drive the telescopic column to the uppermost
position (1).
2. Switch the unit off.
3. Detach the upper inner corner of the cover plate by carefully pulling it
outwards (2).

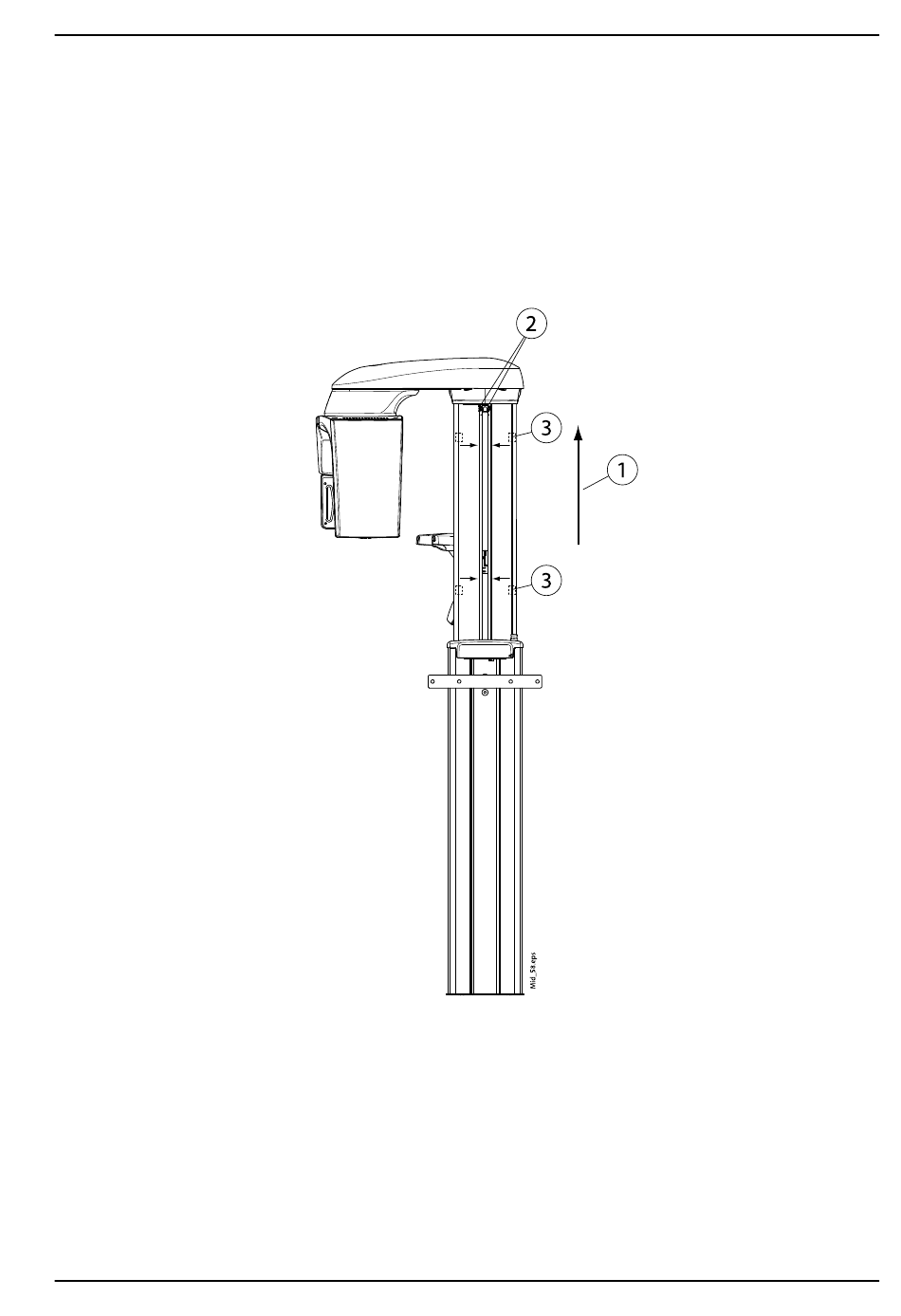

4. Detach the cover plate by pushing the cover plate inwards (see the small
arrows in the figure below) (3).
