8 Parts replacement and repair

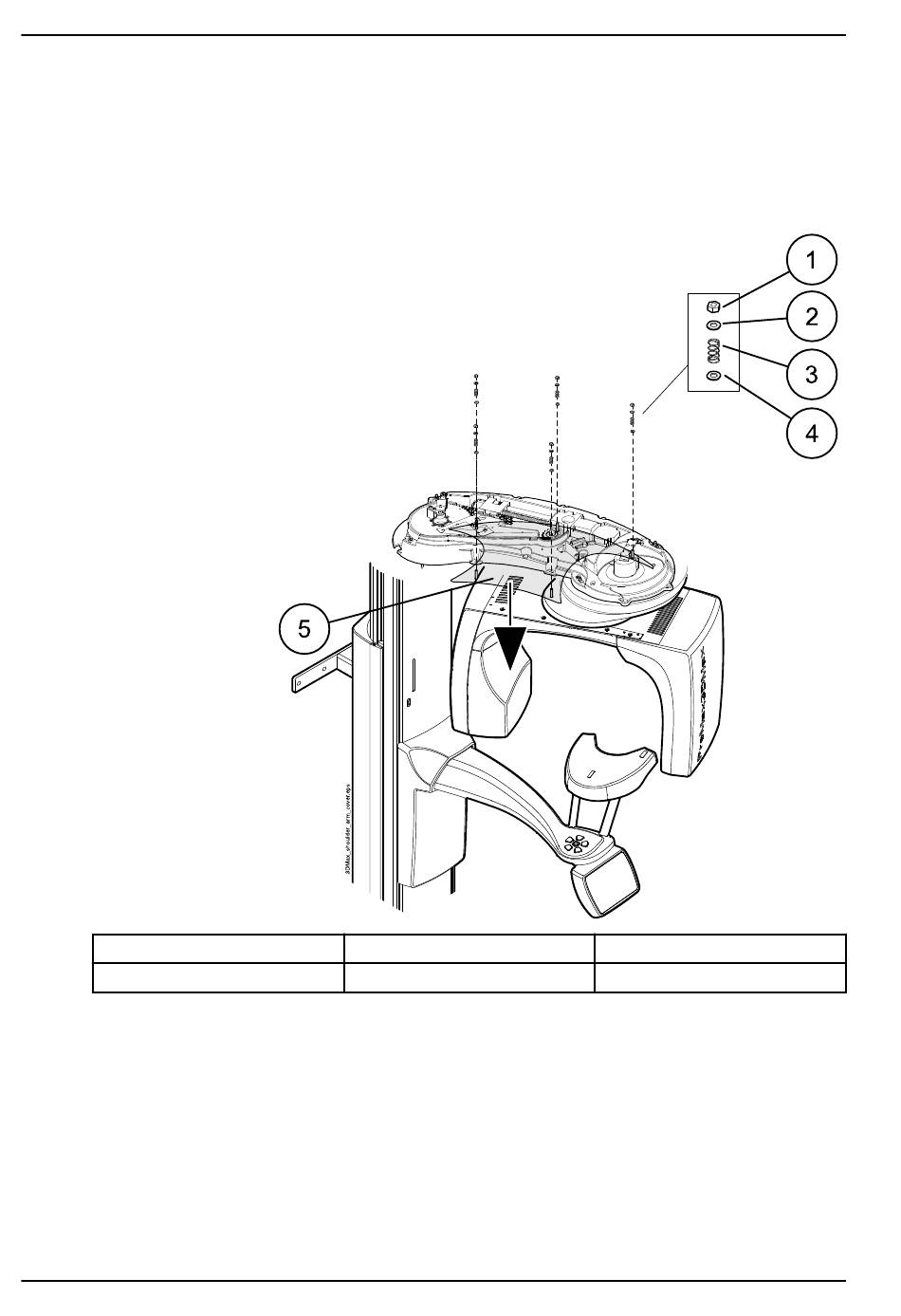

8.1.6.2 Removing shoulder arm bottom cover plate
1. Nut
4. Washer

8.1.7 Removing patient support arm covers

8.1.8 Removing column covers

200 Planmeca ProMax 3D Max
NOTE
You have to remove the shoulder arm cover first.
1. Unscrew the five M5 nuts and remove the nuts, washers and springs.
2. Remove the cover plate.
2. Washer
5. Bottom cover plate
For more information on patient support arm procedures, see Chapter
"Patient support arm" on page 175.
The following sections describe how to remove the covers from the X-ray
unit's column component.
3. Spring
