7 Column adjustments

7.6 Adjusting patient support optical sensor

188 Planmeca ProMax 3D Max

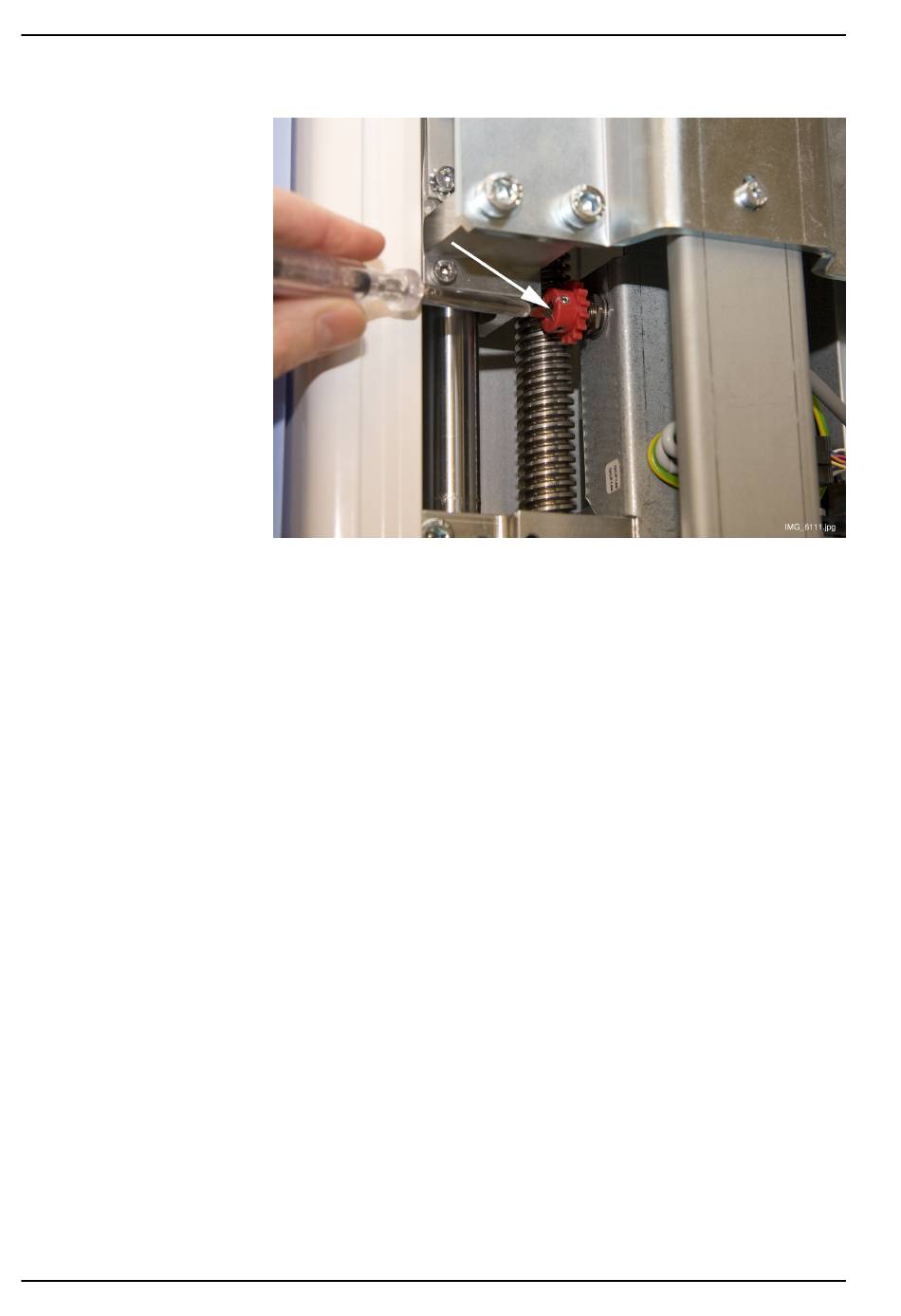

3. Rotate the sensor until the value in the Patient support sensor field
turns green (close to zero) in the Patient Support display.
4. Tighten the two screws at the side of the cog wheel of the sensor.
4. Exit the calibration mode by touching the green check mark button.
Do NOT touch the SET button.
5. After the sensor calibration the distance between patient support table
and sensor head must be checked, refer to section "Calibrating patient
support table movements" on page 164.
Perform the optical sensor adjustment in the following situations:
• After the sensor is replaced
• If there are any problems when moving the patient support
Technical manual
