Technical manual
2.c. Remove the patient support table cover.
Refer to section "Removing patient support table cover" on page
175.
3. Attaching the ball phantom.
3.a. Attach the patient positioning mechanism adapter to the patient
support table.
3.b. Attach the ball phantom (part number 30011904) to the patient
positioning mechanism adapter.
4. Enter the calibration mode.
4.a. Touch the service spanner on the Main display.
4.b. Touch Technical and enter password (1701).
4.c. Touch Calibrations (3200) > Scara Arm (3250) > Patient
Positioning Table and Positioning Lights Adjustment (3253).

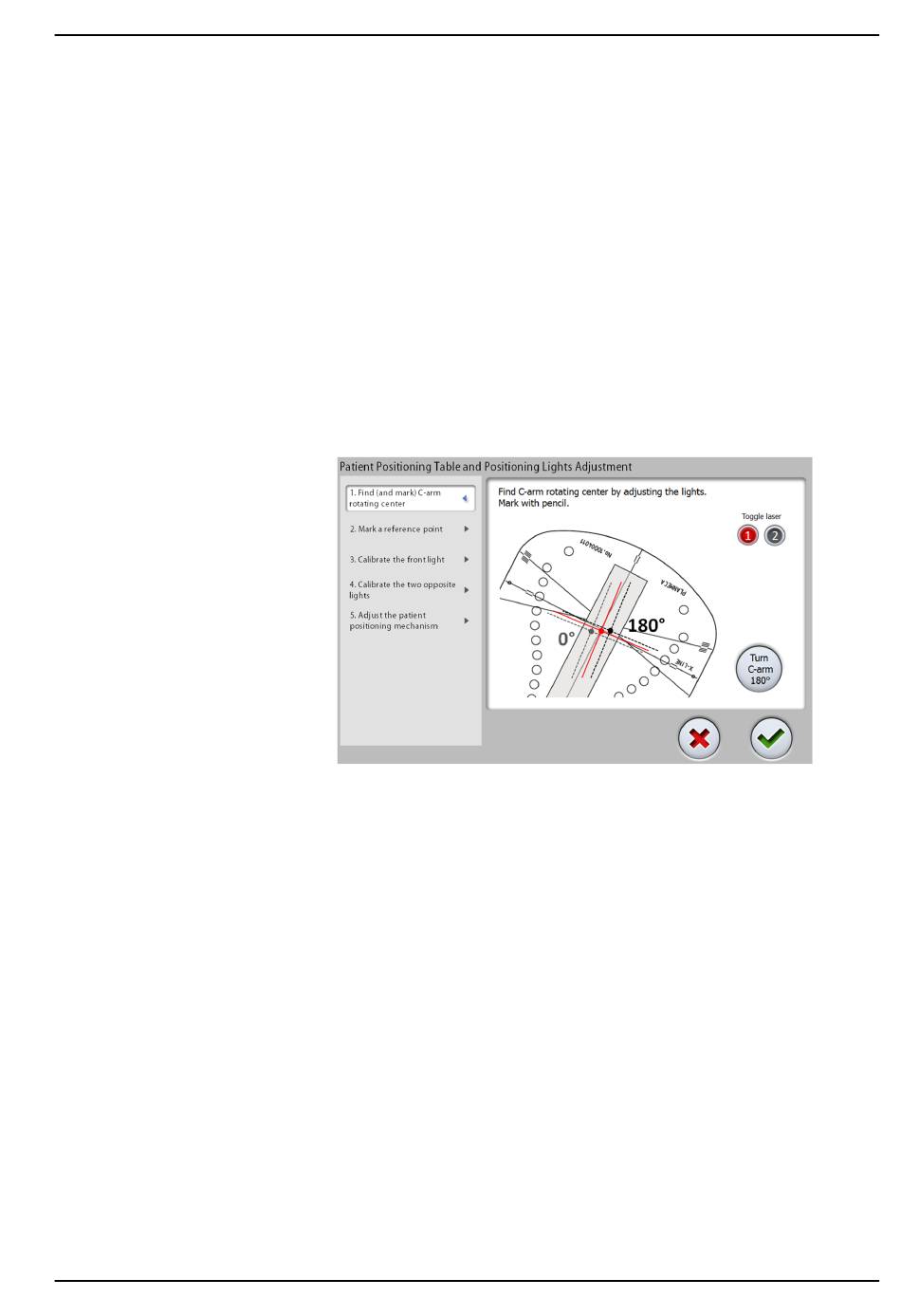

5. Find and mark the C-arm rotating centre in phase 1. Find (and mark) C-
arm rotating center.
TIP
The toggle laser button allows you to choose between side lasers for
more accuracy. Use the same laser selection in all stages (1-5) of the
calibration described in this section.
Calibrate the lasers by moving the lenses as described below until the
lasers are roughly lined up in crosshairs.
5 Panoramic and 3D calibrations
Planmeca ProMax 3D Max 127
