8.1.2 Removing C-arm upper covers
Technical manual

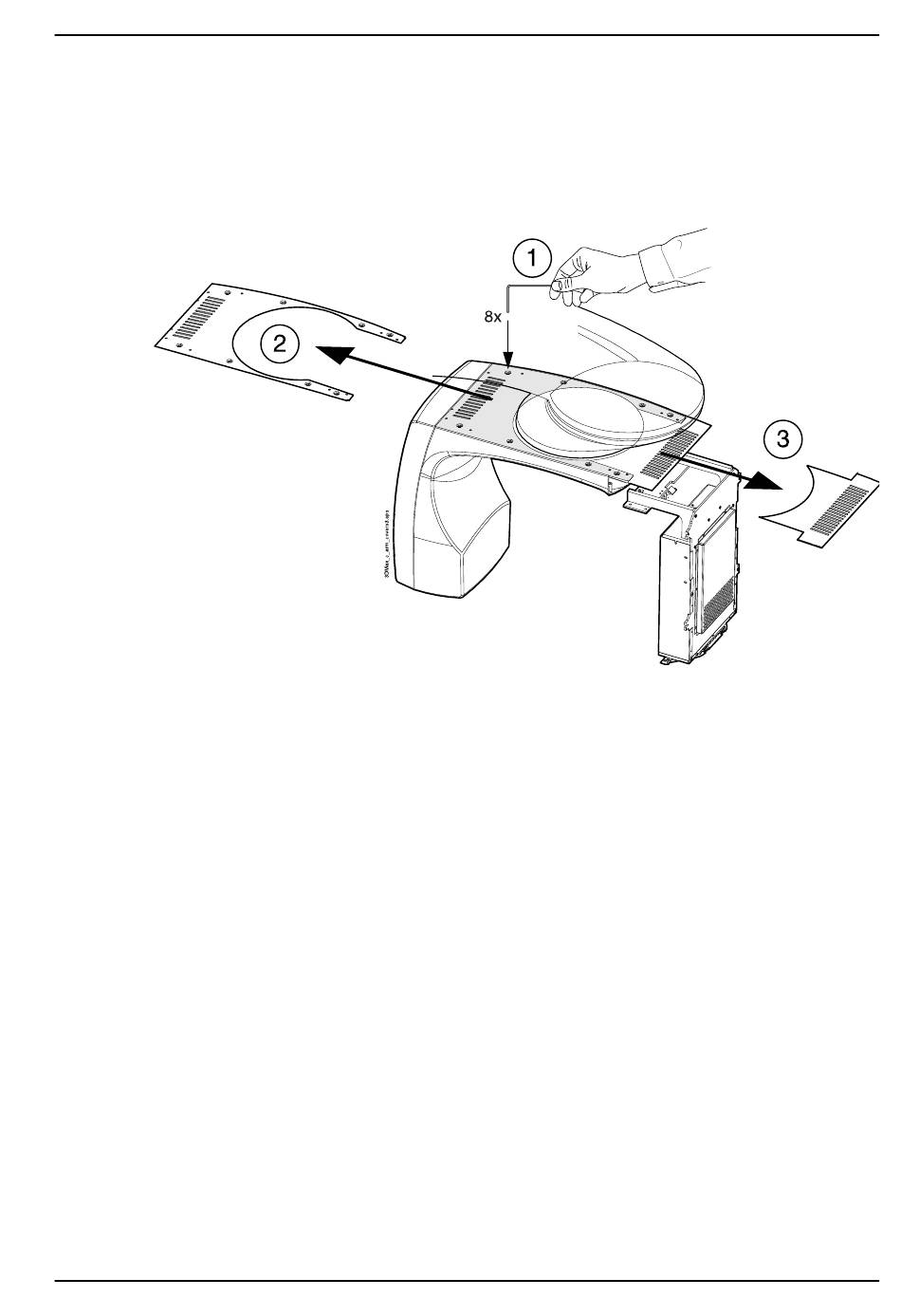

1. Loosen the eight screws that attach the upper covers to the C-arm (1),
see the figure below.
Do not remove the screws.
2. Slide the tube head cover plate (2) and the sensor cover plate (3) off.
8 Parts replacement and repair
Planmeca ProMax 3D Max
193
