8 Parts replacement and repair
8.1.4.2 Removing tube head back cover

8.1.5 Removing tube head covers (120 kV tube)

196 Planmeca ProMax 3D Max
NOTE
You have to remove the tube head front cover first.
The tube head back cover is secured with four screws (two at the top and
two on the side)

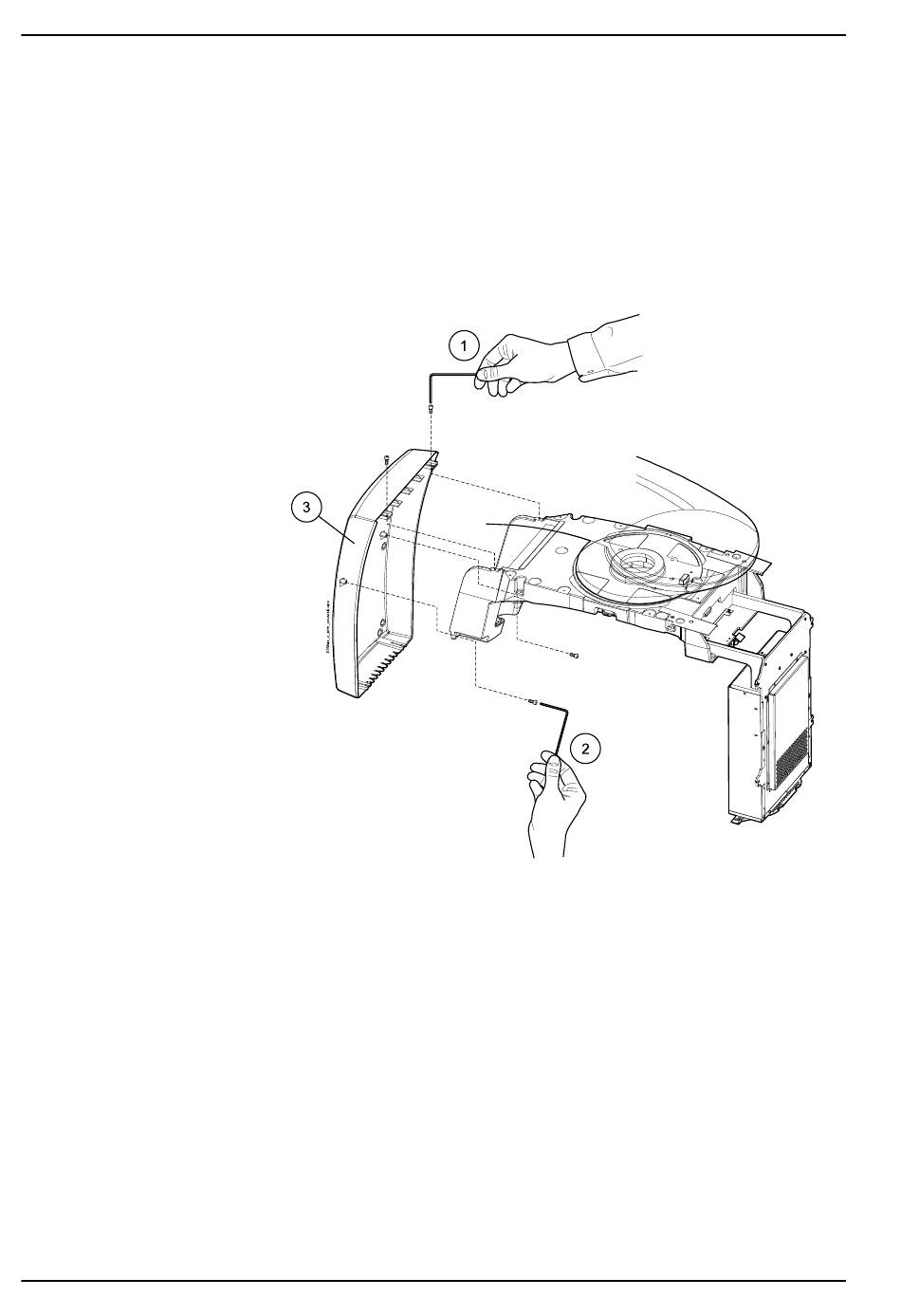

1. Unscrew the two top screws (1) and the two side screws (2), see the
figure below.
2. Remove the cover.
NOTE
These instruction apply only for X-ray units equipped with optional 120 kV X-
ray tube.
Technical manual
