2.5.6 Checking exposure statistics

About this task
Steps
Technical manual

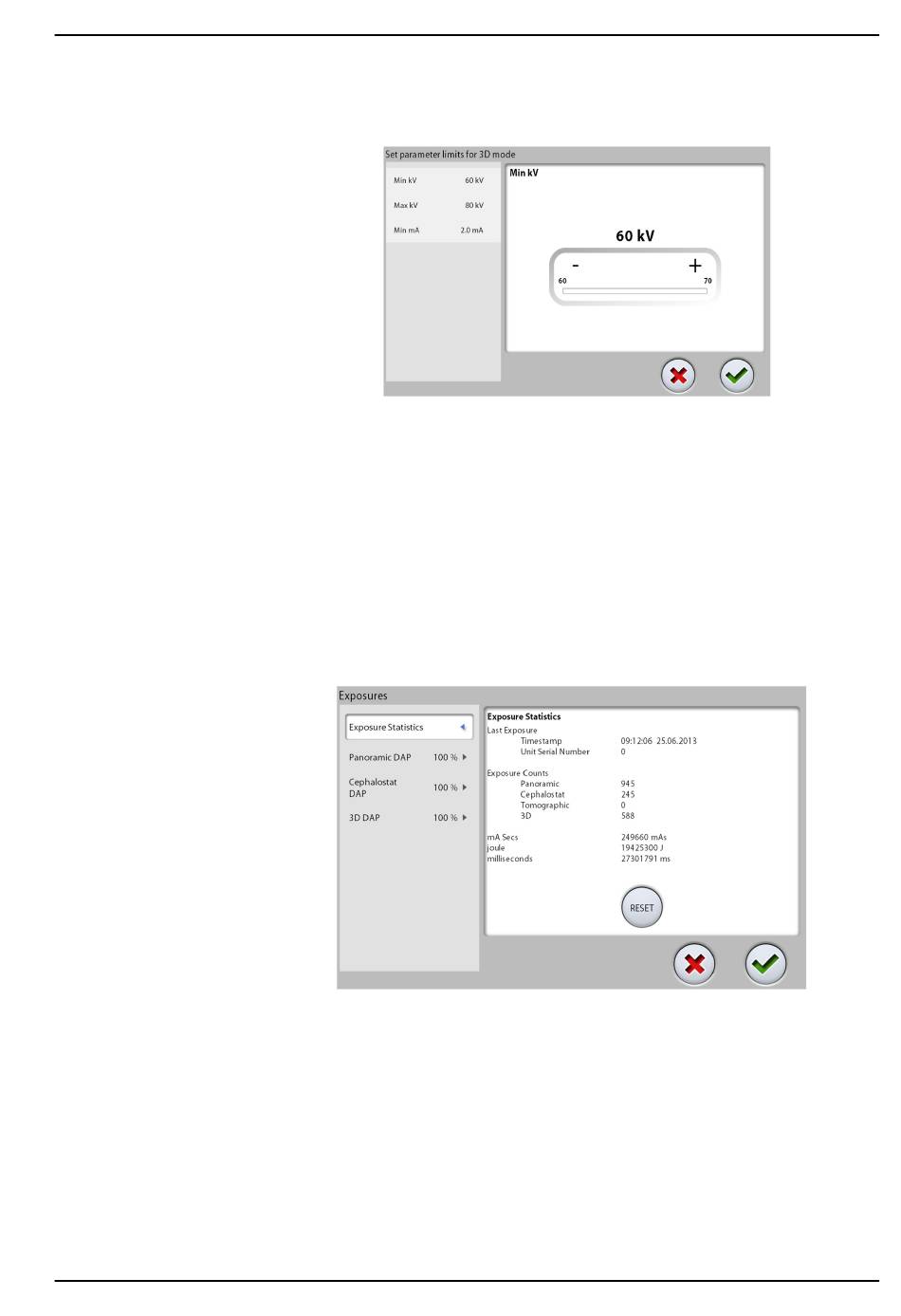

2.c. Select 3D (3313).
Select the maximum and minimum kilovolt, and minimum
milliampere values with the plus and minus buttons
3. Touch the green check mark button when ready.
Follow the steps below to check the unit tube head's exposure statistics.
1. Enter the technical settings menu.
See more in section "Entering technical settings menu" on page 51.
2. Select the Unit-Specific Settings (3300) > Exposures (3320).
From the left, select the exposure types the statistics you want to view.
• Exposure Statistics
The displays shows the time and the date of the latest exposure, the
serial number of the unit and the exposure counters of the
panoramic, cephalometric, tomographic and 3D exposures. The total
amount of mAs, energy and exposure time are also shown.
• Panoramic DAP, Cephalostat DAP and 3D DAP
The patient's radiation dose will be shown in a pop-up window after
each exposure. Radiation dose is indicated in terms of DAP (Dose
Area Product) and calculated separately for each exposure. The
measurement unit for DAP is milligray per square centimeter
