1.5.11.21 Maximum continuous heat dissipation of the X-ray tube assembly

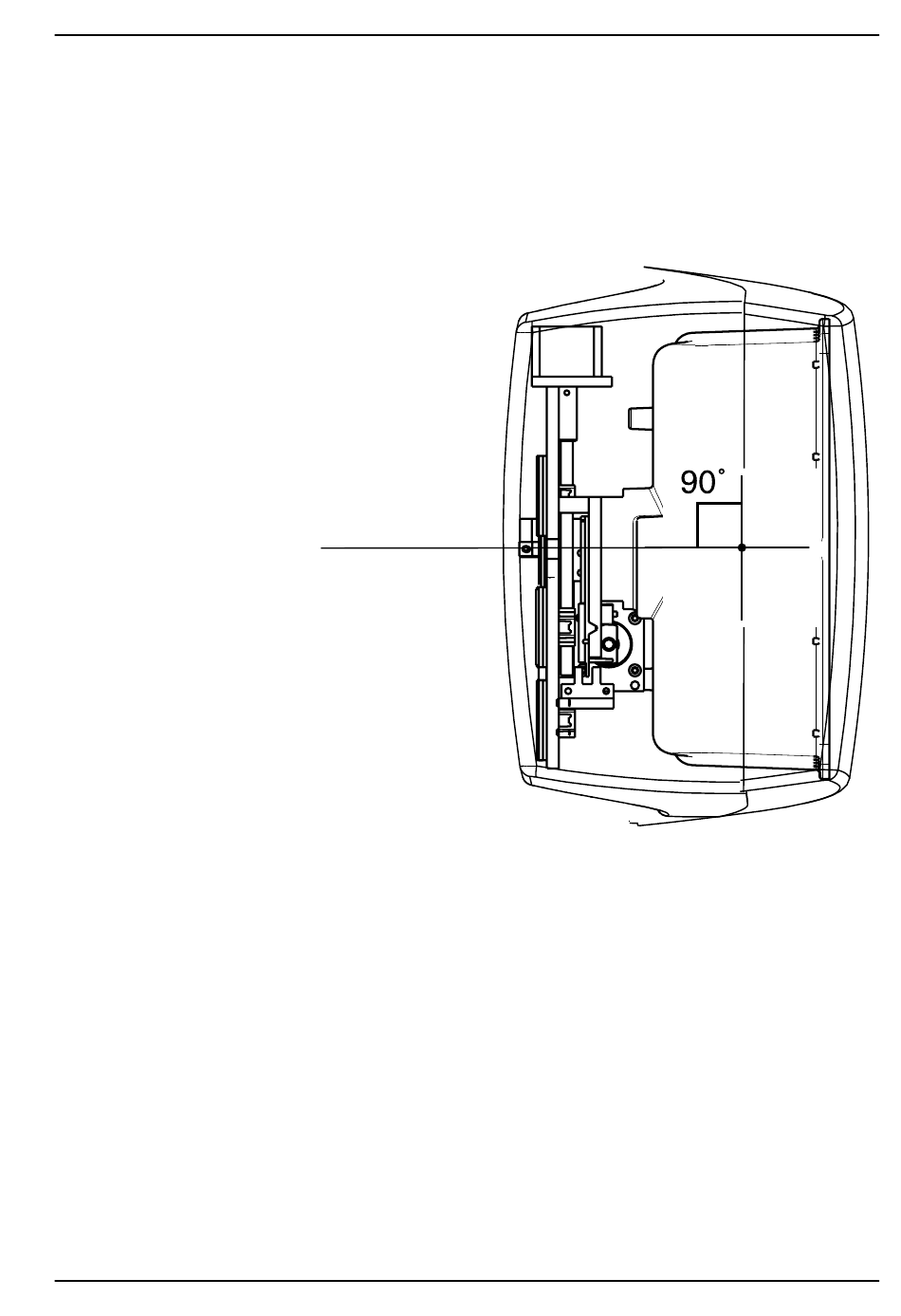

1.5.11.22 Reference axis to which the target angle and the focal spot characteristics of
the tube head assembly refer
1.5.11.23 Target angle with respect to the reference axis
1.5.11.24 Dimensions of the tube head assembly
1.5.11.25 Weight of the tube head assembly
1.5.11.26 Values of loading factors concerning leakage radiation
1.5.11.27 Tolerances of the focal spot on the reference axis
Technical manual
• D-067SB: 6 kJ/min
• D-059SBR: 2.4 kJ/min
• SXR 130-10-0.5 SC: 2.4 kJ/min
12°
(WxHxD) 235 mm x 340 mm x 120 mm
10.3 kg without collimator assembly
11.2 kg with collimator assembly
96 kV, 12 mA
X = ±0.5 mm (sideways)
