5 Panoramic and 3D calibrations
110 Planmeca ProMax 3D Max
3.c. Drive the collimator blades to the adjusted position by touching the
SET button.
NOTE
Do not touch the green check mark button, if touched the
temporarily settings are stored and must be manually restored.

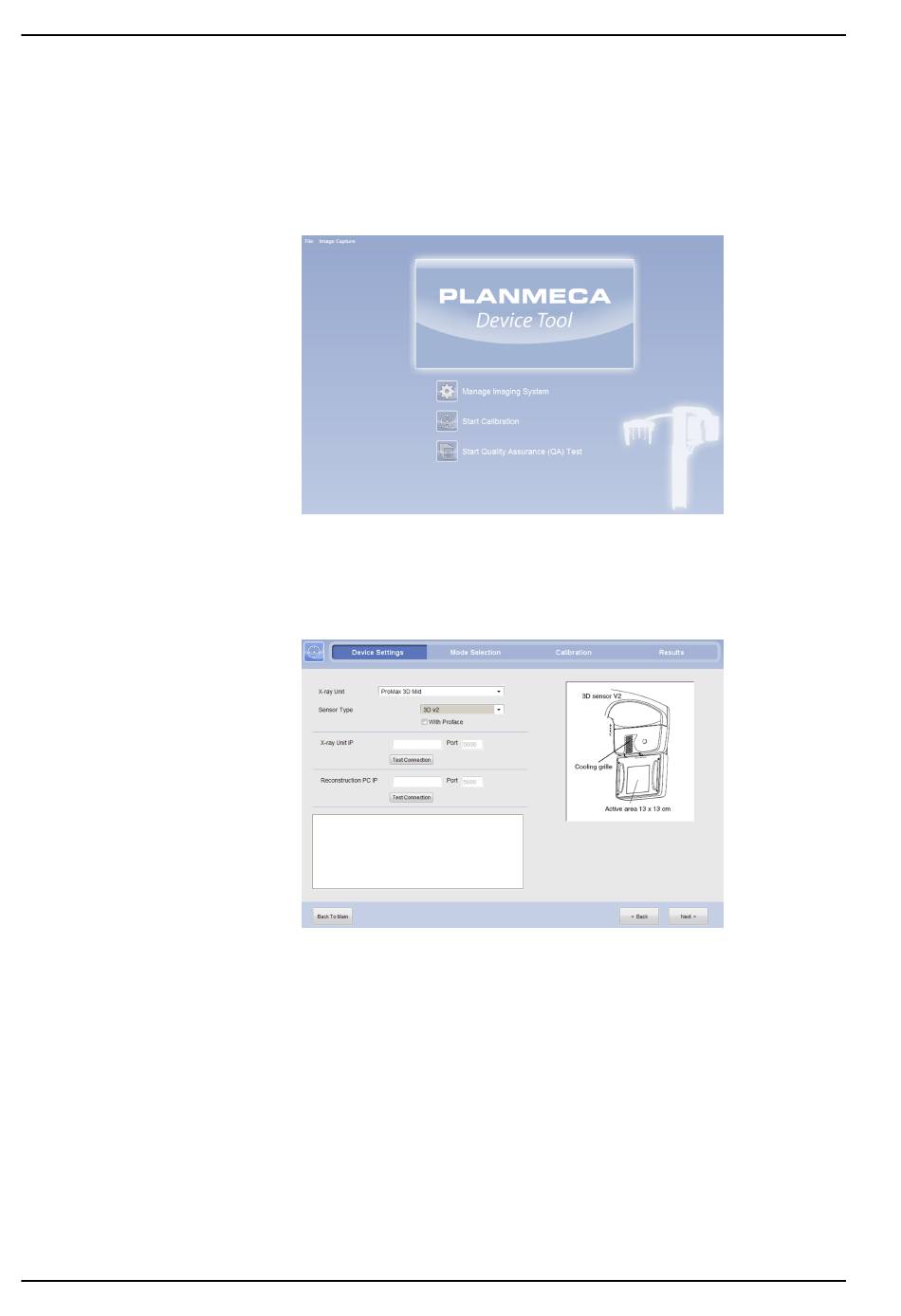

4. Start the Device Tool and click Start Calibration button.
5. Check the values in the Device Settings fields, and click the Next button.
The Device Tool automatically interrogates the X-ray unit configuration
and fills the Device Settings fields. To change the X-ray unit to be
calibrated, modify the IP address in the Manage Imaging System
configuration.
6. On the Mode Selection view:
6.a. Select 3D in the Imaging Mode field.
6.b. Click Select none button to clear the Calibration Tasks selections.
