Planmeca ProMax 3D Max with ProTouch Technical Manual page 111

Checking SmartPan beam position
Adjusting SmartPan beam position
Adjusting SmartPan beam horizontal position
Adjusting SmartPan beam width
Adjusting MultiView SmartPan beam width
Technical manual
1. Check the SmartPan beam position by taking a beam check exposure.
Refer to the Planmeca Device Tool manual, publication number
10031558.
2. If the radiation beam is not correctly aligned, the panoramic X-ray beam
position must be adjusted as described below, and in section "Adjusting
collimator angle" on page 106.
1. Enter the calibration mode:
1. Touch the service spanner on the Main display.
2. Touch Technical and enter password (1701).

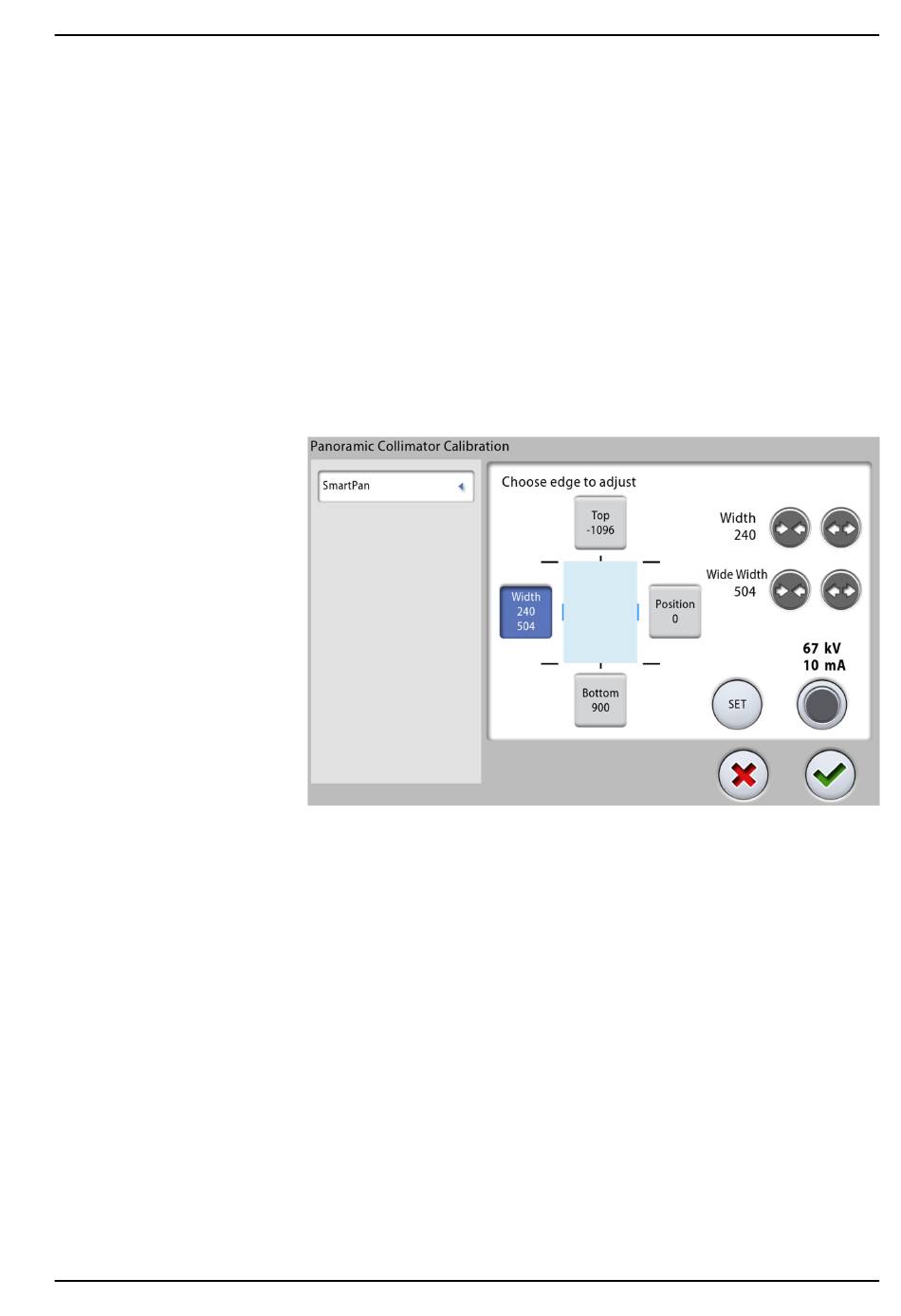

3. Touch Calibrations (3200) --> Collimator calibration (3260) and
Panoramic Collimator Calibration (3261). The following display
appears.
If the X-ray beam is too far to the left or right, adjust the beam to the center.
Adjust the primary collimator position as follows.
• Touch the Position button, select the position by touching the Position
arrow buttons and drive the primary collimator by touch SET button.
If the SmartPan X-ray beam is too wide or if it is too narrow, the width of the
beam must be adjusted. Adjust the beam width as follows.
• Touch the Width button, select the position by touching the Width arrow
buttons and drive the primary collimator by touching the SET button.
If the MultiView SmartPan X-ray beam is too wide or if it is too narrow, the
width of the beam must be adjusted. Adjust the beam width as follows.
• Touch the Width button, select the position by touching the Wide Width
arrow buttons and drive the primary collimator by touching the SET
button.
5 Panoramic and 3D calibrations
Planmeca ProMax 3D Max 105
