CPU Internal Operation
Bus Release Cycle CPU Cycle
T1
T1
T1
T1
TX
TX
TX
T1
Phi
–
A0
A19
–
D0
D7
MREQ
IORQ
RD, WR
BUSREQ
BUSACK

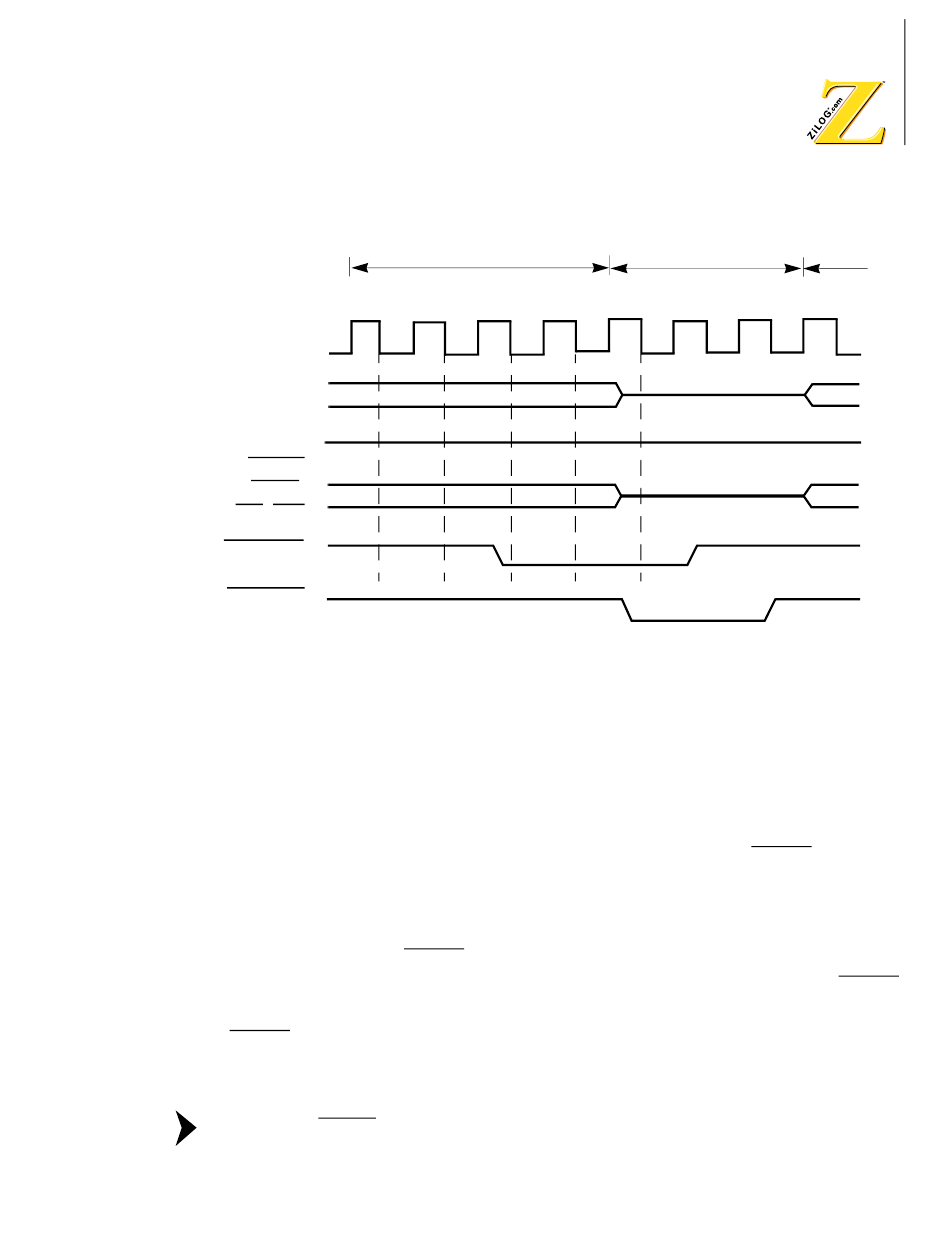

Figure 17.
Bus Exchange Timing During CPU Internal Operation
Wait State Generator
To ease interfacing with slow memory and I/O devices, the Z8X180 uses
Wait States (TW) to extend bus cycle timing. A Wait State(s) is inserted
based on the combined (logical OR) state of the external WAIT input and
an internal programmable wait state (TW) generator. Wait States (TW)
can be inserted in both CPU execution and DMA transfer cycles.
When the external WAIT input is asserted Low, Wait State(s) (TW) are
inserted between T2 and T3 to extend the bus cycle duration. The WAIT
input is sampled at the falling edge of the system clock in T2 or TW. If the
WAIT input is asserted Low at the falling edge of the system clock in TW,
another TW is inserted into the bus cycle.
