are there a timing diagrams for PUSH and POP instructions?
1 comments:
Mr. Anderson
May 14, 2025
The timing diagrams for the PUSH and POP instructions for the ZiLOG Z8018 Series are as follows:
POP Instruction (e.g., POP IX or POP IY): - Machine Cycle 1 (MC1): Fetch POP opcode. - Machine Cycle 2 (MC2): Fetch address code. - Machine Cycle 3 (MC3): Read from memory at SP (Stack Pointer); data goes to low byte (e.g., IXL or IYL). - Machine Cycle 4 (MC4): Read from memory at SP+1; data goes to high byte (e.g., IXH or IYH).
PUSH Instruction (e.g., PUSH IX or PUSH IY): - Machine Cycle 1 (MC1): Fetch PUSH opcode. - Machine Cycle 2 (MC2): Fetch address code. - Machine Cycle 3 (MC3): Decrement SP by 1 and write high byte (e.g., IXH or IYH) to memory at SP. - Machine Cycle 4 (MC4): Decrement SP by 1 and write low byte (e.g., IXL or IYL) to memory at SP.

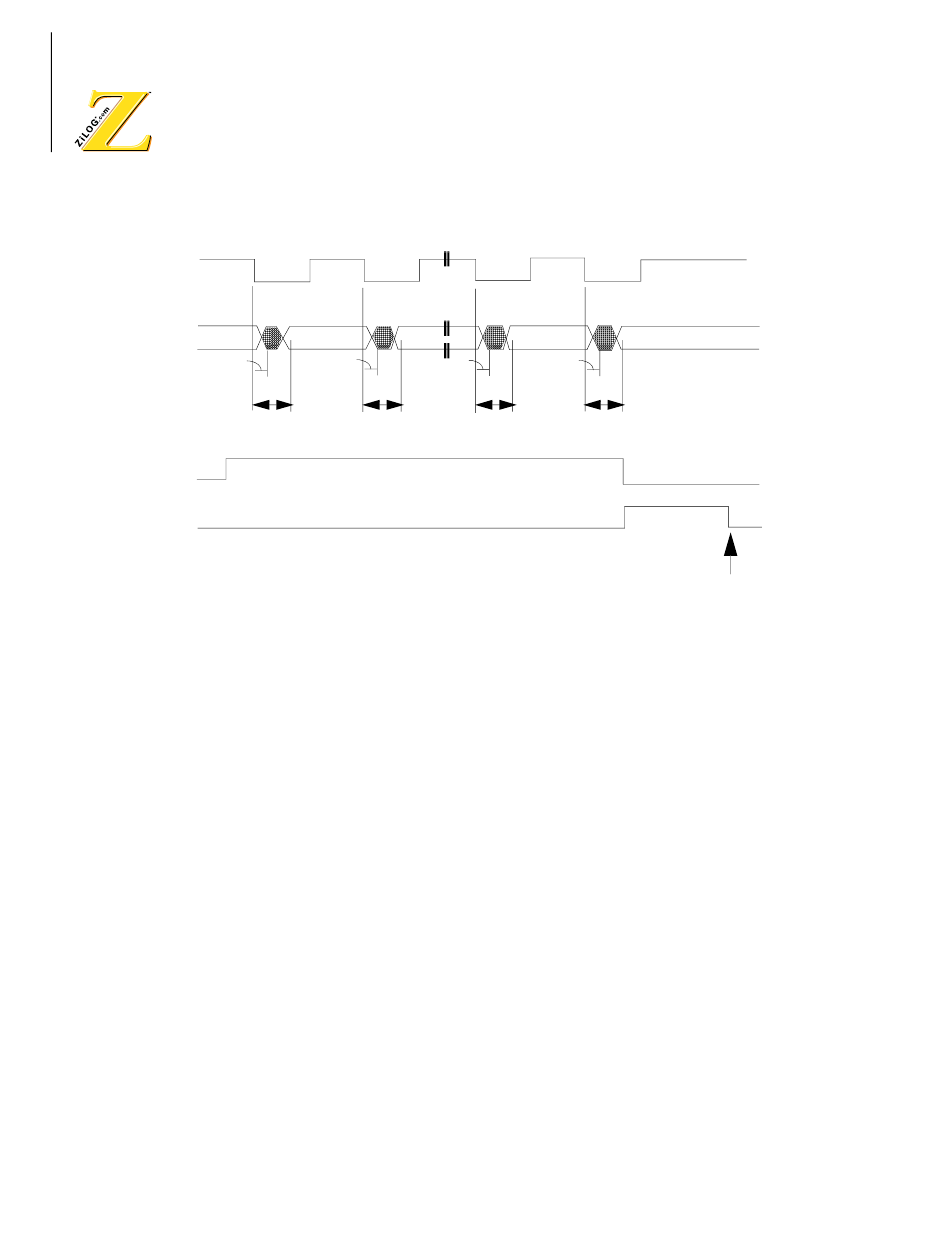

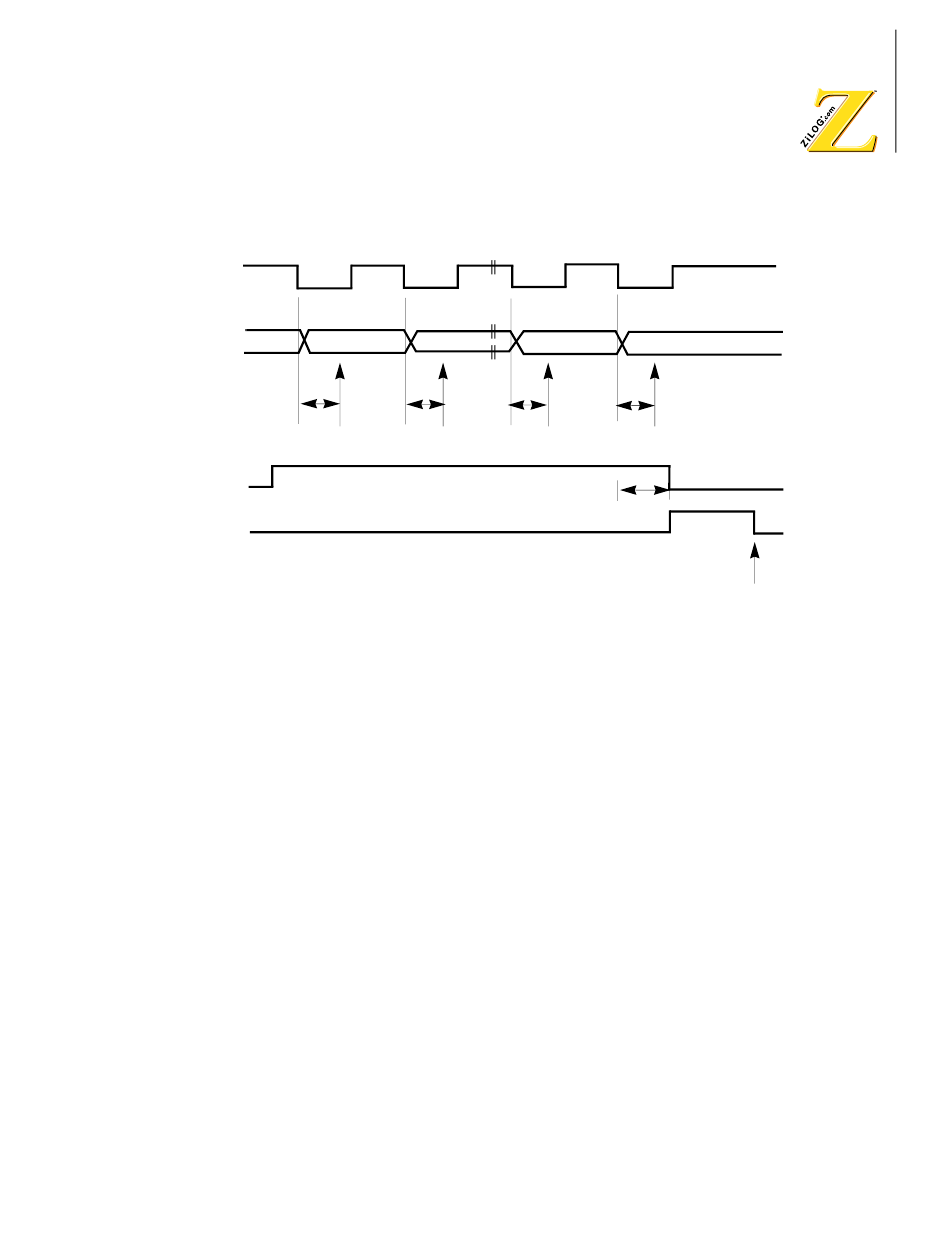

Each machine cycle includes three T-states (T1, T2, T3), and memory control signals (such as MREQ, RD, WR) are active as needed during these cycles.
