Introduction
Thank you for purchasing the ZiLOG ZGP32300200ZPR Z8 GP™ ZGP323 Programming
System with USB interface (Figure 1). The Z8 GP™ ZGP323 Programming System pro-
vides an inexpensive development environment for ZiLOG's Z8 GP family of microcon-
trollers. Two windowed 28-CDIP (Ceramic DIP) chips are included for use in prototyping.
The windowed CDIP chips are provided for your convenience and are eraseable with
ultraviolet light.
This User Manual tells you how to connect programming system components to your PC,
and a target board, install the ZDSII integrated development environment, and use ZDSII
to burn demonstration code into a Z8 GP family OTP microcontroller.
Downloaded from
Elcodis.com
electronic components distributor
ZGP32300200ZPR
Z8 GP™ ZGP323 Programming
System with USB Interface
User Manual

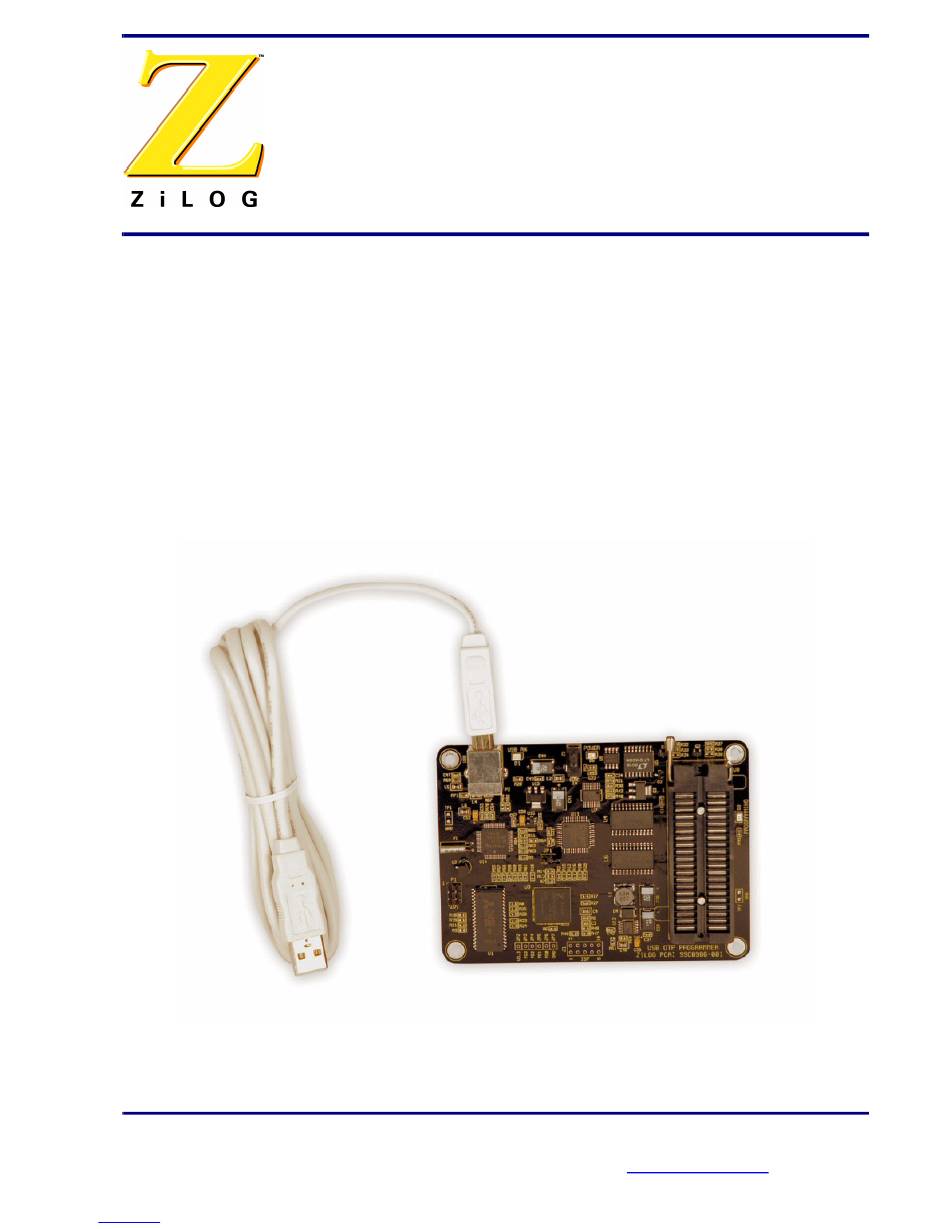

Figure 1. Z8 GP ZGP323 Programming System with USB Interface
ZiLOG Worldwide Headquarters • 532 Race Street • San Jose, CA 95126
Telephone: 408.558.8500 • Fax: 408.558.8300 •
UM019101-0305
www.ZiLOG.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZiLOG Z8 GP ZGP323
Summary of Contents for ZiLOG Z8 GP ZGP323
- Page 1 Thank you for purchasing the ZiLOG ZGP32300200ZPR Z8 GP™ ZGP323 Programming System with USB interface (Figure 1). The Z8 GP™ ZGP323 Programming System pro- vides an inexpensive development environment for ZiLOG’s Z8 GP family of microcon- trollers. Two windowed 28-CDIP (Ceramic DIP) chips are included for use in prototyping.
-
Page 2: Software Requirements
3. The following directory is installed on the host PC, assuming all installation settings remain at their defaults: C:\Program Files\ZiLOG\ZDSII_<product>_<version number>. Configuring the 5VDC Universal Power Supply The universal power supply kit features several different plug configurations in one box and the power supply itself in another. -
Page 3: Windows Xp
4. Plug the power supply into an electrical outlet. Installing the USB Interface Driver and Cable The Z8 GP ZGP323 Programming System features a USB interface. Follow the steps in this section to install the Z8 GP ZGP323 Programming System with USB Interface and configure the Z8 Programmer. - Page 4 Z8 GP™ ZGP323 Programming System User Manual Page 4 4. Select Search for the best driver in these locations and Include this location in search 5. Browse to the driver directory, one of the following: <ZDSII Installation Directory>\device drivers\USB <ZDSII Installation CD>\Device Drivers\USB 6.
- Page 5 Z8 GP™ ZGP323 Programming System User Manual Page 5 Programming System Components The Z8 GP ZGP323 Programming System circuit board contains three LED indicators: • Yellow LED D1: Flashes as data is received over the USB connection from the PC. •...
- Page 6 , the hex file just created when you rebuilt the project in Re- ledblink_c.hex lease configuration. 18. Connect the Z8 GP ZGP323 programming system to your development PC as de- scribed in “Installing the USB Interface Driver and Cable” on page 3. 19. Open Project >...
- Page 7 Z8 GP™ ZGP323 Programming System User Manual Page 7 20. In the tab of the Project Settings window, select from the Debugger USB Driver Driver drop-down menu. 21. Click . If prompted to rebuild the project, click 22. Select the appropriate package converter for the OTP chip you wish to burn. For the windowed 28-CDIP part, select the 28-PDIP package converter.
- Page 8 Z8 GP™ ZGP323 Programming System User Manual Page 8 Figure 3. OTP Programming Window (Hex File Example) 27. If the appropriate target device is not selected, set it now in the drop-down Device menu. For the windowed ZGP323 part shipped with the programming system, select ZGP323XXX2832_Window 28.
- Page 9 The following instructions describe the process for burning a hex file to a ZGP323 OTP chip. 1. Connect the Z8 GP ZGP323 Programming System to your development PC as described in “Installing the USB Interface Driver and Cable” on page 3.
- Page 10 Z8 GP™ ZGP323 Programming System User Manual Page 10 Figure 4. OTP Programming Window (Hex File Example) 8. If the appropriate target device is not selected, set it now in the Device drop-down menu. 9. In the Hex File: section, click the button and select the hex file you wish to burn into the OTP chip.
- Page 11 Fax: 408.558.8300 www.ZiLOG.com Document Disclaimer ZiLOG is a registered trademark of ZiLOG Inc. in the United States and in other countries. All other products and/or service names mentioned herein may be trademarks of the companies with which they are associated.
