S5 System • Replacing components
B 14
B 13

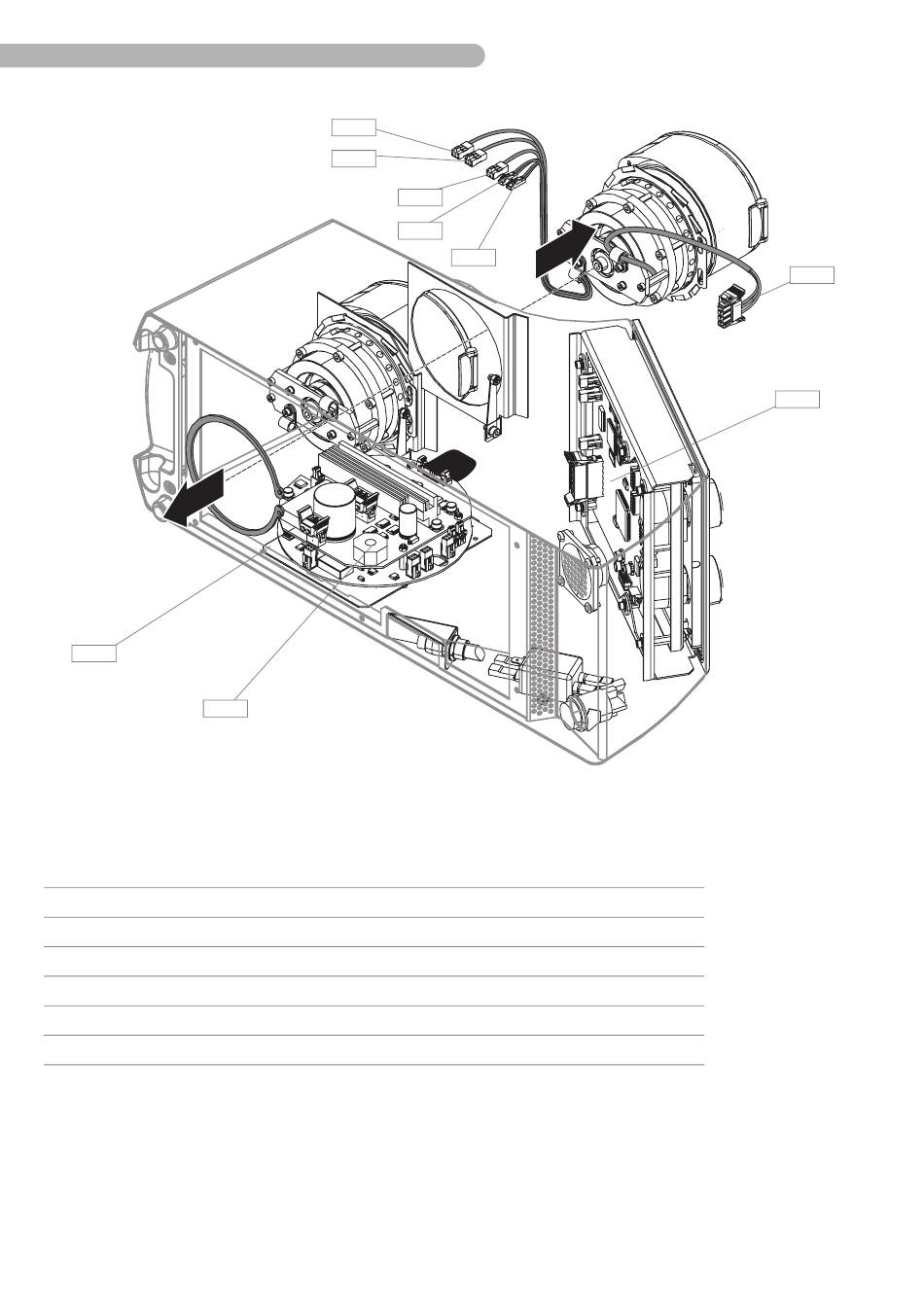

Fig. 50: Disconnecting the retaining ring (2) and dismantling the pump head
◗
Disconnect the connector B 48 and the following connectors from the circuit board B 13 (Motor power
amplifier circuit board):
Item Name
B 48 Connection to circuit board HMF
B 49 Connection Hall effect sensor
B 50
Connection control cable on pump
B 51 Connection control cable on pump
B 52 Connection cover pump head
B 53
Connection temperature
◗
Remove the ring.
◗
Remove the pump head from the housing.
6.14
B 51
B 50
B 49
B 53
B 52
