S5 System • Replacing components
b
c

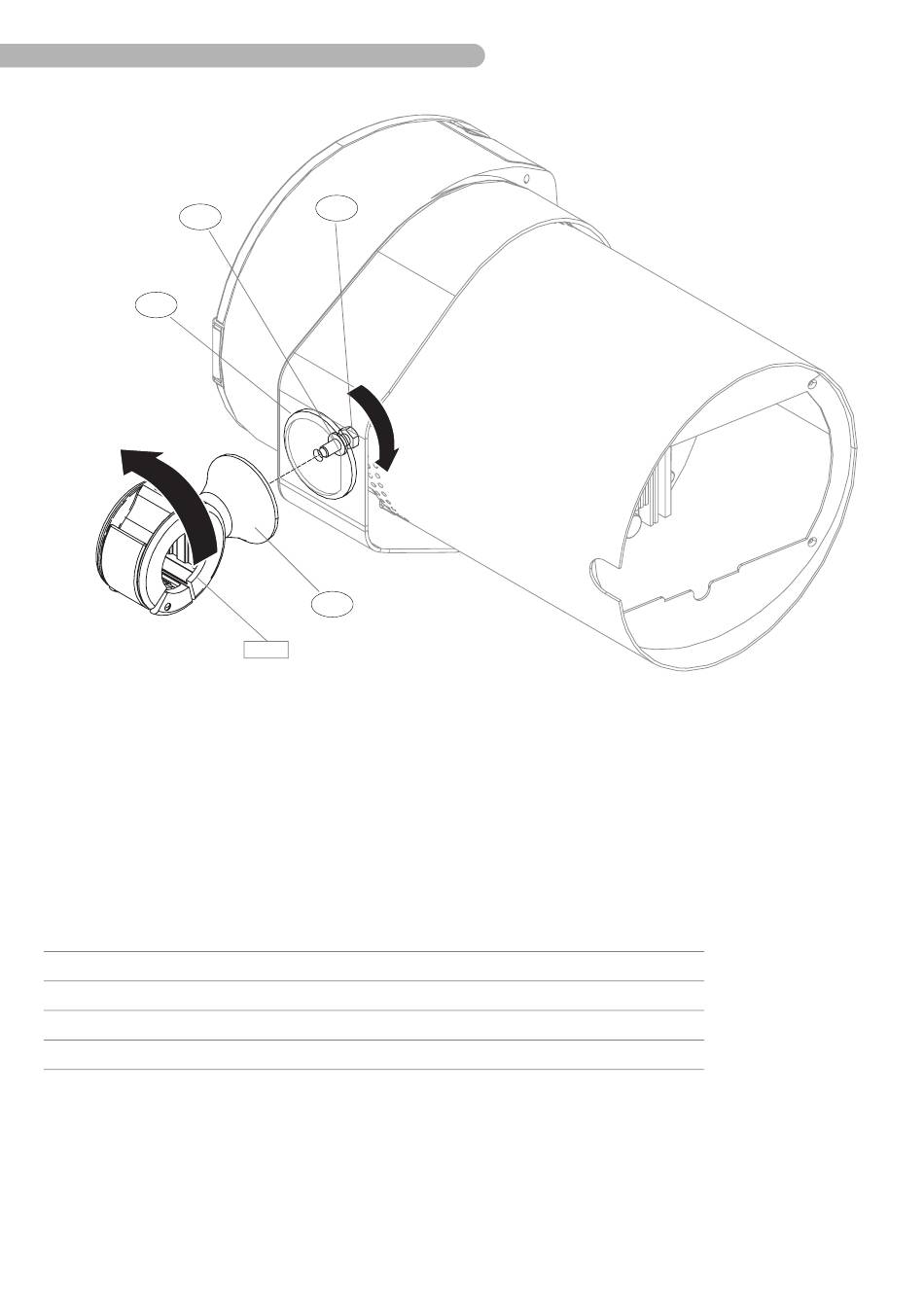

Fig. 63: Removing the housing (1)
◗
Remove hexagon screw a including washers b and c.
◗
Remove connector piece d with fast clamp connector F 1.
Assembly material
a Hexagon screw (DIN 933 M6x16, AF 10 mm)
b Washer (DIN 125 A 3.2)
c Washer MRP 150
d Connector
6.30
a
d
F 1
