S5 System • System description
3.3.7 Assembly overview – S5 MRP 85/1 and S5 MRP 85/2
G
G 4
G 3
G 9

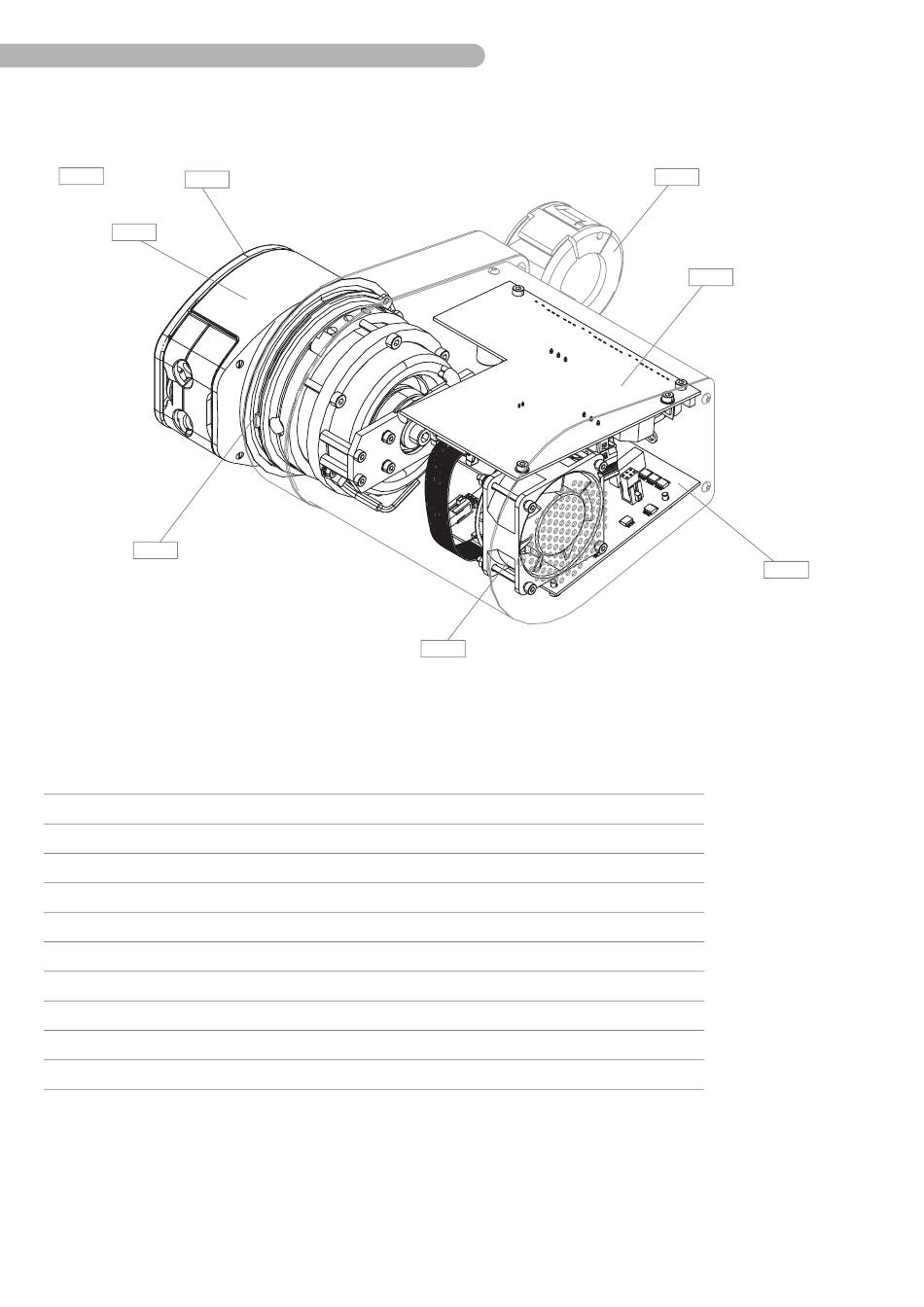

Fig. 20: Assembly overview – S5 MRP 85/1 and S5 MRP 85/2
Item Name
G S5 MRP 85/1 and S5 MRP 85/2 (identical construction)
G 1 Double holder MRP85 (not shown here)
G 2 Holder MRP85
G 3 Pump head RP85
G 4 Pump cover RP85 (complete)
G 5
Motor controller MRP85
G 6 Motor power amplifier MRP85
G 7 Fan
G 8
Connection cable control panel (not shown here)
G 9 Retaining ring mini
3.32
G 7
Number Part Number
10-88-68
10-88-69
10-86-00
10-86-45
HME 0402 90-305-700
HMR 0403 90-305-710
Pabst 614, 24V 96-406-031
97-102-621
10-86-42
G 2
G 5
G 6
SM-5811-0000.01 ENG
