6.5.3
Replacing components of the display and control module

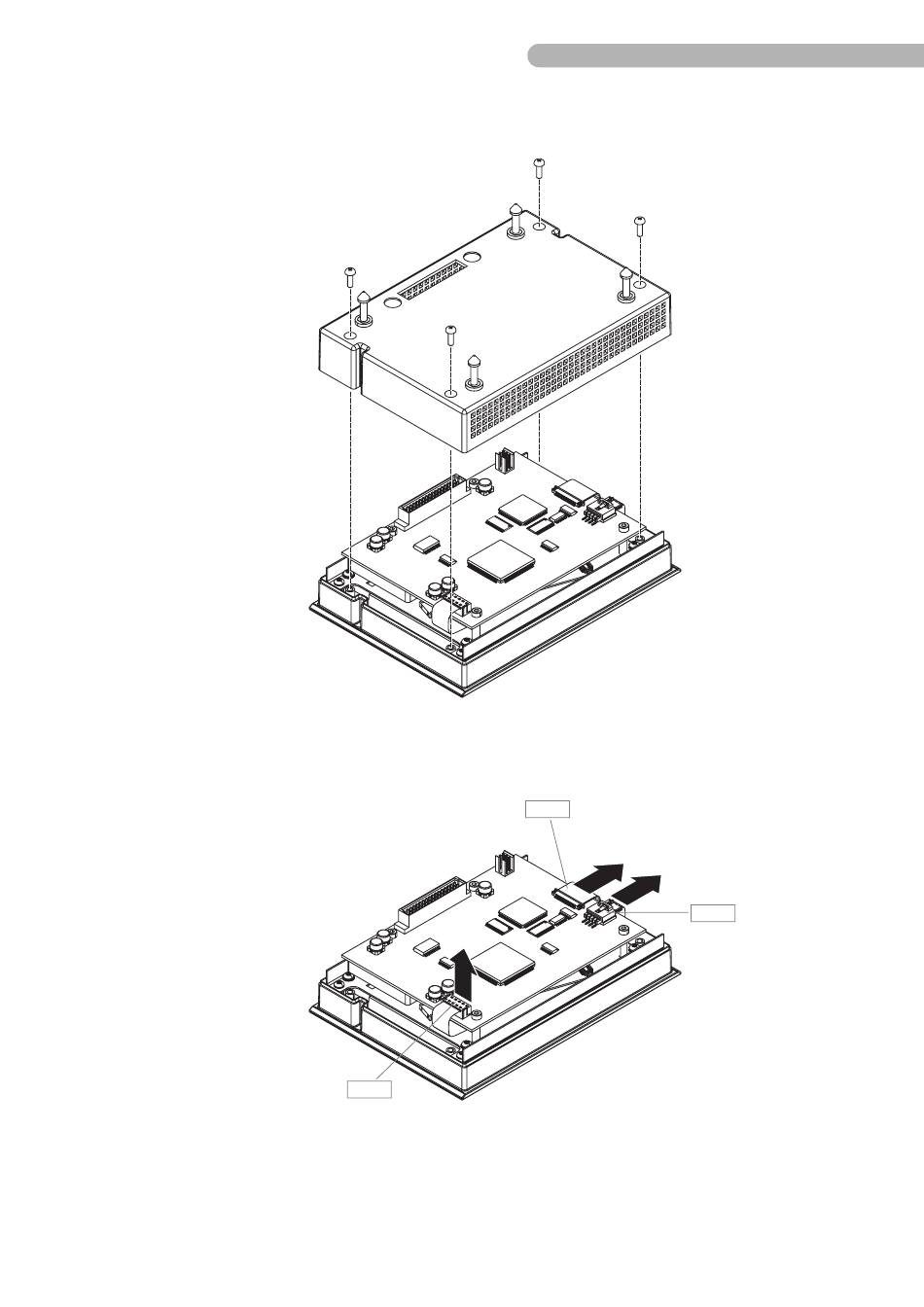

Abb. 80: Open the housing
◗
Loosen the four PT screws (KB 30x10 WN 1411) and carefully lift the rear of the housing up.
Abb. 81: Loosen the connectors
◗
Loosen the connectors
– Connection LCD D 17
– Connection Touch screen D 18
– Connection Inverter D 19
SM-5811-0000.01 ENG
D 19
S5 System • Replacing components
D 17
D 18
6.47
