6.6.2
Replacing control panel components
Replacing the circuit board fan control
H 15

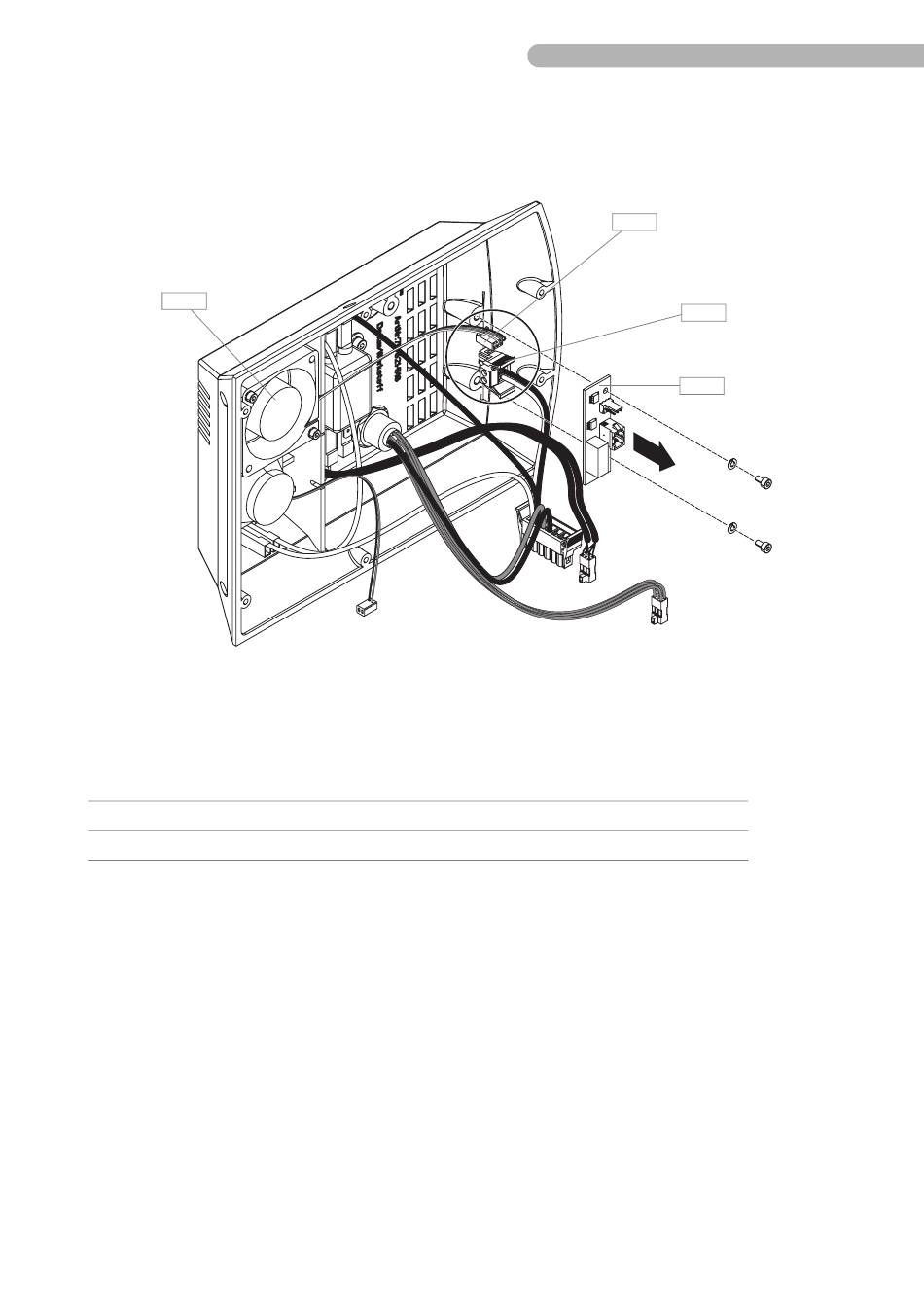

Fig. 87: Replacing the circuit board fan control
◗
Disconnect the following connectors from the circuit board fan control H 6:
Item
Name
H 21
Connection fan H 15
Connection power supply H 18
◗
Remove the two socket head screws shown above (DIN 912 M3x6 / allen key size 2.5 mm), including
washers (DIN 125 A 3.2).
◗
Replace thecircuit board fan control H 6.
SM-5811-0000.01 ENG
H 21
Number
Part number
CON 2
CON 1
S5 System • Replacing components
H 18
H 6
6.53
