S5 System • System description

Circuit board motor controller

B 14
B 21
B 19
B 23

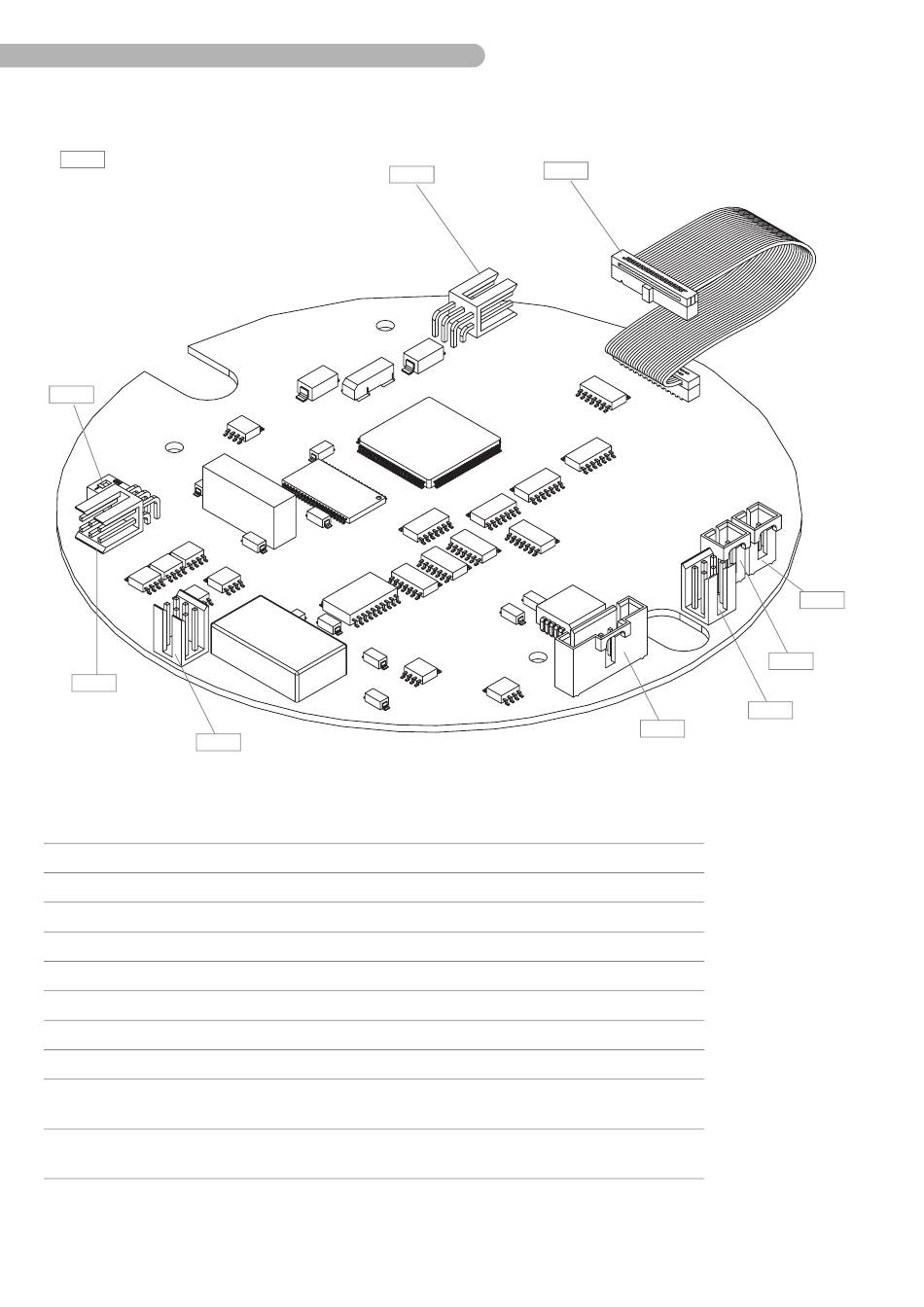

Fig. 24: Circuit board motor controller
Item Name
B 14 Circuit board motor controller
B 15 Socket connection Hall effect sensor
B 16 Socket connection control cable on pump
B 17 Socket connection cover pump head
B 18
Socket connection temperature
B 19 Socket serial connection
B 20 Socket serial connection
B 21 DIP switch
B 22 Ribbon cable connection on circuit board motor
power amplifier
B 23 Socket connection on on circuit board motor power
amplifier (MRP 150)
3.40
B 22
B 20
Number Part Number
HMS 0409 90-305-770
CON 3
CON 4
CON 6
CON 7
CON 8
CON 10
S1
CON 2
B 17
B 18
B 15
B 16
SM-5811-0000.01 ENG
