7.2 Labelling

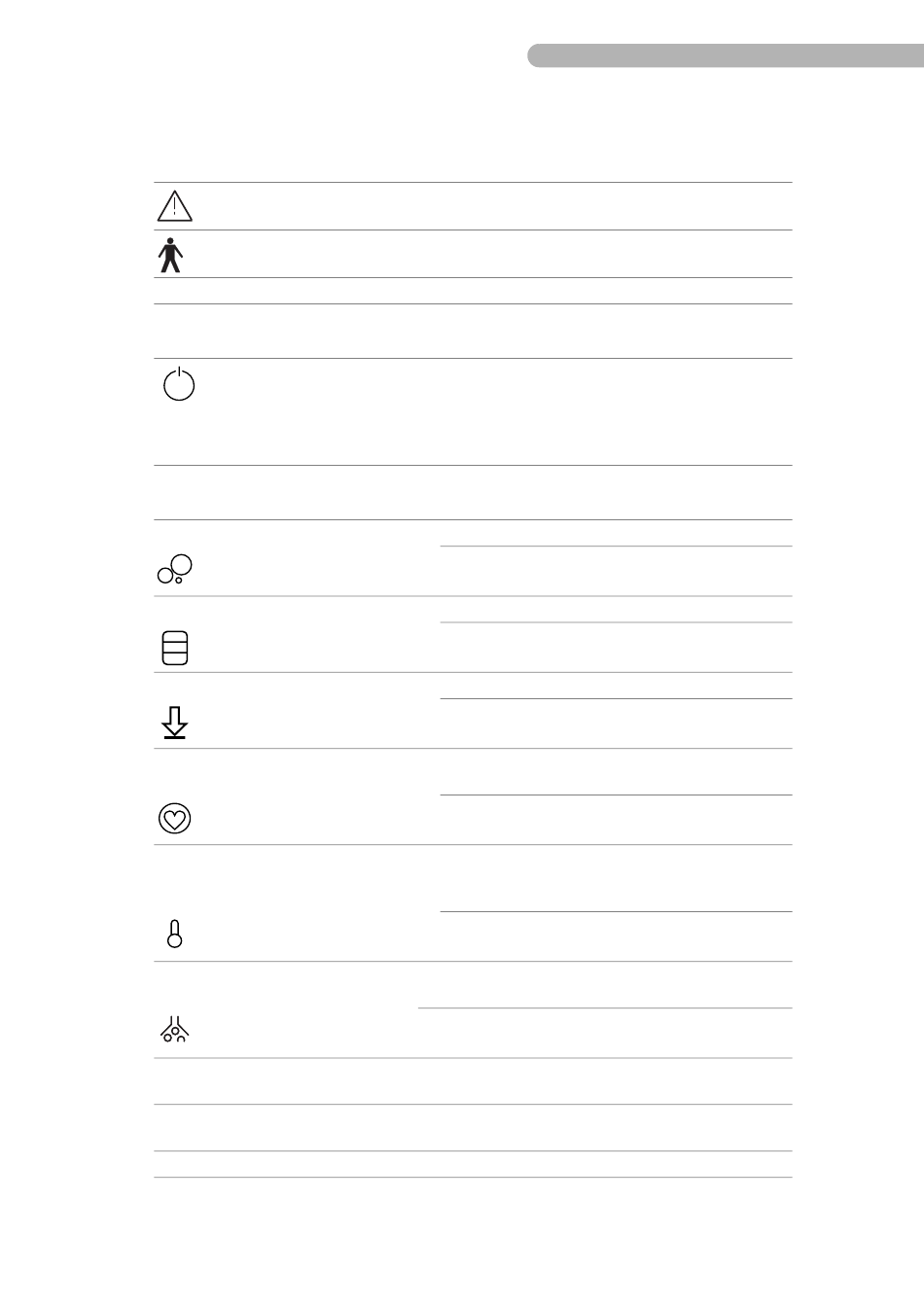

Icons on the nameplates:
IPX1
Icons on the console, pump housing, system panel and control panel:
Icons on the S5 sensor modules:
B1
L1
P1-P2
B
P
T1, T2, T4
T3
APC
DC/DC
UPS
Interface
SM-5811-0000.01 ENG
Caution! Refer to the documentation.
Degree of protection against electrical shock: Type B
Drip-proof
– on the console: Switch S5 System on/off
– on the pump housing: Switch the pump on/off
– on the system-panel: Switch the system panel on/off
– on the control panels: Switching the control panels and
connected mast roller pumps on/off
Channel 1 for connection to bubble sensor
S5 Sensor module for bubble detector
Channel 1 for connection to level sensor
S5 level sensor module
Channel 1-2 for connection to pressure sensor
S5 sensor module 2 channel pressure monitor
Channel for connection to bubble sensor / cardioplegia
Channel for connection to pressure sensor / cardioplegia
S5 cardioplegia sensor module
Channel 1, 2 and 4 for connection to temperature probes
Channel 3 for connection to temperature probe /
cardioplegia
S5 sensor module 4 channel temperature monitor
Channel for connecting bubble sensor/
Air Purge Control APC
S5 APC module
(Air Purge Control)
S5 DC/DC module
(Direct Current)
S5 UPS module
(Uninterruptible Power Supply)
S5 interface modul
S5 System • Appendix
7.11
