S5 System • Replacing components
6.5.2

Replacing the circuit board backplane

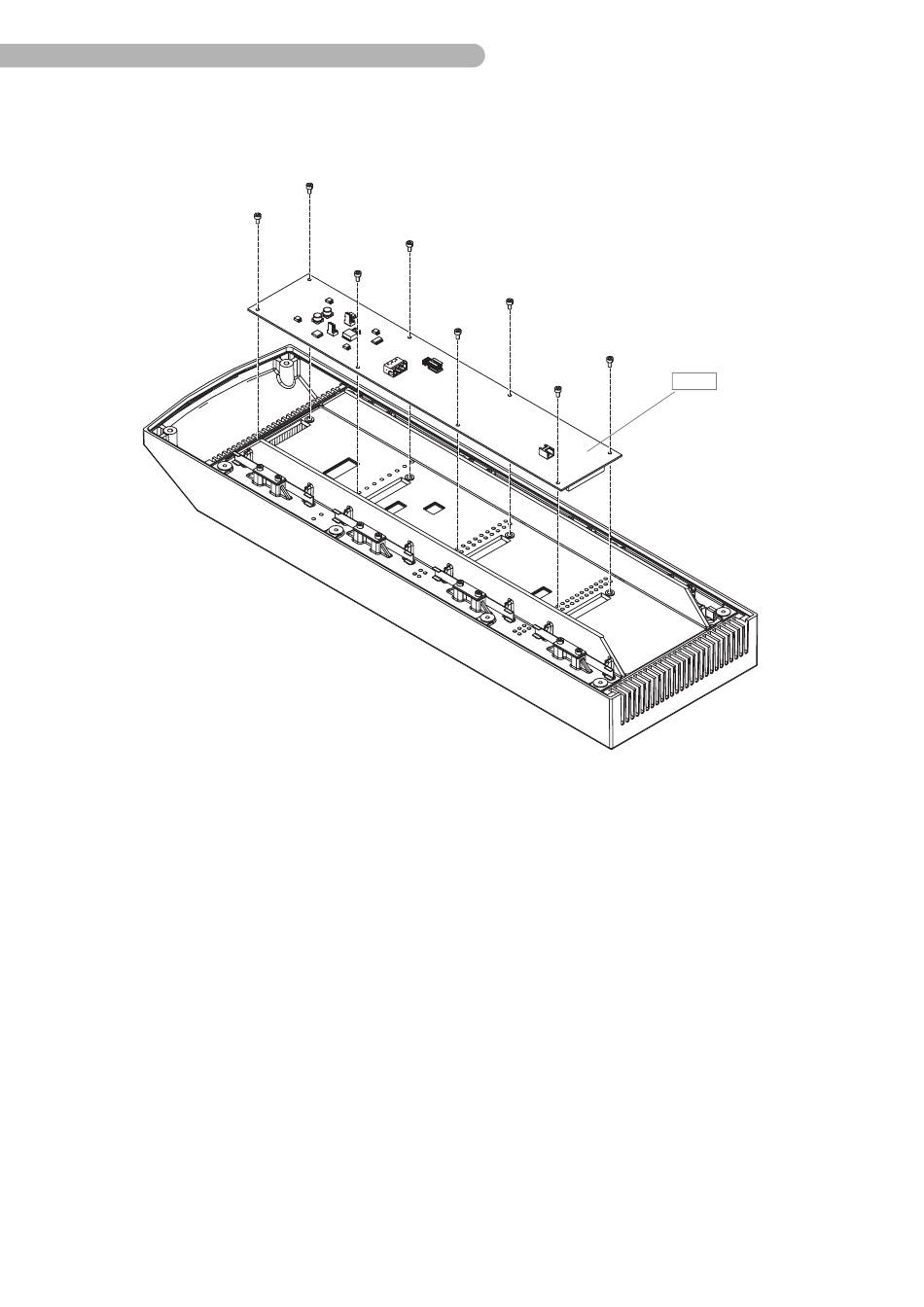

Fig. 79: Removing the circuit board backplane
◗
Loosen the eight socket head screws (DIN 912 M3x6 / allen key size 2.5 mm).
◗
Remove the circuit board Backplane system panel D 1.
◗
Replace the circuit board.
◗
Install the new circuit board in the reverse order.
◗
Reconnect the connectors.
◗
Warning during assembly: Sharp edges of the housing can be damage cables or their insulation.
Make certain that the cables not being pinched.
6.46
D 1
SM-5811-0000.01 ENG
