System panel (3 pos. and 6 pos.)

D 11
D 8

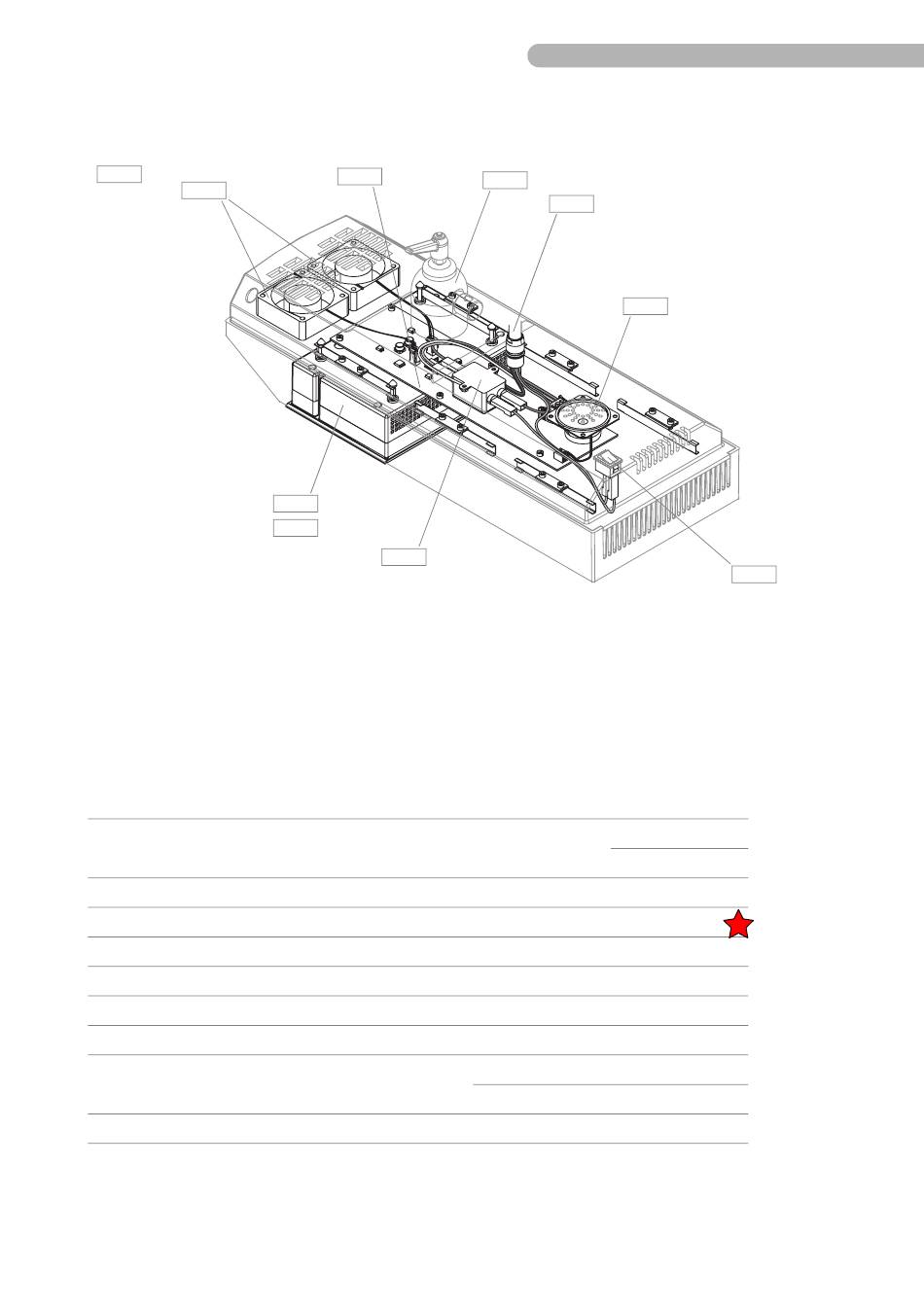

Fig. 16: Assembly overview – System panel (3 pos. and 6 pos.)
Note:
The S5 system panel (6 pos.) is made up of two S5 system panels (3 pos.). As the functions performed by
these S5 system panels are identical, we are using the S5 system panel (3 pos.) for the overview. There
are differences in the holder. For more information about this holder, refer to the section entitled
„Assembly System panel" on page 7.27.
Item Name
D 11 S5 system panel, 3 pos.
S5 system panel, 6 pos. (not shown here)
D 3 Mast joint holder (not shown here)
D 4 Connetion cable
D 5 Toggle switch 1-pole
D 6 Line filter
D 7 Speaker
D 8 Fan - Smartcooler
D 9 S5 display and control module
D 10 Circuit board display and control module
D 12 Backplane system panel
SM-5811-0000.01 ENG
D 12
D 9
D 10
D 6
D 3
D 4
D 7
Number Part Number
28-95-03
28-95-04
55-90-56
97-103-625
Typ 1801 96-121-209
FN332Z-10-05 96-250-042
97-103-669
LFX1460E 96-406-030
28-95-10
HDS 0407 90-305-750
HDT 0501 90-305-830
S5 System • System description
