S5 System • Replacing components

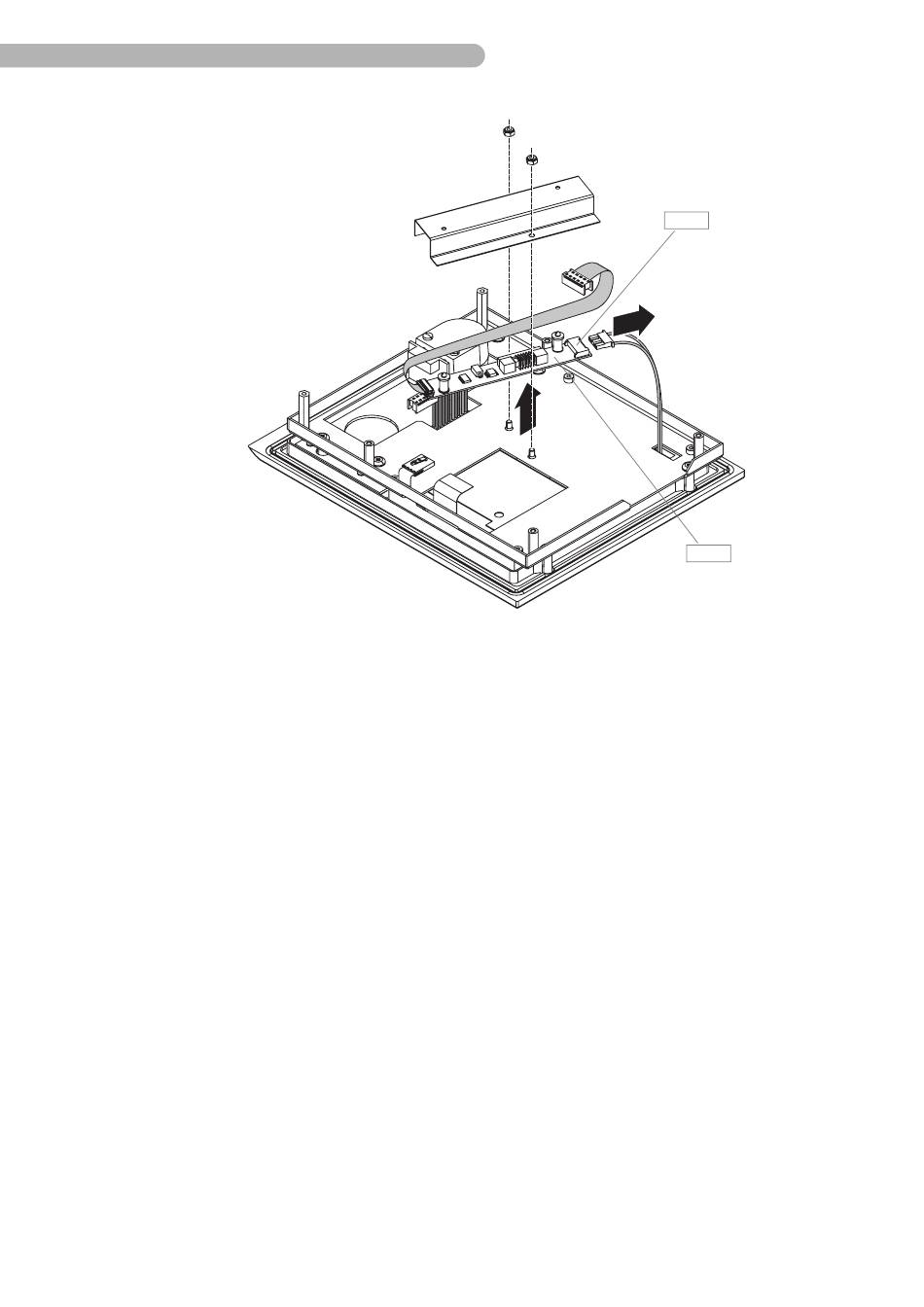

Fig. 58: Removing the display and control module (3)
To remove the Inverter B 38 circuit board:
◗
Loosen the two self-locking nuts (DIN 985 M3 WAF 5.5) from the cover.
◗
Loosen the connection LCD B 41 and lift the circuit board up.
6.24
B 41
B 38
SM-5811-0000.01 ENG
