6.6 Control panels for mast roller pumps

As the control panels are of identical construction to some degree, we have illustrated the following
descriptions with only one figure in some cases. Unless otherwise specified, the procedure for the
installation of the control panels is identical. In the interest of clarity, cables and connectors have been
omitted in some of the figures. Always mark the plugs and cables to avoid mistakes in subsequent
assembly.
Please note that it is essential that ESD protective safety measures are taken when working with
components susceptible to ESD. When removing or fitting circuit boards or components susceptible to
ESD, ensure that you use ESD mats, wrist straps, or similar.
6.6.1

Opening the control panel

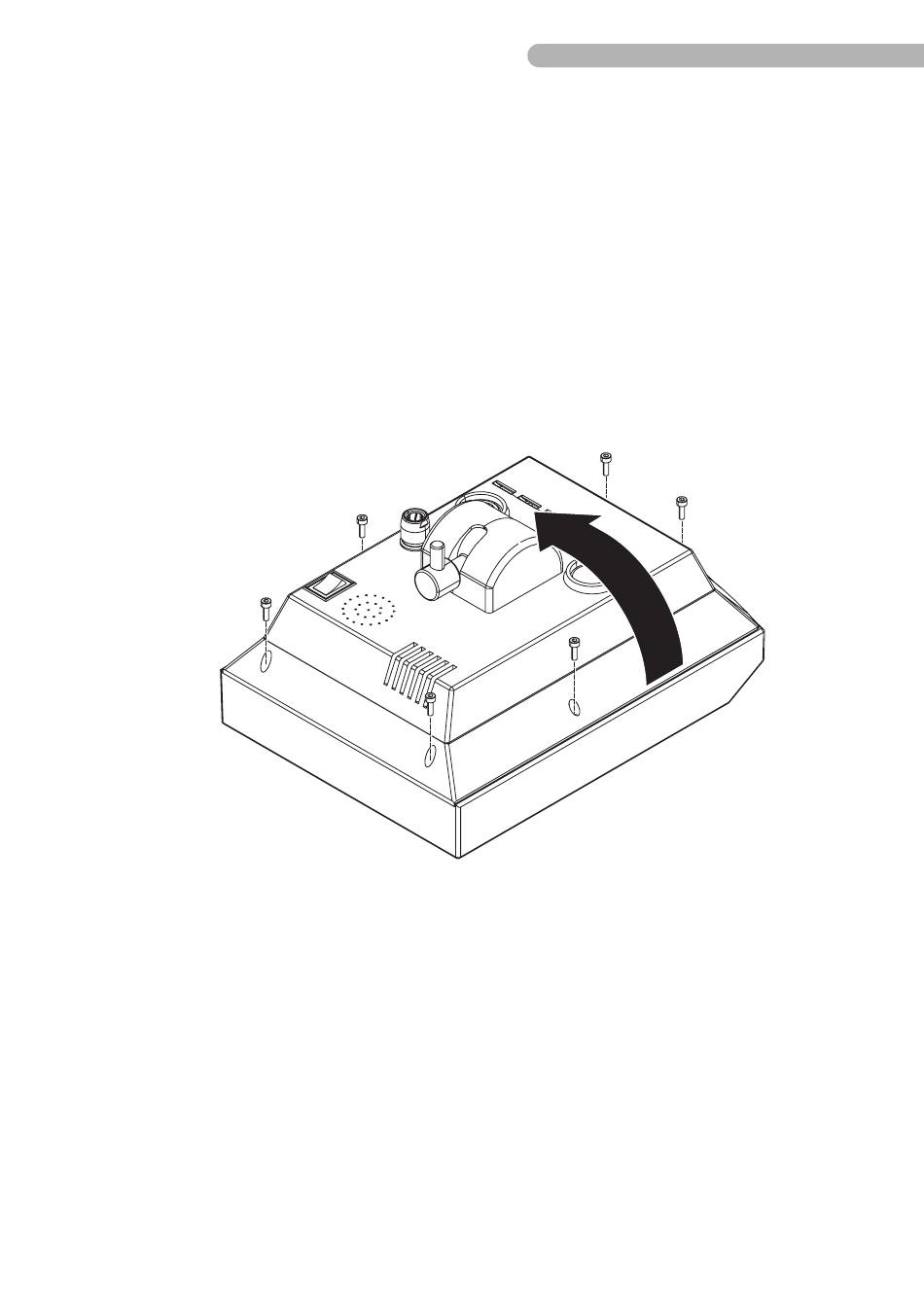

Fig. 85: pening the control panel (1)
◗
Remove the six socket head screws (DIN 912 M3x10 / allen key size 2.5 mm).
◗
Carefully open the back of the housing.
Warning: The back of the housing cannot be opened up fully without first detaching the plug
connectors between the connections on the back of the housing and the circuit board!
