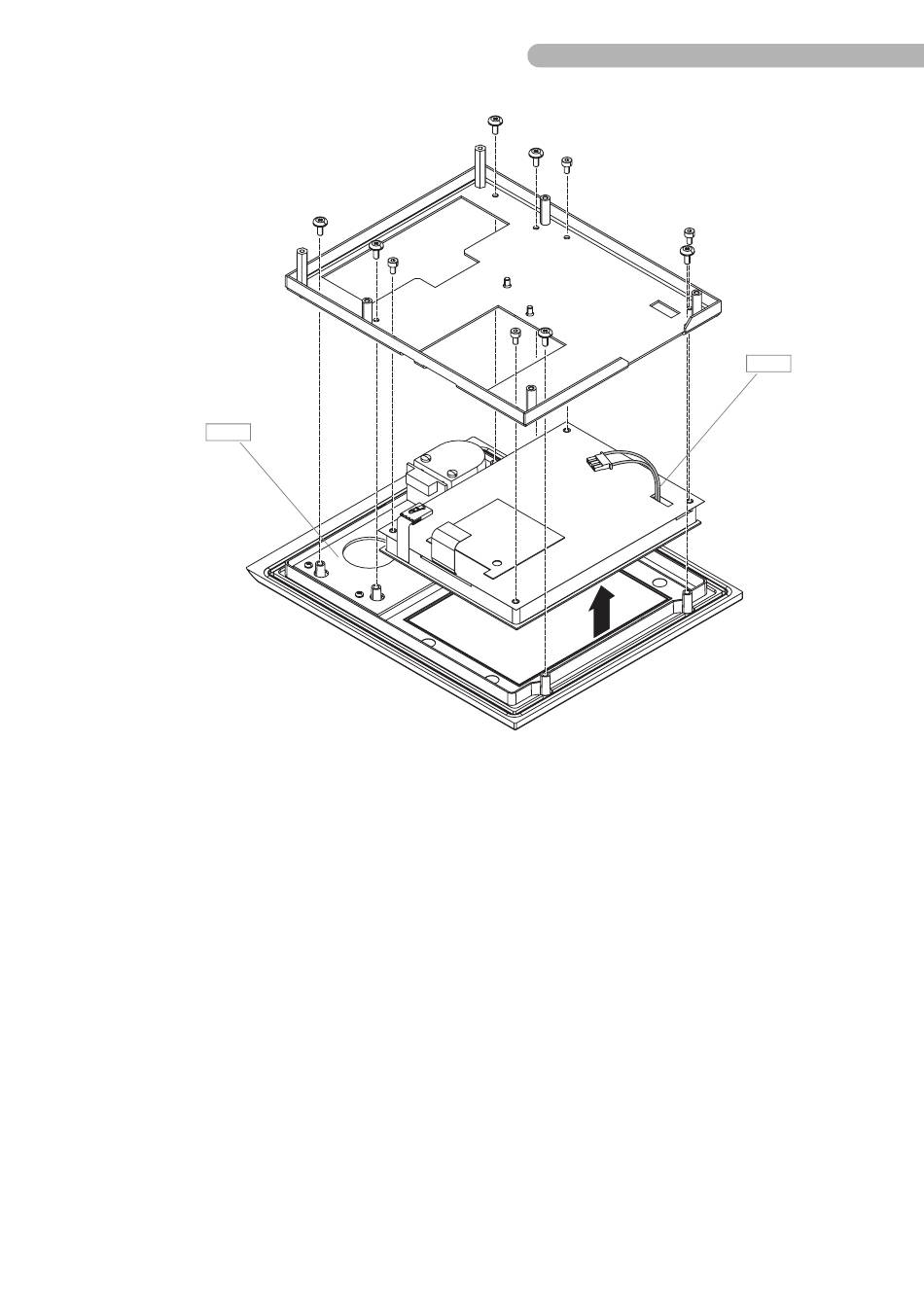

Fig. 59: Removing the display and control module (4)
To remove the display carrier and the Keys and LEDs B 42 circuit board:
◗
Loosen the PT screws (PT Z30x8 WN 5411 and socket head screw DIN 912 M3x6) from the Display
carrier.
◗
Carefully lift the Display carrier up. Take care to avoid damaging the cable of the LCD connection B 41
or pulling out the plug.
No further dismantling of the touch screen is planned.
