S5 System • Replacing components
B 22

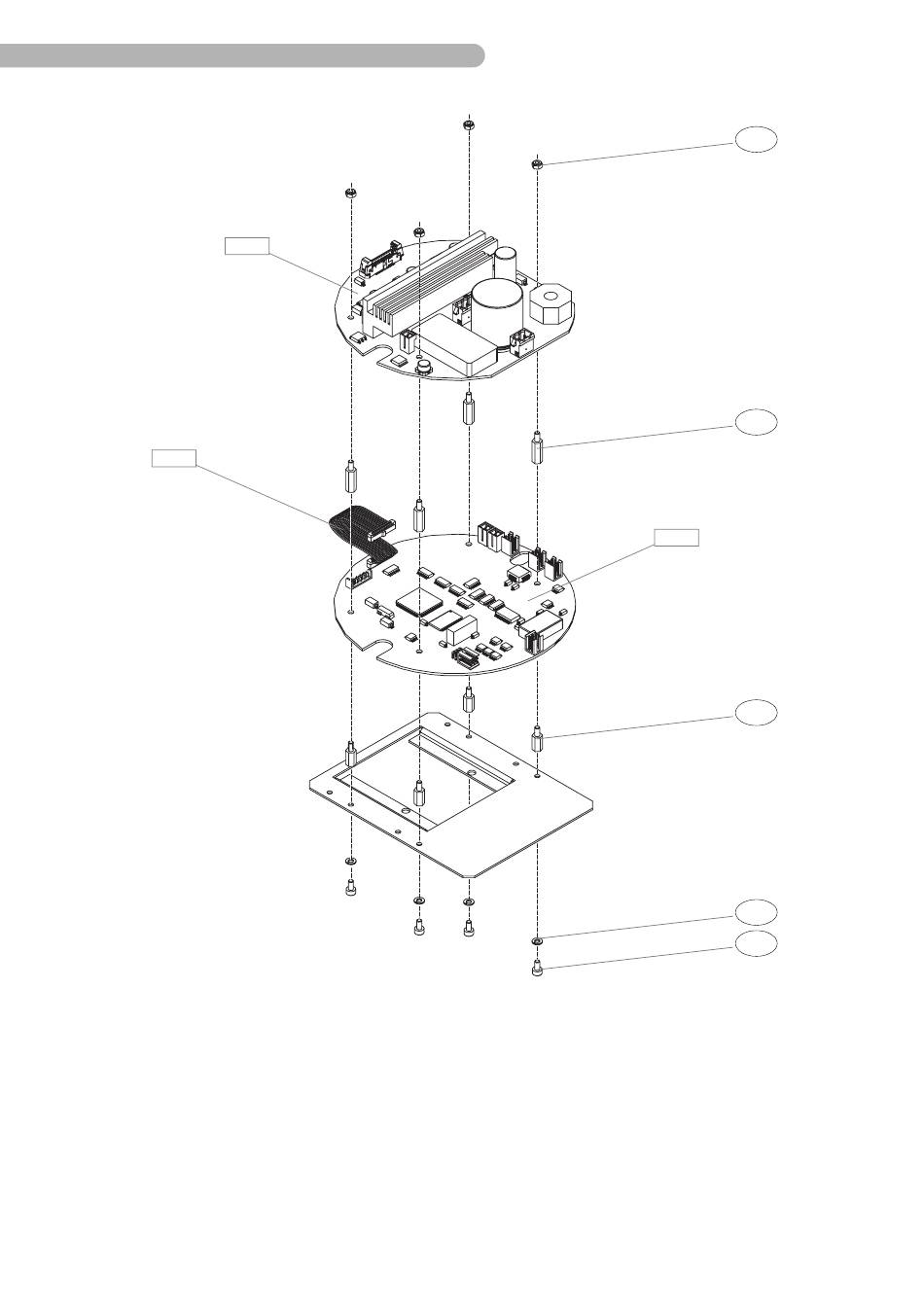

Fig. 52: Disassembly of circuit boards
For further disassembly of the RP 85:
◗
Disconnect the connector B 22 from the circuit board Motor power amplifier B 13.
◗
Loosen the four self-locking nuts a and carefully lift up the circuit board B 13.
◗
In order to separate the Motor controller B 14 circuit board from the retaining bracket, loosen the four
distance bolts b from the circuit board.
◗
Carefully lift up the circuit board B 14 from the retaining bracket.
6.16
B 13
a
b
B 14
c
d
e
