S5 System • Replacing components

Replacing the touch screen

D 31

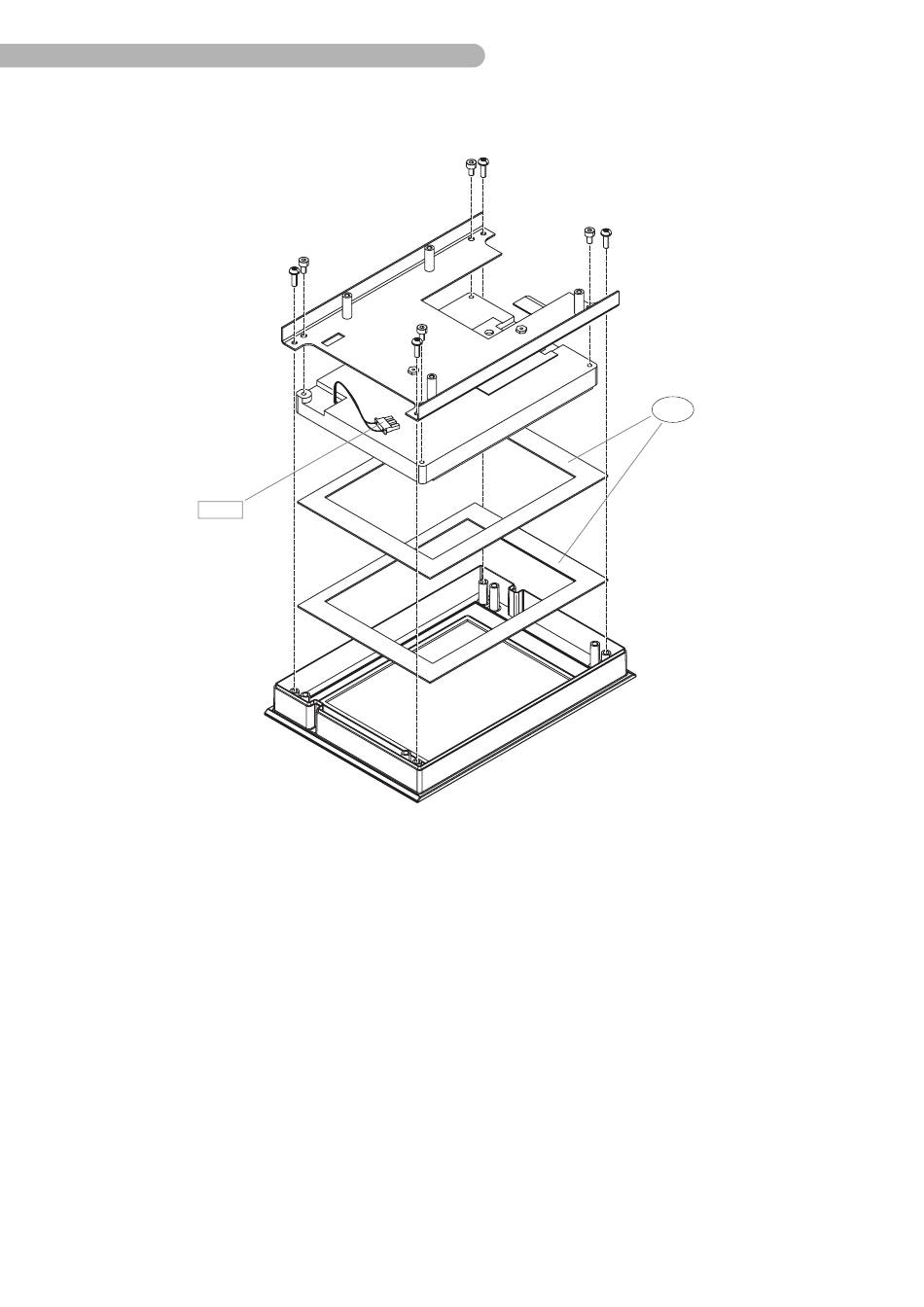

Fig. 84: Replacing the touchscreen
To remove the display carrier and the touchscreen:
◗
Loosen the socket head screws (DIN 912 M3x6 / allen key size 2.5 mm) and the PT screws (KB 30x10
WN 1411) from the Display carrier.
◗
Carefully lift the Display carrier up. Take care to avoid damaging the cable of the LCD connection D 23
or pulling out the plug.
No further dismantling of the touch screen is planned.
Install the display and control module in the reverse order.
◗
Note when assembling: It is essential that both seals a (72-102-018) for the LCD touchscreen are
refitted. Ensure that the ribbon cable is located in the depression in the seal.
6.50
a
SM-5811-0000.01 ENG
