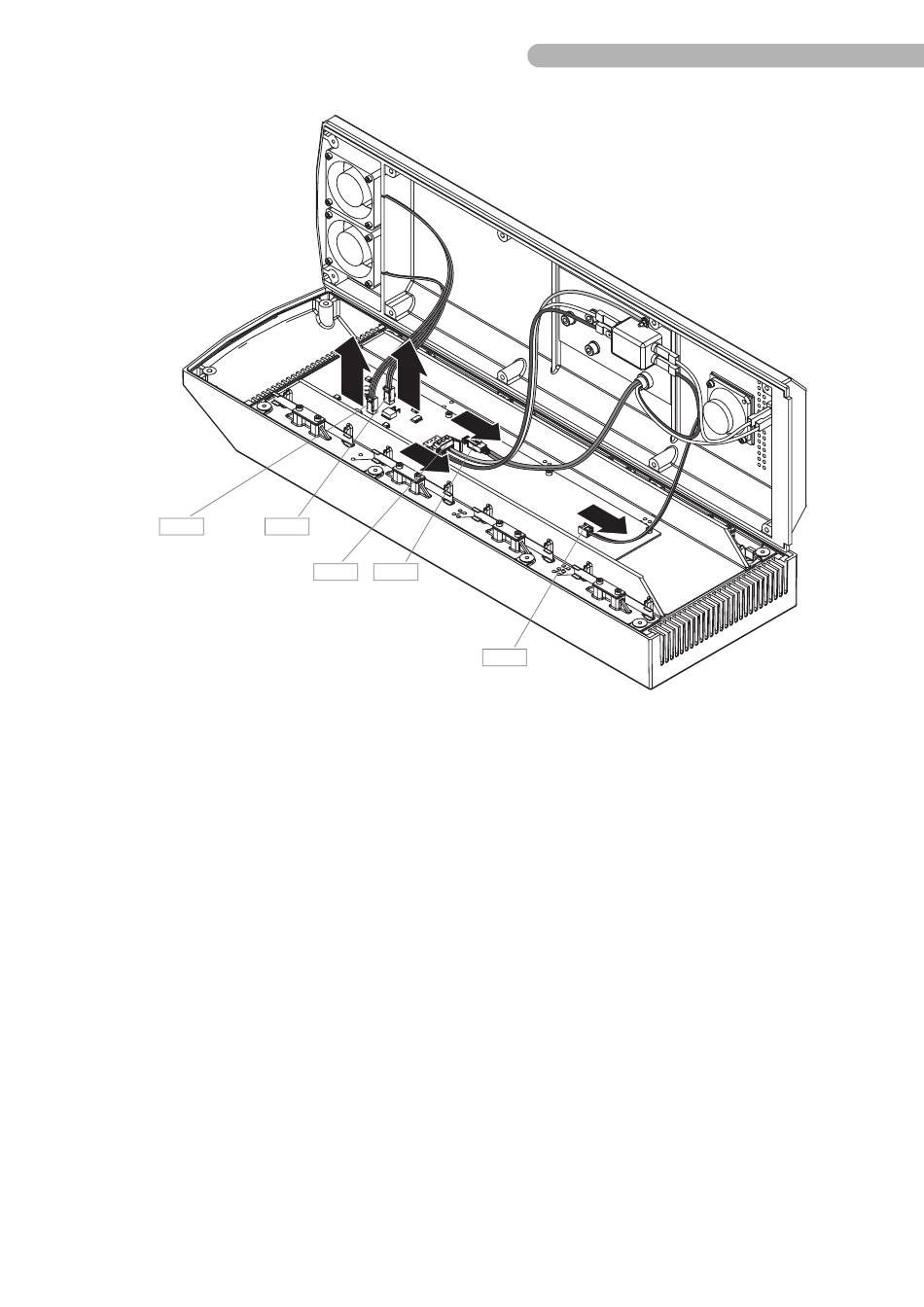

Fig. 78: Open the system panel (4)
◗
Loosen the connectors
– Connection speaker D 10
– Connection S5 System (CAN) D 11
– Connection line filter D 12
– Connection fans D 13 and D 14
◗
Open up the rear of the housing completely.
SM-5811-0000.01 ENG
D 14
D 12
D 11
D 10
S5 System • Replacing components
6.45
