S5 System • Replacing components
G 6
G 5

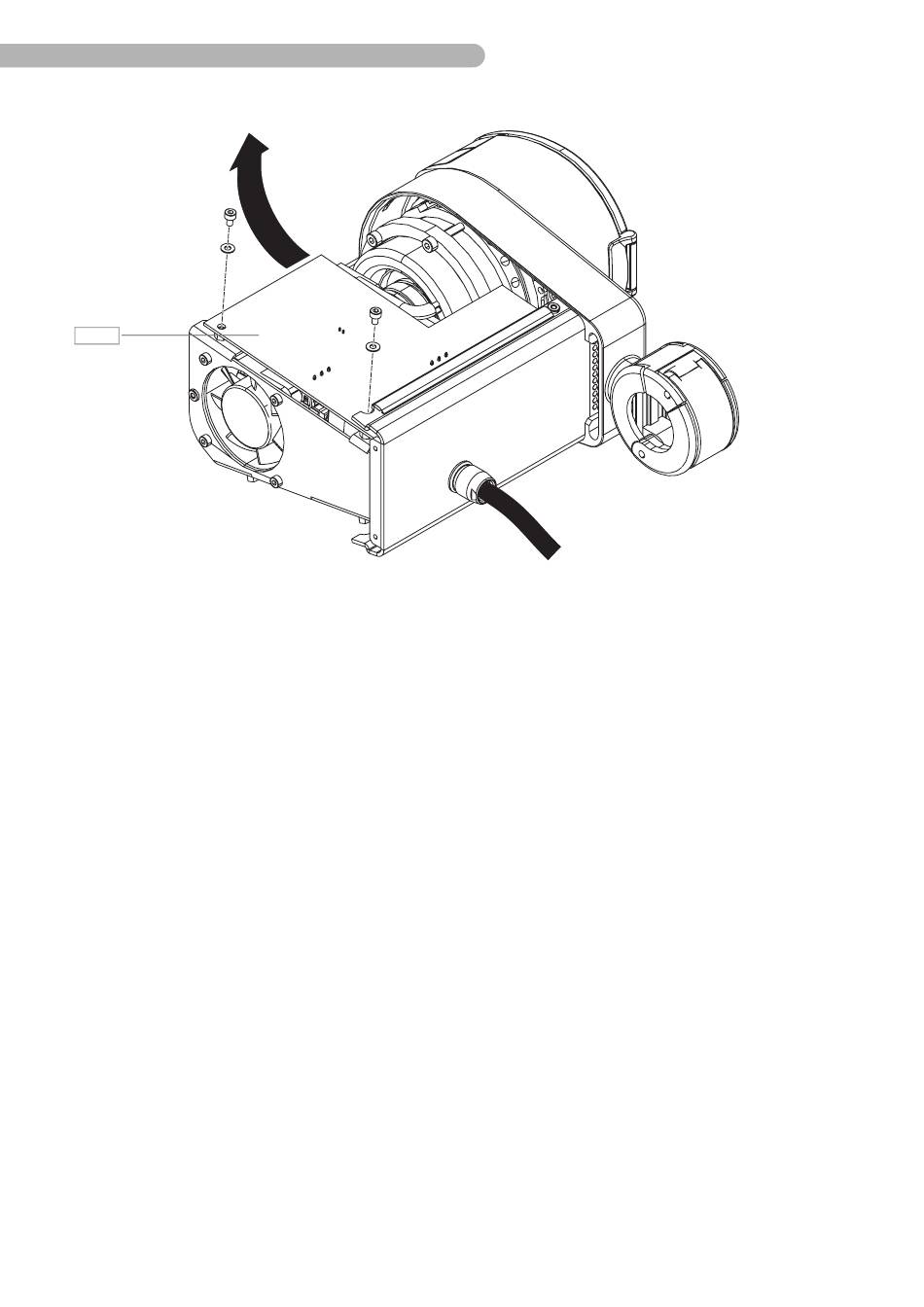

Fig. 70: Replacing the circuit board HME 0402 (2)
◗
Rotate the pump.
◗
Remove the two head socket screws shown above (DIN 912 M3x6 / allen key size 2.5 mm), including
washers (DIN 125 A 3.2).
Warning: The circuit board cannot be removed completely, because the connections on the circuit board
must be disconnected first!
6.38
SM-5811-0000.01 ENG
