S5 System • System description
3.3.4 Assembly overview – System panel

System panel (4 pos.)

D 1
D 5
D 9
D 10

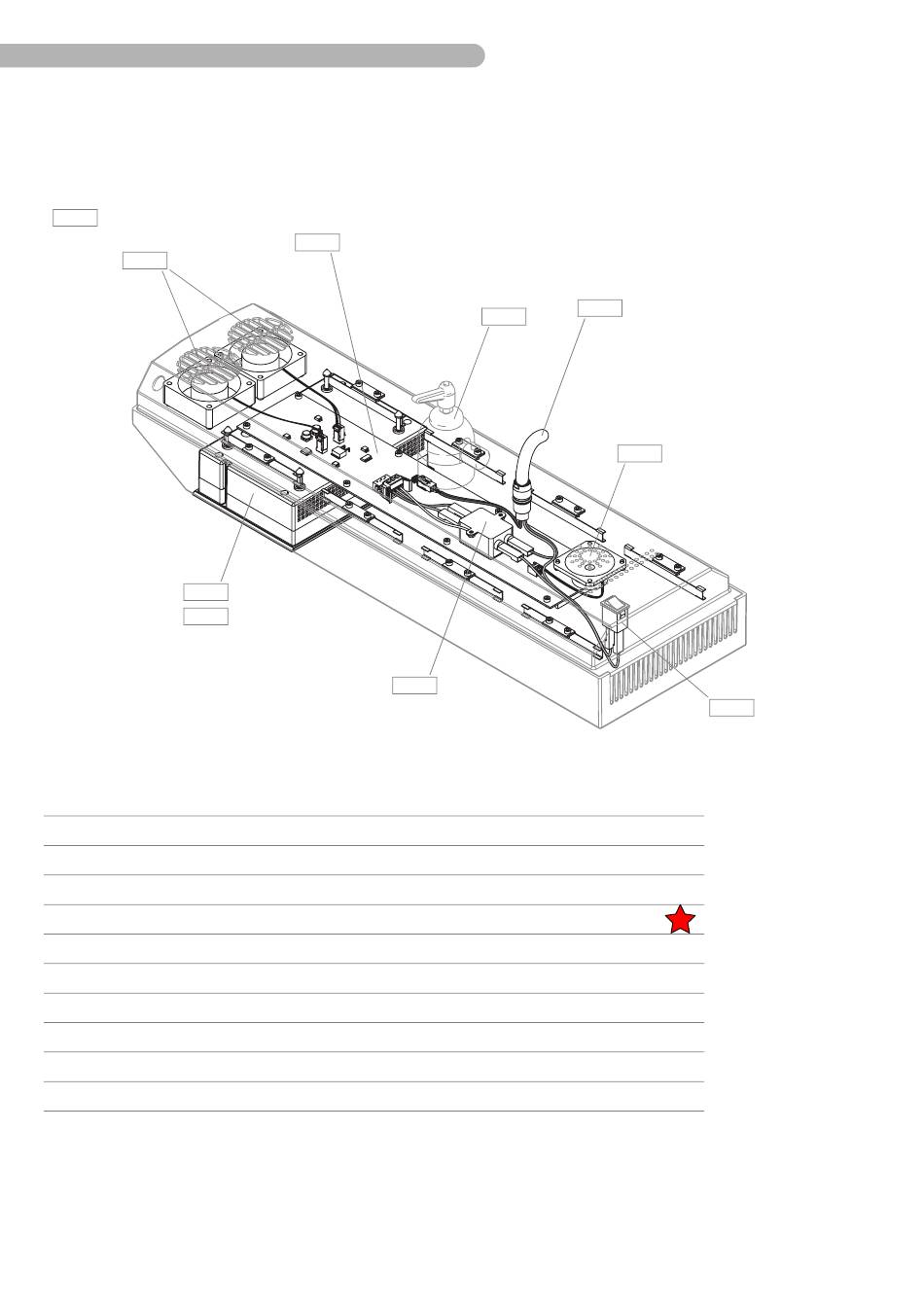

Fig. 15: Assembly overview – System panel (4 pos.)
Item Name
D 1 S5 system panel, 4 pos.
D 2 Backplane system panel
D 3 Mast joint holder (not shown here)
D 4 Connection cable
D 5 Toggle switch 1-pole
D 6 Line filter
D 7 Speaker
D 8
Fan - SmartCooler
D 9 S5 display and control module
D 10 Circuit board display and control module
3.26
D 1
D 6
Number
HDB 0406
Type 1801
FN332Z-10-05
LFX1460E
HDS 0407
D 4
D 3
D 7
Part Number
28-95-00
90-305-740
55-90-56
97-103-625
96-121-209
96-250-042
97-103-669
96-406-030
28-95-10
90-305-750
D 5
SM-5811-0000.01 ENG
