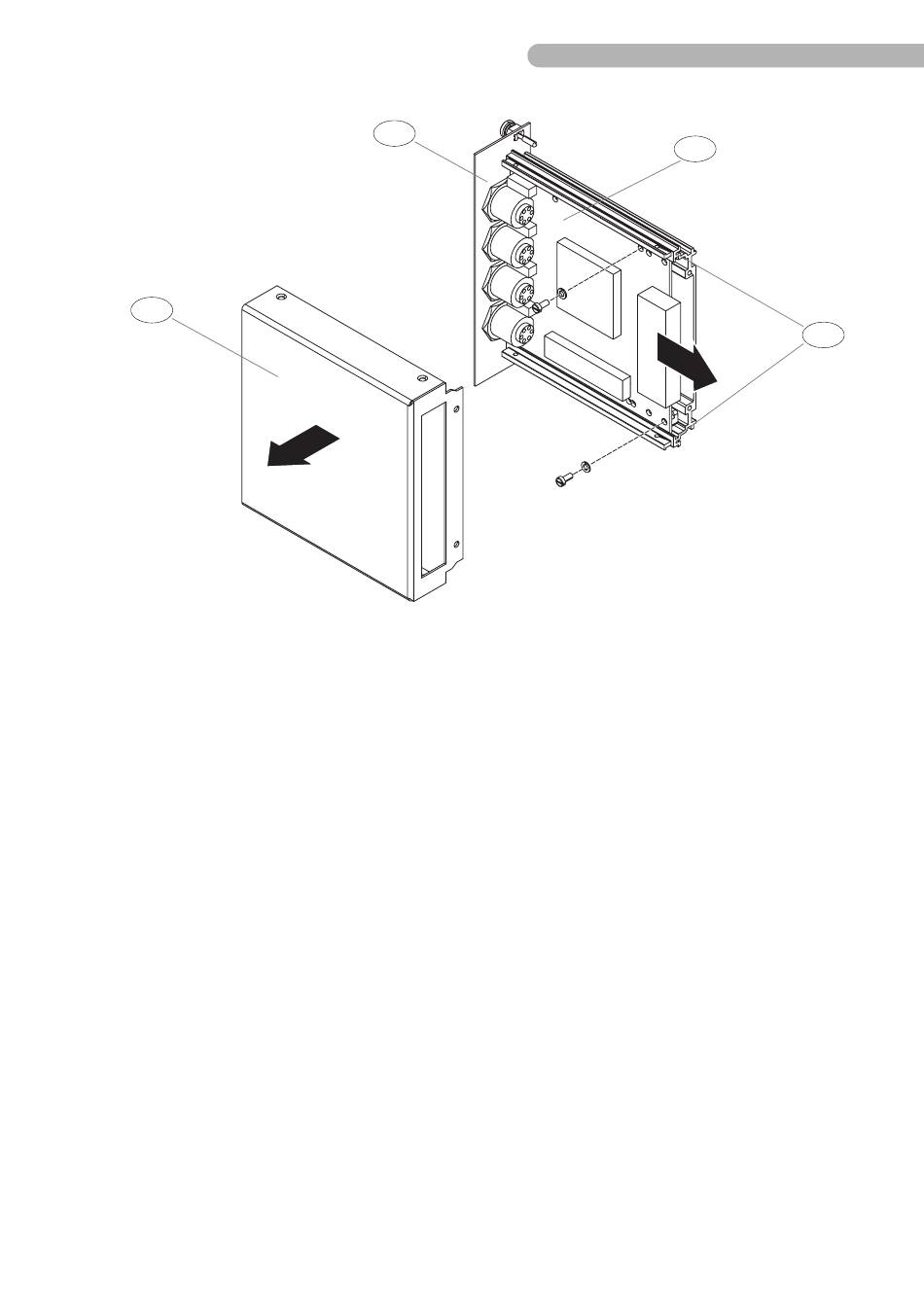

Fig. 94: Replacing sensor boards (2)
◗
Detach the cover a.
◗
Loosen all connectors between the back of the front plate b and the sensor board c.
◗
Remove both screws on the sensor board.
◗
Carefully pull the sensor board out of the guide rail d.
◗
Replace the sensor board.
The sensor boards can only be replaced as a complete unit.
Installation is carried out by reversing this sequence. Ensure the boards are not tilted.
For further information about assembly material and the part numbers of the relevant sensor modules,
refer to the section entitled „Assembly Sensor modules" on page 7.29.
