6.3 Mast roller pump MRP150

6.3.1

Opening the pump housing

F 3
F 12

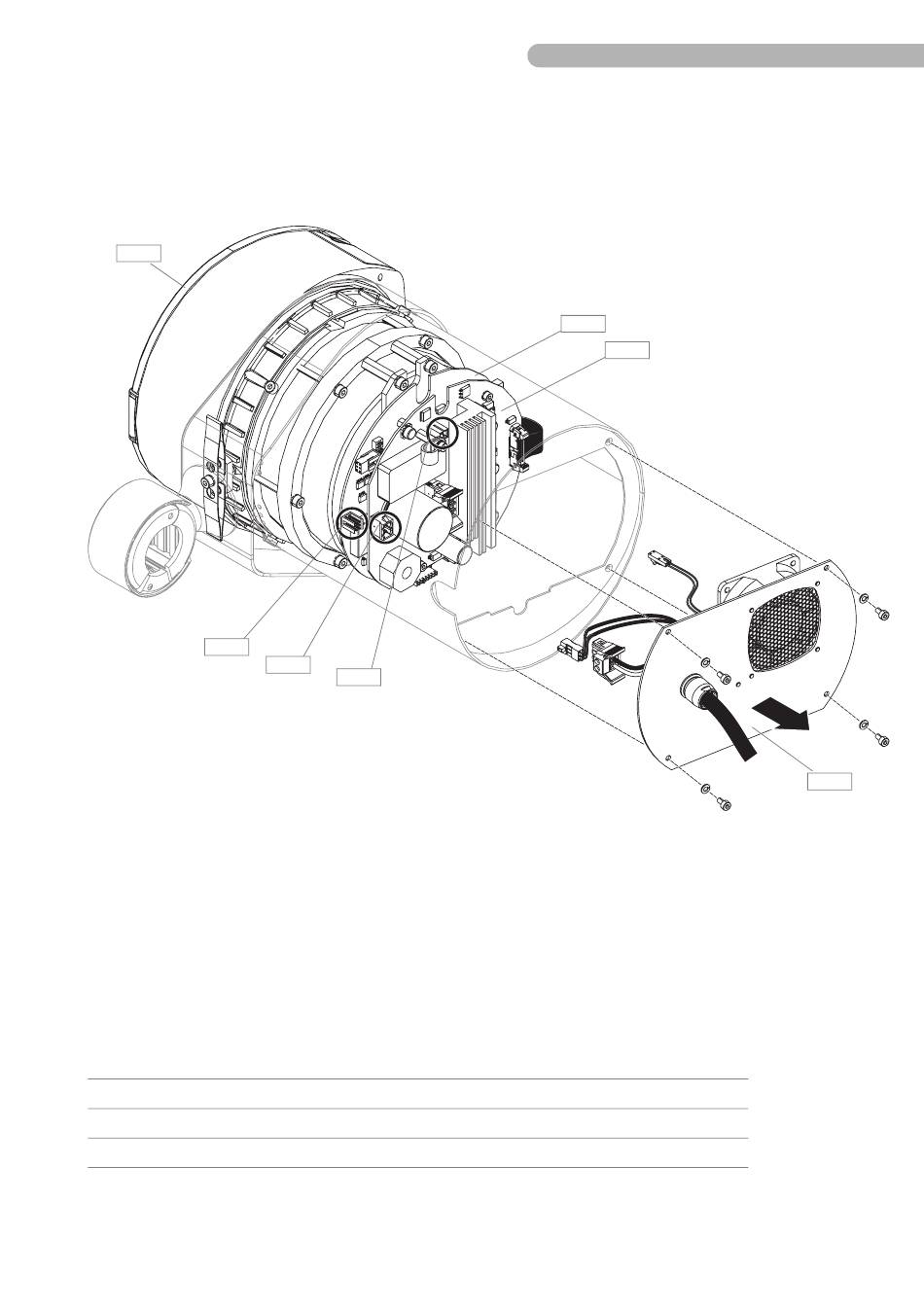

Fig. 62: Removing the base plate
◗
If necessary, remove the pump cover F 3.
◗
Carefully lay the pump on its side.
◗
Remove the four socket head screws shown above (DIN 912 M3x6 / allen key size 2.5 mm), including
the spring washers (DIN 127 B3) on the base plate F 9.
Warning: The base plate cannot be removed completely, because the connections between base
plate and circuit boards must be disconnected first!
◗
Disconnect the following connectors from the circuit boards F 5 (Circuit board Motor power amplifier)
and F 4 (Circuit board Motor controller):
Item Name
F 10 Connection line filter (on F 5)
F 11 Connection fan (on F 5)
F 12 Connection control cable (on F 4)
SM-5811-0000.01 ENG
F 10
F 11
F 4
F 5
Number Part Number
CON 2
CON 4
CON 2
S5 System • Replacing components
F 9
6.29
